Product Details:
Payment & Shipping Terms:
|
| Type: | KOMATSU Hydraulic Pump Parts | Part Name: | Pump Assy |
|---|---|---|---|
| Model Number: | PC200 PC210 PC220 PC240 | Part Number: | 704-24-28230 7042428230 |
| Packing: | Standard Export Carton | Warranty Time: | 6/12 MONTHS |
| High Light: | 7042428230 Pump Assy,PC210 Pump Assy,PC240 Pump Assy |
||

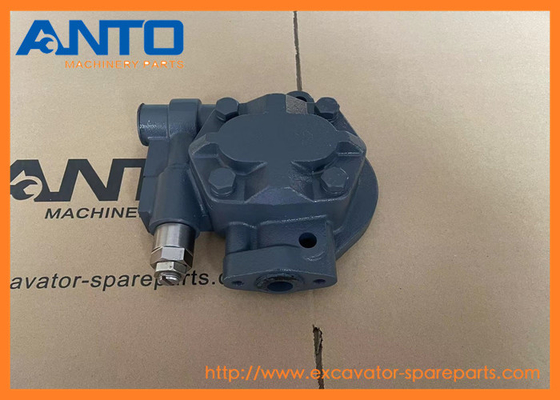

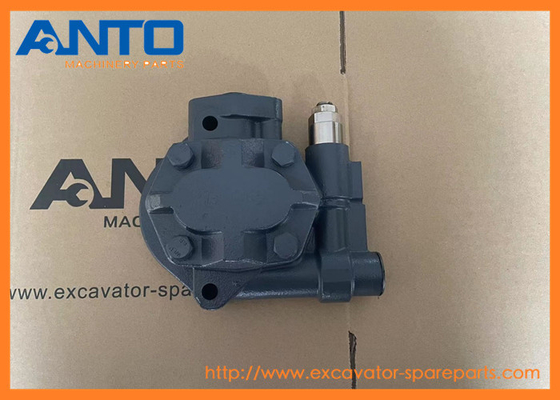

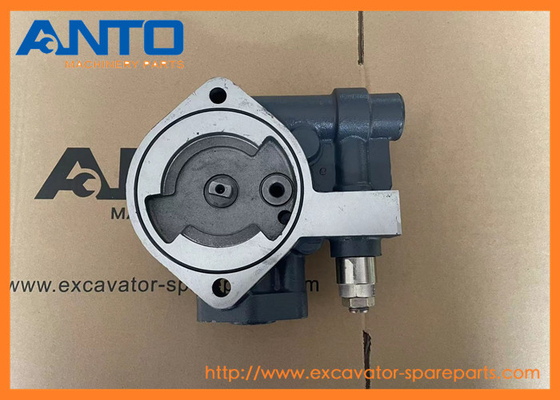

704-24-28230 7042428230 Pump Assy For KOMATSU Excavator PC200 PC210 PC220 PC240
Specification
| Product name | Hydraulic pump |
| Part number | 704-24-28230 7042428230 |
| Model | PC200 PC210 PC220 PC240 |
| Category group | Excavator KOMATSU Hydraulic Pump Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
EXCAVATORS PC200 PC210 PC220 PC240
MOBILE CRUSHERS AND RECYCLERS BR200 BR200J BR200R BR200S BR300J BR310JG
WHEEL DOZERS WD900
WHEEL LOADERS WA700 WA800 WA800L WA900 WA900L Komatsu
| KBB591A-10003 PUMP SEAL KIT |
| FB10/14EX, FB10/14EXF, FB10M, FB13M, FB15/18EX, FB15/18EXF, FB15/18EXG, FB15/18EXGF, FB15M, FB18M, FB20/25EX, FB20/25EXF, FB20/25EXG, FB20/25EXGF, FB20HB/25HB, FB30, FB30EX |
| 6754-71-1110 PUMP ASSEMBLY, FUEL INJECTION |
| D51EX/PX, PC220LL, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320PZ, WA380 |
| 708-25-01150 PUMP SUB ASS'Y |
| PC240 |
| DK104300-0500 PUMP ASS'Y |
| 2D94 |
| DK104300-0700 PUMP ASS'Y |
| 2D94 |
| 708-25-01054 PUMP ASS'Y |
| BP500, PC220 |
| 708-3M-01016 PUMP SUB ASS'Y |
| PC160 |
| 708-3M-01012 PUMP SUB ASS'Y |
| PC160 |
| DK101069-9420 PUMP ASS'Y |
| 6D95L, S6D95L |
| 708-2L-00260 PUMP ASS'Y,(SEE FIG. Y1600-01A0) |
| PC228, PC228US |
| 705-34-36240 PUMP ASS'Y,(SAR(3)63) |
| WA500, WD500, WF550, WF550T |
| DK103066-8390 PUMP ASS'Y |
| SA6D170 |
| KBB591A-10004 PUMP SEAL KIT |
| FB10/14EX, FB10/14EXF, FB10M, FB13M, FB15/18EX, FB15/18EXF, FB15/18EXG, FB15/18EXGF, FB15M, FB18M, FB20/25EX, FB20/25EXF, FB20/25EXG, FB20/25EXGF, FB20HB/25HB, FB30, FB31EX |
| 6754-71-1111 PUMP ASSEMBLY, FUEL INJECTION |
| D51EX/PX, PC220LL, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320PZ, WA381 |
| 708-25-01151 PUMP SUB ASS'Y |
| PC241 |
| DK104300-0501 PUMP ASS'Y |
| 2D95 |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
| Pos. | Part No | Qty | Parts name | Comments |
| G-1. | 20Y-60-X1261 | [1] | PUMP GROUP Komatsu China | |
| ["SN: 45001-UP"] | ||||
| [-1] | ==================== Komatsu China | |||
| |$$2. | ||||
| 708-25-04051 | [1] | PUMP ASS'Y Komatsu China | 117 kg. | |
| ["SN: 57619-UP"] analogs:["7082504014", "7082504012", "R7082504051"] |$2. | ||||
| 708-25-04014 | [1] | PUMP ASS'Y Komatsu | 215 kg. | |
| ["SN: 45001-57618"] analogs:["7082504051", "7082504012"] |$3. | ||||
| 708-25-04013 | [1] | PUMP ASS'Y Komatsu | 215 kg. | |
| ["SN: (47761-50715)"] analogs:["7082504051", "7082504014", "7082504012"] |$4. | ||||
| 708-25-04012 | [1] | PUMP ASS'Y Komatsu | 215 kg. | |
| ["SN: (45001-47760)"] analogs:["7082504051", "7082504014"] |$5. | ||||
| 1. | 708-25-04151 | [1] | PUMP SUB ASS'Y Komatsu China | |
| ["SN: 57619-UP"] | ||||
| 1. | 708-25-04112 | [1] | PUMP SUB ASS'Y Komatsu China | |
| ["SN: 45001-57618"] | ||||
| 1. | 708-25-04111 | [1] | PUMP SUB ASS'Y Komatsu China | |
| ["SN: (45001-50715)"] analogs:["7082504112"] | ||||
| 2. | 704-24-28230 | [1] | PUMP ASS'Y Komatsu | 7.974 kg. |
| ["SN: 45001-UP"] | ||||
| 3. | 708-25-04311 | [1] | RELIEF VALVE ASS'Y Komatsu | 0.303 kg. |
| ["SN: 45001-UP"] | ||||
| 4. | 01010-31260 | [2] | BOLT Komatsu China | 0.069 kg. |
| ["SN: 45001-UP"] analogs:["0101061260", "01010E1260"] | ||||
| 5. | 01643-31232 | [2] | WASHER Komatsu | 0.027 kg. |
| ["SN: 45001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 6. | 708-25-19220 | [1] | TEE Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 7. | 07040-11007 | [1] | PLUG Komatsu | 0.014 kg. |
| ["SN: 45001-UP"] | ||||
| 8. | 07002-01023 | [1] | O-RING Komatsu China | 0.025 kg. |
| ["SN: 45001-UP"] analogs:["0700211023"] | ||||
| 9. | 07002-02434 | [1] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 45001-UP"] analogs:["0700212434", "0700213434"] | ||||
| 10. | 07002-02034 | [1] | O-RING Komatsu China | 0.94 kg. |
| ["SN: 45001-UP"] analogs:["0700002034", "0700212034", "0700012034"] | ||||
| 11. | 07102-20404 | [1] | HOSE Komatsu OEM | 0.86 kg. |
| ["SN: 45001-UP"] analogs:["0710030404", "0710020404"] | ||||
| 12. | 07235-10422 | [1] | ELBOW Komatsu | 0.195 kg. |
| ["SN: 45001-UP"] | ||||
| 13. | 708-25-19120 | [1] | FLANGE Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 14. | 720-68-15240 | [1] | FILTER Komatsu | 0.003 kg. |
| ["SN: 45001-UP"] | ||||
| 15. | 07000-02021 | [1] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 45001-UP"] analogs:["0700012021"] | ||||
| 16. | 01010-30820 | [2] | BOLT Komatsu | 0.013 kg. |
| ["SN: 45001-UP"] analogs:["01010E0820"] | ||||
| 17. | 01643-50823 | [2] | WASHER Komatsu | 0.01 kg. |
| ["SN: 45001-UP"] analogs:["0164370823"] | ||||
| 18. | 708-25-04521 | [1] | SERVO VALVE ASS'Y,FRONT Komatsu | 13 kg. |
| ["SN: 47761-UP"] | ||||
| 18. | 708-25-04520 | [1] | SERVO VALVE ASS'Y,FRONT Komatsu | 13 kg. |
| ["SN: 45001-47760"] analogs:["7082504521"] | ||||
| 19. | 708-25-04613 | [1] | SERVO VALVE ASS'Y,REAR Komatsu | 17.9 kg. |
| ["SN: 47761-UP"] analogs:["7082504612"] | ||||
| 19. | 708-25-04612 | [1] | SERVO VALVE ASS'Y,REAR Komatsu | 17.9 kg. |
| ["SN: 45001-47760"] analogs:["7082504613"] | ||||
| 20. | 706-46-53260 | [2] | PLUG Komatsu | 0.03 kg. |
| ["SN: 45001-UP"] | ||||
| 21. | 07002-01423 | [2] | O-RING Komatsu China | 0.001 kg. |
| ["SN: 45001-UP"] analogs:["0700211423"] | ||||
| 22. | 708-25-19140 | [1] | TUBE Komatsu | 0.15 kg. |
| ["SN: 45001-UP"] | ||||
| 23. | 706-46-53180 | [2] | BOLT,EYE Komatsu | 0.028 kg. |
| ["SN: 45001-UP"] | ||||
| 24. | 07000-02012 | [4] | O-RING Komatsu China | 0.001 kg. |
| ["SN: 45001-UP"] analogs:["0700012012", "7082E11790"] | ||||
| 25. | 708-25-19130 | [8] | BOLT Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 26. | 01602-00825 | [8] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: 45001-UP"] analogs:["0160220825", "0231011020", "6124613790"] | ||||
| 27. | 04020-00616 | [4] | PIN,DOWEL Komatsu | 0.004 kg. |
| ["SN: 45001-UP"] | ||||
| 28. | 708-25-32730 | [1] | COUPLING Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 29. | 704-28-02710 | [1] | O-RING Komatsu | 0.002 kg. |
| ["SN: 45001-UP"] | ||||
