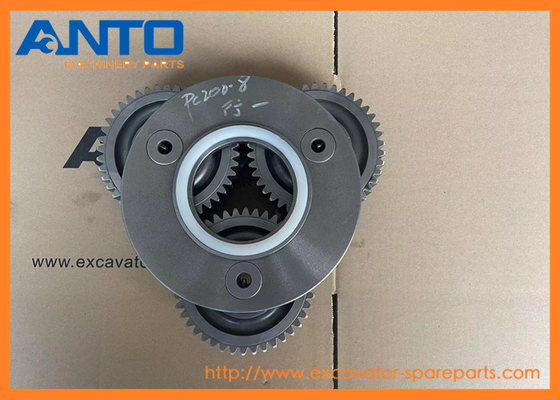

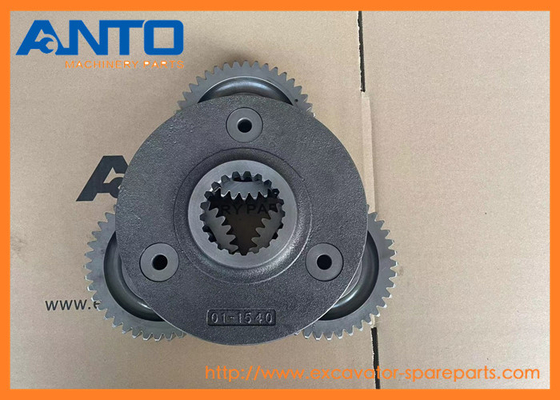

• 20Y-27-22160 20Y2722160 Carrier Support For KOMATSU HB205 HB215 PC100L PC200 PC200CA

• ​Specification

• Compatible models

CRAWLER STABILIZERS CS360 CS360SD
EXCAVATORS HB205 HB215 PC100L PC200 PC200CA PC200SC PC200Z PC210 PC220 PC228

PC228US PC228UU PC230 PC240
MOBILE CRUSHERS AND RECYCLERS BR200J BR200S BR200T BR250RG BR300J BR310JG BR350JG Komatsu

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-00560	[2]	Final Drive Assembly Komatsu	370 kg.
			["SN: 350199-UP"] |$0.
	20Y-27-00110	[1]	Floating Seal Assembly Komatsu OEM	2.65 kg.
			["SN: 350199-UP"] |$1.
3.	20Y-27-42520	[1]	Hub Komatsu	0.000 kg.
			["SN: 350199-UP"]
4.	20Y-27-41260	[2]	Bearing Komatsu	4.5 kg.
			["SN: 350199-UP"]
5.	20Y-27-22280	[1]	O-ring Komatsu China	0.02 kg.
			["SN: 350199-UP"]
6.	20Y-27-41190	[1]	Nut, Lock Komatsu	3 kg.
			["SN: 350199-UP"]
7.	20Y-27-41180	[1]	Lock Komatsu	0.04 kg.
			["SN: 350199-UP"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 350199-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	20Y-27-42540	[1]	Carrier Komatsu China
			["SN: 350199-UP"]
10.	20Y-27-22140	[4]	Gear Komatsu China	3.72 kg.
			["SN: 350199-UP"]
11.	20Y-27-22220	[4]	Bearing Komatsu China	0.3 kg.
			["SN: 350199-UP"] analogs:["20Y2721270"]
12.	20Y-27-21250	[8]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 350199-UP"]
13.	20Y-27-21230	[4]	Pin Komatsu	1.54 kg.
			["SN: 350199-UP"]
14.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 350199-UP"]
15.	20Y-27-13310	[1]	Washer, Thrust Komatsu China	0.08 kg.
			["SN: 350199-UP"]
16.	20Y-27-22130	[1]	Gear Komatsu China	1.75 kg.
			["SN: 350199-UP"]
17.	20Y-27-22240	[1]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 350199-UP"]
18.	20Y-27-22151	[1]	Gear Komatsu	43.7 kg.
			["SN: 350199-UP"] analogs:["20Y2722150"]
19.	20Y-27-22160	[1]	Carrier Komatsu OEM	6 kg.
			["SN: 350199-UP"]
20.	20Y-27-22120	[3]	Gear Komatsu China	2.5 kg.
			["SN: 350199-UP"]
21.	20Y-27-22210	[3]	Bearing Komatsu China	0.12 kg.
			["SN: 350199-UP"] analogs:["20Y2721260"]
22.	20Y-27-21240	[6]	Washer, Thrust Komatsu China	0.02 kg.
			["SN: 350199-UP"]
23.	20Y-27-21220	[3]	Pin Komatsu China	0.411 kg.
			["SN: 350199-UP"]
24.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 350199-UP"]
25.	20Y-27-42510	[1]	Shaft Komatsu OEM	0.000 kg.
			["SN: 350199-UP"]
26.	20Y-27-21310	[1]	Washer Komatsu China	0.17 kg.
			["SN: 350199-UP"]
27.	20Y-27-42530	[1]	Cover Komatsu China
			["SN: 350199-UP"]
28.	04260-01587	[1]	Ball, Steel Komatsu	0.018 kg.
			["SN: 350199-UP"]
29.	20Y-27-13281	[18]	Bolt Komatsu	0.31 kg.
			["SN: 350199-UP"]
30.	01643-31645	[18]	Washer Komatsu	0.072 kg.
			["SN: 350199-UP"] analogs:["802170005", "0164301645"]
31.	07049-01012	[2]	Plug Komatsu	0.001 kg.
			["SN: 350199-UP"]
32.	07044-12412	[3]	Plug Komatsu	0.09 kg.
			["SN: 350199-UP"] analogs:["0704402412", "R0704412412"]
33.	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 350199-UP"] analogs:["0700202434", "0700213434"]
34.	20Y-27-11582	[1]	Sprocket Komatsu China	36.2 kg.
			["SN: 350199-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
35.	20Y-27-11561	[20]	Bolt Komatsu China	0.14 kg.
			["SN: 350199-UP"]
36	01010-61660	[36]	Bolt Komatsu	0.127 kg.
			["SN: 350199-UP"] analogs:["0101031660", "0101081660"]
38	20Y-30-21192	[2]	Cover Komatsu China
			["SN: 351329-UP"]
38	20Y-30-21191	[2]	Cover Komatsu	12.25 kg.
			["SN: 350199-351328", "SCC: A2"]
39	01010-81230	[8]	Bolt Komatsu	0.043 kg.
			["SN: 350199-UP"] analogs:["0101051230", "01010B1230"]
40	01643-31232	[8]	Washer Komatsu	0.027 kg.
			["SN: 350199-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
41	708-8F-00250	[-1]	Motor Assembly Komatsu	93 kg.
			["SN: UP"]
