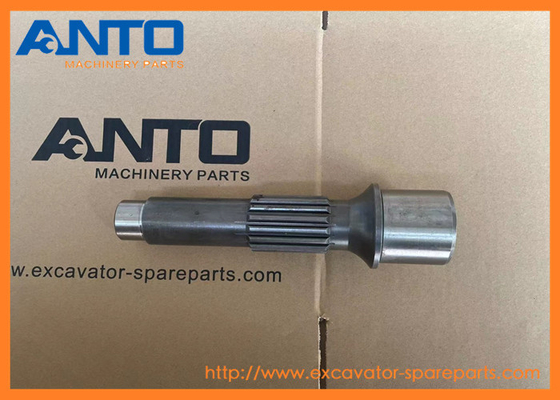

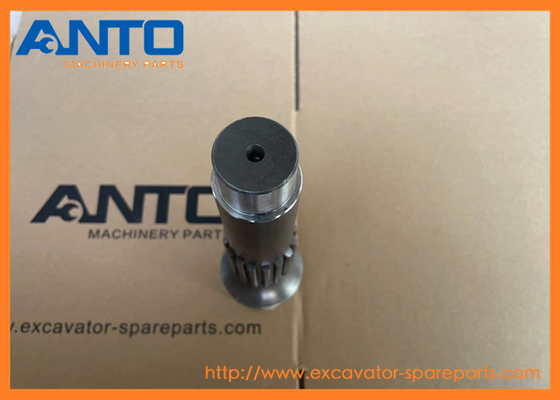

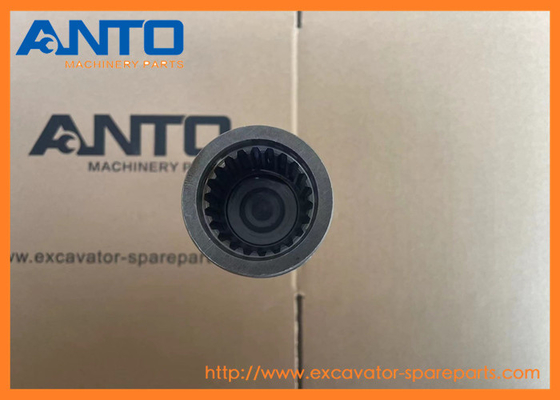

• 708-8H-32111 7088H32111 Shaft For KOMATSU Excavators Spare Parts PC100L PC200 PC210 PC220

• Specification

• Compatible models

EXCAVATORS PC100L PC200 PC210 PC220 PC230 PC240 PC250 PC250HD PC270 PC290

PC300 PC300SC PC340 PC350
MOBILE CRUSHERS AND RECYCLERS BR550JG BR580JG Komatsu

• More shaft parts fit for KOMATSU machinery

• catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	8234-27-0021	[2]	Final Drive Assembly Komatsu	600 kg.
			["SN: 1034-UP"] analogs:["8234270020"] |$0.
	708-8H-00310	[1]	Motor Assembly Komatsu China
			["SN: 1034-UP"] |$1.
1	708-8H-32111	[1]	Shaft Komatsu	2.7 kg.
			["SN: 1034-UP", "SCC: C2"]
2	708-8H-32150	[1]	Bearing Komatsu	0.57 kg.
			["SN: 1034-UP", "SCC: C2"]
3	708-8H-32140	[1]	Bearing Komatsu	0.35 kg.
			["SN: 1034-UP", "SCC: C2"]
4	708-8H-05030	[1]	Spacer Kit Komatsu	0.11 kg.
			["SN: 1034-UP", "SCC: C2"]
5	708-1F-12281	[1]	Seal, Oil Komatsu	0.1 kg.
			["SN: 1034-UP"] analogs:["7081F12280"]
6	708-8H-32160	[1]	Spacer Komatsu	0.05 kg.
			["SN: 1034-UP"]
7	04065-07825	[1]	Ring, Snap Komatsu	0.022 kg.
			["SN: 1034-UP"]
8	708-8H-33112	[1]	Cylinder Block Komatsu	6.765 kg.
			["SN: 1034-UP", "SCC: C2"]
9	708-8H-33220	[1]	Plate, Valve Komatsu	0.9 kg.
			["SN: 1034-UP", "SCC: C2"] analogs:["7088H33210"]
10	708-18-13230	[1]	Pin Komatsu	0.01 kg.
			["SN: 1034-UP", "SCC: C2"]
11	708-8H-33360	[3]	Pin Komatsu	0.01 kg.
			["SN: 1034-UP", "SCC: C2"]
12	708-8H-33141	[2]	Spacer Komatsu	0.06 kg.
			["SN: 1034-UP", "SCC: C2"]
13	708-7H-13150	[1]	Spring Komatsu	0.33 kg.
			["SN: 1034-UP", "SCC: C2"]
14	04065-06020	[1]	Ring, Snap Komatsu	0.011 kg.
			["SN: 1034-UP", "SCC: C2"]
15	708-8H-33512	[1]	Guide, Retainer Komatsu	0.23 kg.
			["SN: 1034-UP", "SCC: C2"]
16	708-8H-33340	[1]	Retainer, Shoe, Hose Komatsu	0.44 kg.
			["SN: 1034-UP", "SCC: C2"]
17	708-8H-33610	[9]	Piston Subassembly Komatsu	0.3 kg.
			["SN: 1034-UP", "SCC: C2"]
18	708-8H-33431	[1]	Cam, Rocker Komatsu	3.29 kg.
			["SN: 1034-UP", "SCC: C2"]
19	04260-02857	[2]	Ball, Retainer Komatsu	0.1 kg.
			["SN: 1034-UP", "SCC: C2"]
20	708-8H-34190	[1]	Piston Komatsu China
			["SN: 1034-UP"] analogs:["7088H34143"]
21	708-8H-34151	[1]	Spring Komatsu China
			["SN: 1034-UP"]
22	708-8K-14210	[1]	Plug Komatsu China
			["SN: 1034-UP"]
23	07002-13334	[1]	O-ring Komatsu China	0.025 kg.
			["SN: 1034-UP"] analogs:["0700203334"]
24	708-8H-35130	[4]	Plate Komatsu	0.16 kg.
			["SN: 1034-UP", "SCC: C2"]
25	708-8H-35120	[3]	Disc Komatsu China
			["SN: 1034-UP", "SCC: C2"]
26	708-8H-35141	[1]	Piston, Brake Komatsu China
			["SN: 1034-UP", "SCC: C2"]
27	07000-15175	[1]	O-ring Komatsu China	0.03 kg.
			["SN: 1034-UP", "SCC: C2"] analogs:["0700005175"]
28	07001-05175	[1]	Ring, Back-up Komatsu China
			["SN: 1034-UP", "SCC: C2"]
29	07000-15195	[1]	O-ring Komatsu China	0.038 kg.
			["SN: 1034-UP", "SCC: C2"] analogs:["0700005195"]
30	07001-05195	[1]	Ring, Back-up Komatsu	0.016 kg.
			["SN: 1034-UP", "SCC: C2"]
31	708-8H-35150	[1]	Spring Komatsu China
			["SN: 1034-UP", "SCC: C2"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
