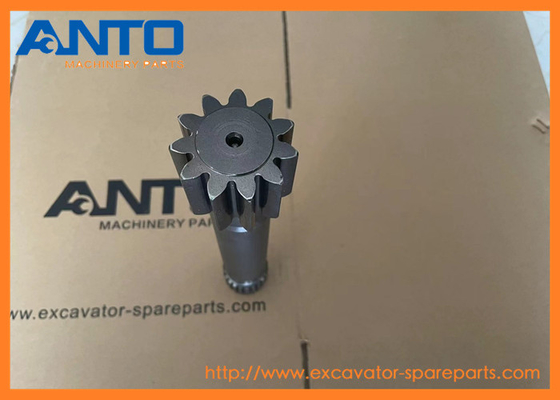

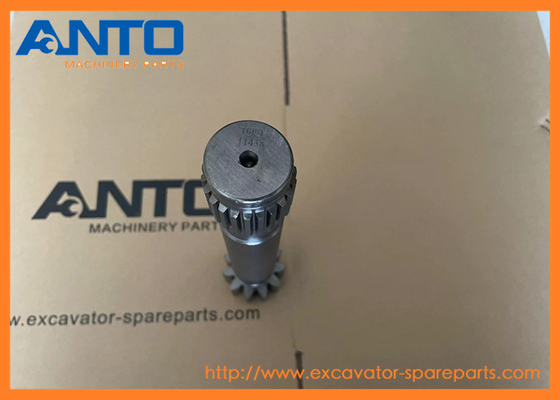

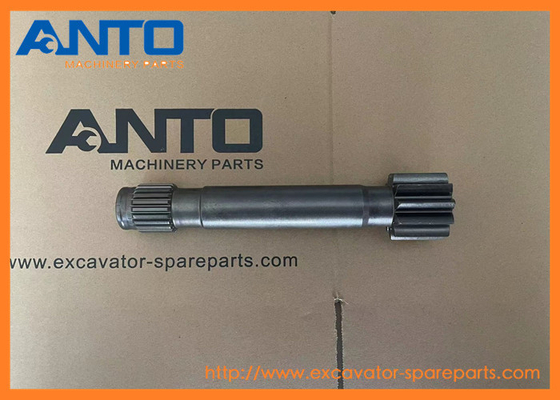

• 207-27-63110 2072763110 Shaft For KOMATSU Excavators Spare Parts PC250 PC270 PC290 PC300

• Specification

• Compatible models

EXCAVATORS PC250 PC270 PC290 PC300 PC300SC PC340 PC350
MOBILE CRUSHERS AND RECYCLERS BR550JG BR580JG Komatsu

• More shaft parts fit for KOMATSU machinery

• catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	207-27-00160	[2]	FINAL DRIVE ASS Komatsu	684 kg.
			["Field_1: J10118-"] |$1.
1.	708-8H-00270	[1]	MOTOR ASS'Y Komatsu	181.4 kg.
			["Field_1: J10118-"]
	170-27-00025	[1]	FLOATING SEAL A Komatsu OEM	3.72 kg.
			["Field_1: J10118-"] analogs:["2072700310", "1702700024", "4233300021"] |$3.
2	170-27-00115	[1]	SEAL RING ASS'Y Komatsu OEM	3.425 kg.
			["Field_1: J10118-"] analogs:["1702700114"]
3	170-27-00120	[1]	O-RING SET Komatsu	0.31 kg.
			["Field_1: J10001-"] analogs:["1952700150"]
4.	207-27-63190	[1]	HUB Komatsu	121.55 kg.
			["Field_1: J10118-"]
5.	207-27-63220	[2]	BEARING Komatsu	7.8 kg.
			["Field_1: J10118-"]
6.	207-27-51292	[1]	COVER Komatsu	8.2 kg.
			["Field_1: J10118-"] analogs:["2072751291"]
7.	01010-81030	[16]	BOLT Komatsu OEM	0.03 kg.
			["Field_1: J10118-"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
8.	01643-31032	[16]	WASHER Komatsu	0.054 kg.
			["Field_1: J10001-"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
9.	207-27-63240	[1]	O-RING Komatsu	0.03 kg.
			["Field_1: J10118-"]
10.	207-27-61270	[1]	LOCK Komatsu	0.07 kg.
			["Field_1: J10001-"]
11.	207-27-61261	[1]	LOCK NUT Komatsu	7.3 kg.
			["Field_1: J10118-"]
12.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["Field_1: J10118-"] analogs:["801014093", "0101051020", "801015108"]
13.	207-27-63170	[1]	CARRIER Komatsu	31.4 kg.
			["Field_1: J10118-"]
14.	207-27-63140	[4]	GEAR Komatsu China
			["Field_1: J10118-"]
15.	207-27-63210	[4]	BEARING Komatsu OEM	0.6 kg.
			["Field_1: J10118-"]
16.	20Y-27-21250	[8]	THRUST WASHER Komatsu China	0.03 kg.
			["Field_1: J10118-"]
17.	207-27-63230	[4]	PIN Komatsu OEM	1.68 kg.
			["Field_1: J10118-"]
18.	20Y-26-21330	[4]	PIN Komatsu China	0.1 kg.
			["Field_1: J10118-"]
19.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["Field_1: J10001-"]
20.	207-27-63130	[1]	GEAR Komatsu	2.54 kg.
			["Field_1: J10118-"]
21.	207-27-63150	[1]	GEAR Komatsu	59 kg.
			["Field_1: J10118-"]
22.	207-27-63250	[1]	WASHER Komatsu	0.05 kg.
			["Field_1: J10118-"]
23.	207-27-63160	[1]	CARRIER Komatsu	8.9 kg.
			["Field_1: J10118-"]
24.	207-27-63120	[3]	GEAR Komatsu	3.9 kg.
			["Field_1: J10118-"]
25.	207-27-61220	[3]	BEARING Komatsu China	0.74 kg.
			["Field_1: J10001-"]
26.	20Y-27-21240	[6]	THRUST WASHER Komatsu China	0.02 kg.
			["Field_1: J10001-"]
27.	207-27-61240	[3]	PIN Komatsu China	2.49 kg.
			["Field_1: J10001-"]
28.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["Field_1: J10001-"]
29.	207-27-63110	[1]	SHAFT Komatsu	2.12 kg.
			["Field_1: J10118-"]
30.	20Y-27-11250	[1]	SPACER Komatsu OEM	0.044 kg.
			["Field_1: J10001-"] analogs:["2052771570"]
31.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["Field_1: J10118-"]
32.	207-27-63180	[1]	COVER Komatsu	28 kg.
			["Field_1: J10118-"]
33.	01011-61880	[20]	BOLT Komatsu	0.402 kg.
			["Field_1: J10118-"]
34.	01643-31845	[20]	WASHER Komatsu China	0.02 kg.
			["Field_1: J10001-"] analogs:["0164321845", "R0164331845"]
35.	07049-01215	[4]	PLUG Komatsu	0.001 kg.
			["Field_1: J10001-"]
36.	07044-12412	[2]	PLUG Komatsu	0.09 kg.
			["Field_1: J10001-"] analogs:["0704402412", "R0704412412"]
37.	07002-02434	[2]	O-RING Komatsu China	0.01 kg.
			["Field_1: J10001-"] analogs:["0700212434", "0700213434"]
38.	207-27-61210	[1]	SPROCKET Komatsu China	66.7 kg.
			["Field_1: J10001-"] analogs:["2072771460"]
39.	207-27-51311	[20]	BOLT Komatsu China	0.222 kg.
			["Field_1: J10001-"] analogs:["2072751310", "20727K1120", "20727K1130"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
