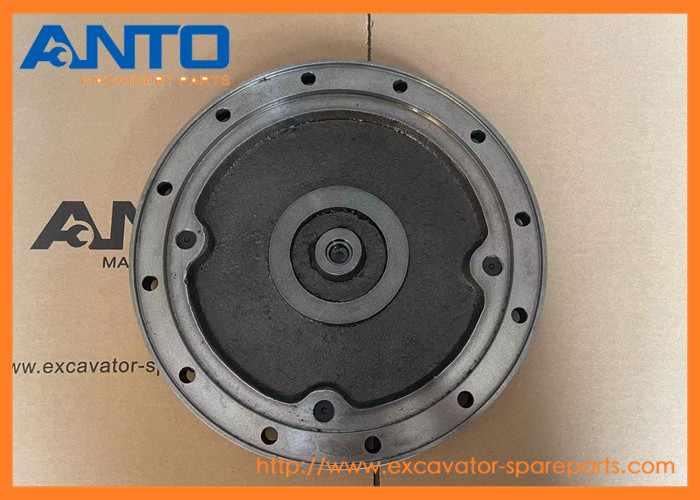

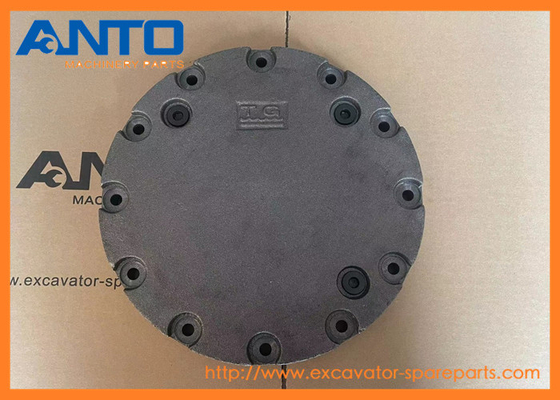

• 20Y-27-31151 20Y2731151 Cover For KOMATSU Excavators Spare Parts PC200

• Specification

• Compatible models

EXCAVATORS PC200
MOBILE CRUSHERS AND RECYCLERS BR300S Komatsu

• More Cover fit for KOMATSU machinery

• catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-00441	[2]	FINAL DRIVE ASS'Y Komatsu	394 kg.
			["SN: 251005-UP"] analogs:["2062700300", "2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700440", "20Y2700301", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] |$1.
	20Y-27-00440	[2]	FINAL DRIVE ASS'Y Komatsu	394 kg.
			["SN: 250001-251004"] analogs:["2062700300", "2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700301", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] |$2.
1.	708-8F-00211	[1]	MOTOR ASS'Y Komatsu	106 kg.
			["SN: 202230-UP"] analogs:["7088F00210"]
	20Y-27-00450	[1]	FLOATING SEAL ASS'Y Komatsu China	3.1 kg.
			["SN: 202230-UP"] |$10.
2		[2]	SEAL Komatsu China
			["SN: 202230-UP"]
4.	20Y-27-31120	[1]	HUB Komatsu	114.6 kg.
			["SN: 202230-UP"]
5.	20Y-27-31310	[2]	BEARING Komatsu	4.91 kg.
			["SN: 254782-UP"] analogs:["20Y2731130"]
5.	20Y-27-31130	[2]	BEARING Komatsu	4.91 kg.
			["SN: 250001-254781"] analogs:["20Y2731310"]
6.	20Y-27-22261	[1]	LOCK Komatsu	5.22 kg.
			["SN: 202230-UP"]
7.	20Y-27-31180	[1]	LOCK Komatsu	0.05 kg.
			["SN: 202230-UP"]
8.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["SN: 202230-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	20Y-27-22170	[1]	CARRIER Komatsu China	20.4 kg.
			["SN: 202230-UP"]
10.	20Y-27-22140	[4]	GEAR Komatsu China	3.72 kg.
			["SN: 202230-UP"]
11.	20Y-27-21270	[4]	BEARING Komatsu China	0.3 kg.
			["SN: 254782-UP"] analogs:["20Y2722220"]
11.	20Y-27-22220	[4]	BEARING Komatsu China	0.3 kg.
			["SN: 250001-254781"] analogs:["20Y2721270"]
12.	20Y-27-21250	[8]	WASHER Komatsu China	0.03 kg.
			["SN: 202230-UP"]
13.	20Y-27-31160	[4]	PIN Komatsu China	1.48 kg.
			["SN: 202230-UP"]
14.	20Y-27-21290	[4]	PIN Komatsu OEM	0.03 kg.
			["SN: 202230-UP"]
15.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["SN: 202230-UP"]
16.	20Y-27-22130	[1]	GEAR Komatsu China	1.75 kg.
			["SN: 202230-UP"]
17.	20Y-27-22240	[1]	WASHER Komatsu China	0.03 kg.
			["SN: 202230-UP"]
18.	20Y-27-31110	[1]	CARRIER Komatsu China	8.1 kg.
			["SN: 202230-UP"]
19.	20Y-27-22120	[3]	GEAR Komatsu China	2.5 kg.
			["SN: 202230-UP"]
20.	20Y-27-21260	[3]	BEARING Komatsu China	0.12 kg.
			["SN: 254782-UP"] analogs:["20Y2722210"]
20.	20Y-27-22210	[3]	BEARING Komatsu China	0.12 kg.
			["SN: 250001-254781"] analogs:["20Y2721260"]
21.	20Y-27-21240	[6]	WASHER Komatsu China	0.02 kg.
			["SN: 202230-UP"]
22.	20Y-27-21220	[3]	PIN Komatsu China	0.411 kg.
			["SN: 202230-UP"]
23.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: 202230-UP"]
24.	20Y-27-31140	[1]	SHAFT Komatsu China	1.4 kg.
			["SN: 202230-UP"] analogs:["20Y2722110"]
25.	20Y-27-21310	[1]	WASHER Komatsu China	0.17 kg.
			["SN: 202230-UP"]
26.	20Y-27-31151	[1]	COVER Komatsu	11.2 kg.
			["SN: 251005-UP"] analogs:["20Y2731150"]
26.	20Y-27-31150	[1]	COVER Komatsu	11.2 kg.
			["SN: 250001-251004"] analogs:["20Y2731151"]
27.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["SN: 202230-UP"]
28.	01010-61230	[12]	BOLT Komatsu	0.043 kg.
			["SN: 202230-UP"] analogs:["01010E1230", "0101031230"]
29.	01643-31232	[12]	WASHER Komatsu	0.027 kg.
			["SN: 202230-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
30.	07049-01012	[2]	PLUG Komatsu	0.001 kg.
			["SN: 202230-UP"]
31.	20Y-27-31190	[3]	PLUG Komatsu	0.07 kg.
			["SN: 202230-UP"]
32.	07002-52434	[3]	O-RING Komatsu China	0.02 kg.
			["SN: 202230-UP"] analogs:["0700242434", "0700052434"]
33.	20Y-27-11582	[1]	SPROCKET Komatsu China	36.2 kg.
			["SN: 202230-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
34.	20Y-27-11561	[20]	BOLT Komatsu China	0.14 kg.
			["SN: 202230-UP"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
