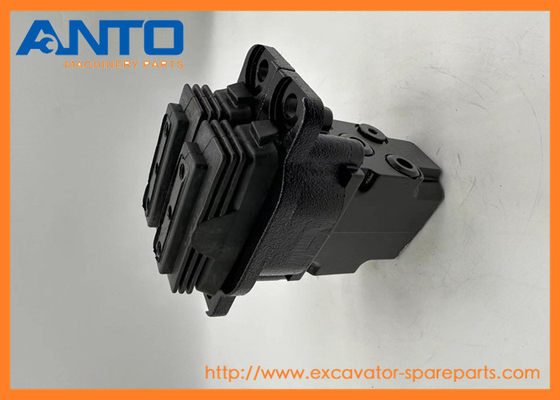

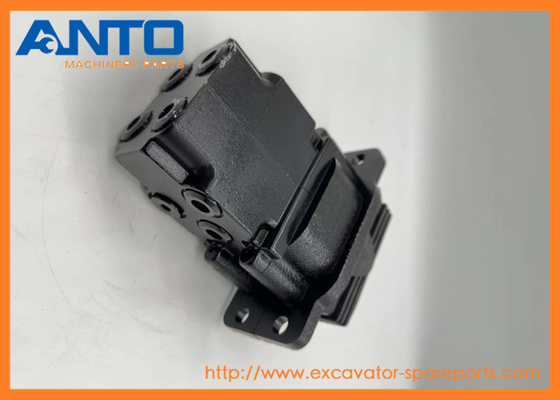

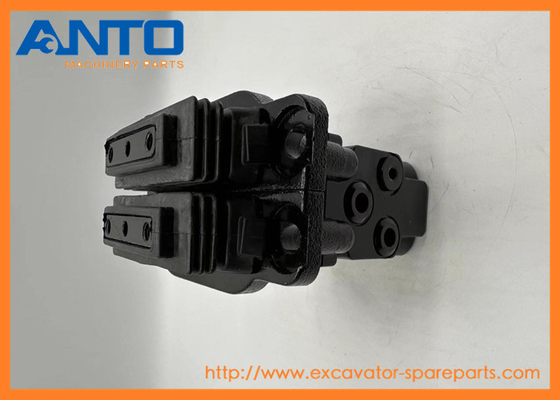

- PM30V00019F4 PM30V00019F1 Travel Pilot Control Valve KOBELCO Excavator Spare Parts For SD40SR
| Name |
Travel Pilot Control Valve |
| Parts No |
PM30V00019F4 PM30V00019F1 |
| Machine Model |
30SR-2 30SR-3 35SR-2 35SR-3 PX12 50SR-3 SD40SR |
| Category |
Pilot Valve Assembly |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
HEAVY EQUIPMENT SK40SR
LIGHT EQUIPMENT 30SR-2 30SR-3 35SR-2 35SR-3 PX12 50SR-3 SD40SR SK25SR-2 SK27SR-3 PV10 SK40SR SK45SR-2 Kobelco
- More other pilot valve parts fit for KOBELCO machine
| PA30V00002F3 PILOT VALVE |
| DOZER, SK135SRL-1E, SK135SR-1E, SK135SRLC-1E, SD40SR, 70SR-1E, 70SR-1ES, SK40SR, 80MSR-1E, SK25SR-2, SK80CS-1E, SK115SRDZ-1E, SK45SR-2 |
| |
| PA30V00002F1 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, 35SR-2, SK135SRLC-1E, SD40SR, 70SR-1E, 80MSR-1E, SK25SR-2, SK80CS-1E, SK115SRDZ-1E, SK45SR-2, SK40SR, SK13SR |
| |
| PA30V00002F2 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, 35SR-2, SK135SRLC-1E, SD40SR, 70SR-1E, 80MSR-1E, SK25SR-2, SK80CS-1E, SK45SR-2, SK115SRDZ-1E, SK40SR, SK13SR |
| |
| PA30V00002F4 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, SK135SRLC-1E, SD40SR, 70SR-1E, 80MSR-1E, 35SR-2, SK25SR-2, SK80CS-1E, SK40SR, SK45SR-2, SK115SRDZ-1E, SK13SR |
| |
| PA30V00002F5 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, SK135SRLC-1E, SD40SR, 70SR-1E, 80MSR-1E, 35SR-2, SK25SR-2, SK80CS-1E, SK40SR, SK45SR-2, SK115SRDZ-1E, SK13SR |
| |
| PM30V00019F1 PILOT VALVE |
| 30SR-2, 35SR-2, 27SR-3, SD40SR, 27SR-3 PV11, SK25SR-2, 30SR-3, SK27SR-3 PV10, 35SR-3 PV11, 35SR-3 PX12, 35SR-3 PX13, SK40SR, 35SR-3 PX14, 50SR-3, SK45SR-2 |
| |
| PV15V00002S025 PILOT VALVE |
| 27SR-5, SK025-2, 27SR, 30SR-2, 27SR BTW, 30SR, SK25SR-2, 35SR-2 |
| |
| PB30V00002F1 PILOT VALVE |
| 35SR-5 PX15-20658, 50SR, 27SR, 27SR BTW, 30SR ACERA, 35SR, SK20SR-3, 27SR-3, 27SR-3 PV11, 30SR-3, SK27SR-3, SK27SR-3 PV10, 35SR-3 PV11, SK30SR-3, 35SR-3 PX12, SK35SR-3, 35SR-3 PX13, 35SR-3 PX14, SK40S... |
| |
| PM30V00019F3 PILOT VALVE |
| 17SR-3, 50SR-3, SK17SR-3 |
| |
| PV68H00015F3 PILOT VALVE |
| 30SR-2, SK25SR-2, 35SR-2 |
| |
| PA30V00002F5 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, SK135SRLC-1E, SD40SR, 70SR-1E, 80MSR-1E, 35SR-2, SK25SR-2, SK80CS-1E, SK40SR, SK45SR-2, SK115SRDZ-1E, SK13SR |
| |
| PA30V00002F4 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, SK135SRLC-1E, SD40SR, 70SR-1E, 80MSR-1E, 35SR-2, SK25SR-2, SK80CS-1E, SK40SR, SK45SR-2, SK115SRDZ-1E, SK13SR |
| |
| PA30V00002F2 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, 35SR-2, SK135SRLC-1E, SD40SR, 70SR-1E, 80MSR-1E, SK25SR-2, SK80CS-1E, SK45SR-2, SK115SRDZ-1E, SK40SR, SK13SR |
| |
| PA30V00002F1 PILOT VALVE |
| SK135SR-1E, SK135SRL-1E, 30SR-2, 35SR-2, SK135SRLC-1E, SD40SR |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
PM30V00019F4 |
[1] |
PILOT VALVE |
KOB ASSY, (PROPELLING) Incl 101 - 501 |
| 101 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON CASE |
| 102 |
NSS |
[1] |
NOT SOLD SEPARAT |
CON CASE |
| 202 |
PM30V00019S202 |
[4] |
PLUG |
KOB |
| 203 |
PM30V00019S203 |
[4] |
CAP |
KOB |
| 210 |
PM30V00019S210 |
[4] |
PACKING |
KOB |
| 211 |
PM30V00019S211 |
[4] |
O-RING |
KOB |
| 212 |
YT30V00009S212 |
[4] |
O-RING |
KOB |
| 213 |
ZD12P00800 |
[2] |
O-RING,1.9mm Thk x 7.8mm ID, 90 Duro |
KOB ID 7.8mm x OD 9.7mm |
| 218 |
PM30V00019S218 |
[4] |
SPRING SEAT |
KOB |
| 224 |
NSS |
[4] |
NOT SOLD SEPARAT |
CON PISTON |
| 225 |
2436U625S232 |
[12] |
BALL |
KOB |
| 251 |
YW30V00001S157 |
[3] |
PLUG |
KOB |
| 252 |
2441U722S490 |
[2] |
PLUG |
KOB 1/16" NPTF |
| 261 |
ZD12P01100 |
[3] |
O-RING |
KOB ID 10.8mm x OD 13.2mm |
| 271 |
PM30V00019S271 |
[4] |
CAPSCREW |
KOB SCREW |
| 301 |
NSS |
[4] |
NOT SOLD SEPARAT |
CON SPOOL |
| 324 |
PM30V00019S324 |
[4] |
SPRING |
KOB Superseded by part number: PM30V00019S012 |
| 335 |
PM30V00019S335 |
[4] |
SPRING |
KOB |
| 336 |
PM30V00019S336 |
[4] |
SPRING |
KOB |
| 414 |
EN30V00045S414 |
[4] |
BUSHING |
KOB BUSHING |
| 420 |
NSS |
[2] |
NOT SOLD SEPARAT |
CON CAM |
| 471 |
NSS |
[4] |
NOT SOLD SEPARAT |
CON BALL |
| 501 |
PM30V00019S501 |
[2] |
BOOT |
KOB |
| . . |
PM30V00019R100 |
[1] |
REPAIR KIT |
KOB BOOT, CONSISTS OF REF. 210(4), 211(4), 212(4), 213(2) |
| . . |
PM30V00019R200 |
[1] |
REPAIR KIT |
KOB BOOT, REPAIR KIT, CONSISTS OF REF. 420(2), 471(4) Superseded by part number: PM30V00019R300 |
| . . |
PM30V00019R300 |
[1] |
REPAIR KIT |
KOB BOOT, REPAIR KIT, CONSISTS OF REF. 413(1), 420(1), 472(1), 471(2) |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
