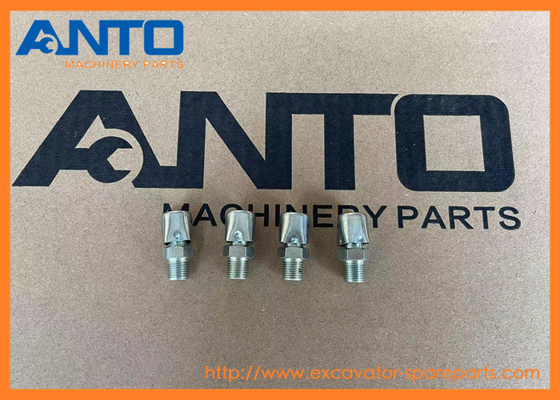

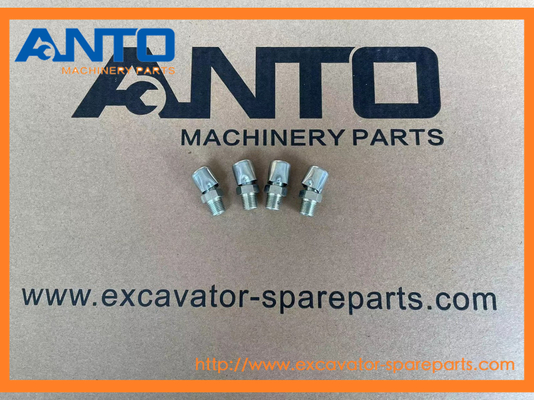

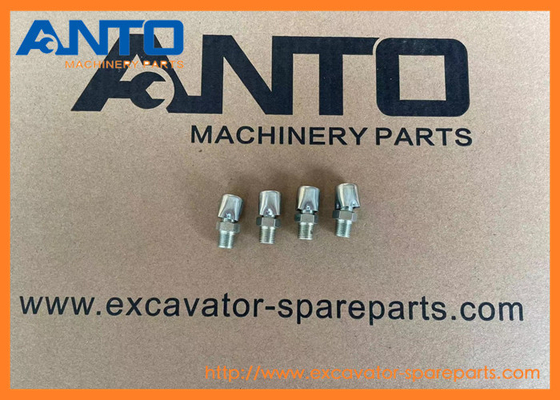

• 07030-01030 0703001030 Breather For KOMATSU Excavators HB205 HB215 PC200 PF3W PW100

• Specification

• Compatible models

COMPACTORS WF450 WF450T WF550 WF550T WF600T WF650T
CRANES LW100 LW200L LW250
DUMP TRUCKS 330M AFP49 HD1500 HD180 HD255 HD320 HD325 HD405 HD465 HD605 HD785

HD985 HM250 HM300 HM300TN HM350 HM400
EXCAVATORS HB205 HB215 PC200 PF3W PW100 PW100S PW128UU PW150 PW20 PW200

PW210 PW30 PW30T PW60 PW60S
GRADERS GD200A GD22AC GD22H GD30 GD305A GD355A GD405A GD825A
MOBILE CRUSHERS AND RECYCLERS BR200T
ROLLERS JT150
SCRAPPERS WS16

• More Breather fit for KOMATSU machinery

• catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	42A-22-50000	[1]	Axle Assembly,Front Komatsu China
			["SN: 60001-UP"] |$0.
1.	42A-22-23211	[1]	Housing,L.H. Komatsu China
			["SN: 60001-UP"]
2.	363-22-33150	[1]	Plug Komatsu China
			["SN: 60001-UP"]
3.	07002-12434	[1]	O-ring Komatsu China	0.01 kg.
			["SN: 60001-UP"] analogs:["0700202434", "0700213434"]
4.	01010-61265	[12]	Bolt Komatsu	0.074 kg.
			["SN: 60001-UP"] analogs:["01010E1265", "0101031265"]
5.	01643-31232	[12]	Washer Komatsu	0.027 kg.
			["SN: 60001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
6.	07030-01030	[1]	Breather Komatsu	0.016 kg.
			["SN: 60001-UP"]
7.	363-22-32530	[3]	Gear Komatsu	0.467 kg.
			["SN: 60001-UP"]
8.	363-22-32810	[6]	Bearing Komatsu China
			["SN: 60001-UP"]
9.	363-22-32510	[3]	Shaft Komatsu China
			["SN: 60001-UP"]
10.	04025-00612	[3]	Pin, Spring Komatsu China
			["SN: 60001-UP"]
11.	363-22-32610	[1]	Carrier Komatsu China
			["SN: 60001-UP"]
12.	363-22-32251	[1]	Holder Komatsu China
			["SN: 60001-UP"]
13.	706-77-40310	[1]	Bolt Komatsu China
			["SN: 60001-UP"]
14.	363-22-32270	[3]	Shim, T=0.05mm Komatsu China
			["SN: 60001-UP"]
14.	363-22-32280	[2]	Shim, T=0.2mm Komatsu China
			["SN: 60001-UP"]
14.	363-22-32290	[3]	Shim, T=0.5mm Komatsu China
			["SN: 60001-UP"]
15.	363-22-32421	[1]	Shaft Komatsu China
			["SN: 60001-UP"]
16.	363-22-32540	[1]	Gear Komatsu China
			["SN: 60001-UP"]
17.	363-22-32580	[3]	Pin Komatsu China
			["SN: 60001-UP"]
18.	42A-22-22410	[1]	Shaft Komatsu China
			["SN: 60001-UP"]
19.	415-22-11850	[1]	Bearing Komatsu	0.581 kg.
			["SN: 60001-UP"] analogs:["0600230210"]
20.	415-22-12840	[1]	Bearing Komatsu China
			["SN: 60001-UP"]
21.	363-22-32460	[1]	Seal Komatsu China
			["SN: 60001-UP"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
