Product Details:
Payment & Shipping Terms:
|
| Model Number: | 3508 3512 3516 | Product Name: | Cylinder Head |
|---|---|---|---|
| Part Number: | 154-1612 1541612 468-8825 468-8824 | Packing: | Standard Export Carton |
| Transportation: | By Sea/air By Express | Warranty: | 6/12 Months |

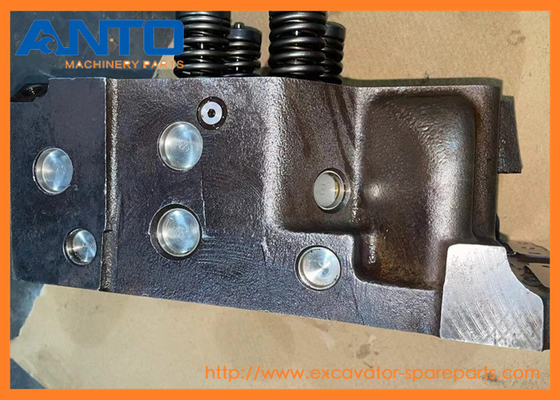

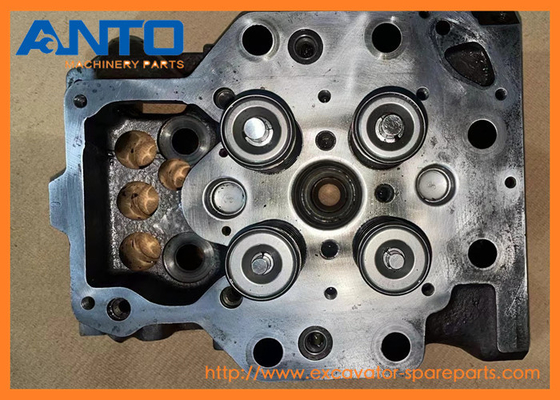

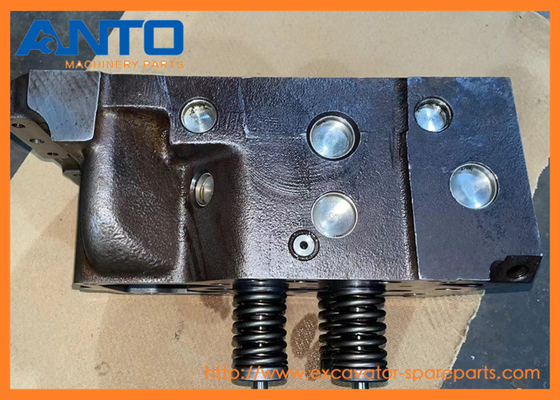

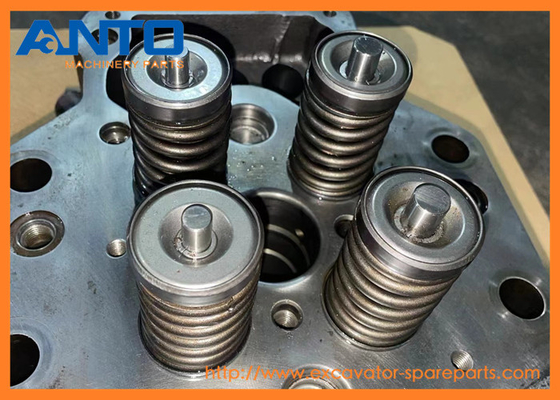

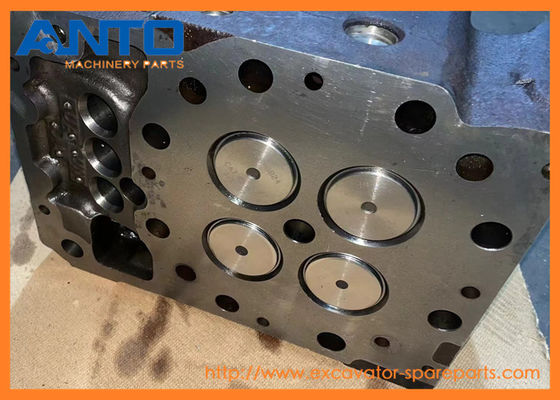

154-1612 1541612 468-8825 468-8824 Cylinder Head Fit Generator Set 3508 3512 3516
Specification
| Application | C A T Hydraulic cylinder |
| Parts Name | Cylinder Head |
| Parts No | 154-1612 1541612 468-8825 468-8824 |
| Model |
3508 3512 3516 |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
GEN SET ENGINE 3508 3512 3516
GENERATOR SET 3508 3512 3516
INDUSTRIAL ENGINE 3508 3512 3516
MARINE ENGINE 3508 3512 3516
VEHICULAR ENGINE 3508 3512 3516 Caterpillar
| 4W0095 CYLINDER HEAD GP |
| 3126, 3508, 3508C, 3512, 3516, 777B, 785, 789, 994, D11N, PM3512, PM3516 |
| 3356218 CYLINDER HEAD GP |
| 3508, 3512, 3516, PM3516 |
| 2425327 CYLINDER HEAD AS |
| 3508, 3508C, 3512, 3516, 3516C, PM3512, PM3516 |
| 4W9560 CYLINDER HEAD GP |
| 3508, 3512, 3516, 777B, 785, 789, 994, D11N |
| 5N8383 CYLINDER |
| 3412, 3412C, 3412D, 3412E, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, 3606, 3608, 3612, 3616, 3618, 5230, 5230B, 776C, 776D, 777D, 784B, 784C, 785, 785B, 785C, 785D, 789B, 789C, 793B,... |
| 7N7445 CYLINDER BLOCK |
| 14G, 14H NA, 16G, 16H NA, 3176, 3176B, 3176C, 3196, 3304, 3306, 3306B, 3306C, 3406B, 3406C, 3406E, 3508, 3508B, 3512, 3512B, 3516, 3516B, 611, 615C, 621, 621E, 621F, 621R, 623E, 623F, 627E, 627F, 814B... |
| 5N7408 CYLINDER |
| 3508, 3508C, 3512, 3512B, 3516, 3516B, 3606, 3608, 3612, 3616 |
| 5N3089 CYLINDER-HYDRAULIC |
| 3508, 3508C, 3512, 3516, D379B, D399 |
| 7X1062 CYLINDER AS-ETHER |
| 3408, 3508, 3508B, 3512, 3512B, 3512C, 3516, 3516B, 3516C, 5130, 5130B, 5230, 5230B, 776C, 776D, 777, 777B, 777C, 777D, 784B, 784C, 785, 785B, 785C, 785D, 789, 789B, 789C, 789D, 793, 793B, 793C, 793D,... |
| 7E4663 CYLINDER BLOCK AS |
| 3512, G3512 |
| 4W1901 CYLINDER-HYDRAULIC |
| 3512, 3512B, 3516 |
| 2W5801 CYLINDER HEAD AS |
| 3512, 3516 |
| 2898137 CYLINDER & SEAL GP-STICK |
| 319D L, 319D LN |
| 9J4100 CYLINDER GP-BUCKET |
| 235 |
| 2539883 CYLINDER BLOCK AS |
| 777F, 854K, 992K, 993K, C27, C32, D11R, D11T, TH48-E70 |
| 7S3226 CYLINDER BLOCK AND COVERS |
| 140, 14E |
| 2898068 CYLINDER & LINES GP-BOOM |
| 312D, 312D L, 313D2 |
| 10R7765 CYLINDER HEAD GP |
| 3508, 3508B, 3512, 3512B, 3516, 3516B, PM3516 |
| 1915549 CYLINDER & LINES GP-STICK |
| 325C, 330C, 330C FM, 330C L, 330D L |
| 2528439 CYLINDER HEAD GP |
| 140M, 160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973C, 97... |
| 3V0107 CYLINDER & MOUNTING GP |
| 950B, 950B/950E, 950F, 950F II, 960F |
| 4T8285 CYLINDER AR-TILT |
| D10N |
| 7Y5150 CYLINDER GP |
| 322, 322 LN, 325, 325 L, 325 LN, 330, 330 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2A-4429 | [4] | LOCK-RETAINER | |
| 2 | 133-9306 | [2] | GUIDE-VALVE (STANDARD)(INTAKE) | |
| 149-1982 AB | GUIDE-VALVE (0.508-MM OS)(INLET) | |||
| 273-3553 AB | GUIDE-VALVE (0.127-MM OS)(INLET) | |||
| 273-3554 AB | GUIDE-VALVE (0.25-MM OS)(INLET) | |||
| 301-9248 AB | GUIDE-VALVE (0.38-MM THK)(INLET) | |||
| 3 | 154-1612 Y | [1] | CYLINDER HEAD AS | |
| 4 | 468-8825 | [2] | VALVE-EXHAUST | |
| 5 | 197-6995 | [2] | GUIDE-VALVE (STANDARD)(EXHAUST) | |
| 276-3875 AB | GUIDE-VALVE (0.127-MM OS)(EXHAUST) | |||
| 276-3876 AB | GUIDE-VALVE (0.25-MM OS)(EXHAUST) | |||
| 320-7710 AB | GUIDE-VALVE (0.381-MM OS, EXHAUST) | |||
| 320-7711 AB | GUIDE-VALVE (0.508-MM OS, EXHAUST) | |||
| 6 | 197-7055 | [4] | LOCK-RETAINER | |
| 7 | 468-8824 | [2] | VALVE-INLET | |
| 8 | 234-8776 | [2] | SHIELD-OIL | |
| 9 | 316-5976 | [4] | SPRING (OUTER) | |
| 10 | 316-5977 | [4] | SPRING (INNER) | |
| 11 | 316-5978 | [2] | ROTOCOIL AS (INLET) | |
| 12 | 316-5979 | [2] | ROTOCOIL AS (EXHAUST) | |
| 13 | 316-5980 | [2] | SEAL-VALVE STEM | |
| 14 | 316-5981 | [2] | WASHER (17.8X44.5X3-MM THK) | |
| A | NOT PART OF THIS GROUP | |||
| B | USE AS REQUIRED | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION | |||
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
