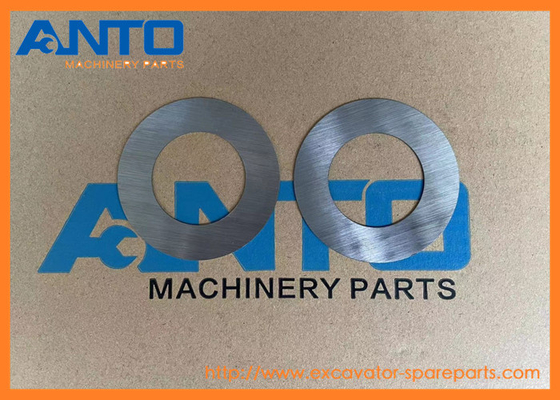

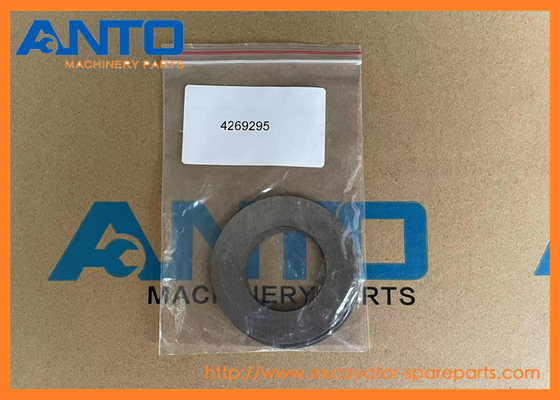

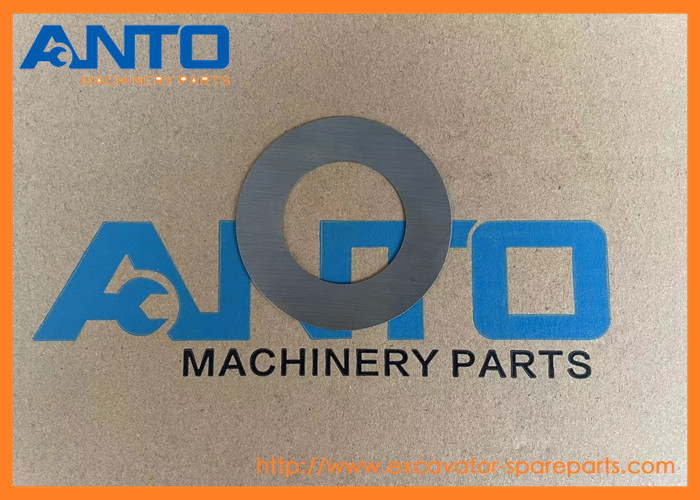

4269295 Plate Fit HITACHI Spare Parts CX350DR CX400 CX500 CX500DR CX500PD CX500S CX550

• 4269295 Plate Fit HITACHI Spare Parts CX350DR CX400 CX500 CX500DR CX500PD CX500S CX550

• Specification

• Compatible models

CX350DR CX400 CX500 CX500DR CX500PD CX500S CX550 CX700 CX700 JPN EX200-2 EX200-5

EX200-5 JPN EX200K-2 EX210H-5 EX220-2 EX220-3 EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC)

EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE EX300-5 EX300LC-5M EX300LCLL-5

EX300LCLL-5M EX345USR(LC) EX350H-5 EX350K-5 EX370-5M EX370HD-5 EX370LL-5M EX385USR

EX400-3 EX400-3C EX400-5 EX450H-5 HR420G-5 MH5510B MX5015 RX2000-2 RX2300 SCX400 SCX400-C3

SCX400T SCX400T-C3 SCX500 SCX500-C SCX550 SCX550-C SCX700 SCX700-2 SCX800-2 SCX800HD-2

UCX300 VR516FS ZR950JC ZX160LC-3 ZX160LC-3-AMS ZX160LC-3-HCME ZX180LC ZX180LC-3

ZX180LC-3-AMS ZX180LC-3-HCME ZX180LC-AMS ZX180LC-HCME ZX185USR ZX200 ZX200-3 ZX200-E Z

X210-3-AMS ZX210-3-HCME ZX210-AMS ZX210-HCME ZX210H ZX210H-3 ZX210K ZX210K-3 ZX210N-3-AMS

ZX210N-3-HCME ZX210N-AMS ZX210N-HCME ZX240-3-AMS ZX240-AMS ZX240-HCME ZX240N-3-HCME

ZX330 ZX350H ZX350K ZX350LC-AMS ZX350LC-HCME ZX370MTH ZX380HH ZX400L-5G ZX400R-3 ZX450

ZX450-3 ZX450-3F ZX450H ZX450H-HHE ZX450LC-3-DH ZX460LCH-AMS ZX460LCH-HCME ZX470-5G

ZX470H-3 ZX470H-3-HCMC ZX470H-3F ZX470H-5G ZX470LC-5B ZX470LC-5G ZX470LCH-5B ZX470LCH-5G

ZX470LCR-5G ZX470R-3 ZX470R-3F ZX470R-5G ZX480MT ZX480MTH ZX500LC-3 ZX500LC-3F ZX520LCH-3

ZX520LCH-3F ZX520LCR-3 ZX520LCR-3F

• Diagram parts list

  Pos.	Part No	Qty	Parts name	Comments
  	9117820	[1]	BOOM HOIST DEVICE	9117820
  0	9114966	[1]	MOTOR;OIL	9114966
  2	1018742	[1]	PEDESTAL
  3	4252835	[1]	O-RING
  4	4114753	[1]	SEAL;GROUP
  5	J931665	[16]	BOLT
  6	A590916	[16]	WASHER;SPRING
  7	4246793	[2]	BRG.;ROL.
  9	1886	[1]	DRUM;BOOMHOIST
  10	3047448	[1]	HUB
  11	3057125	[1]	NUT
  12	4246783	[1]	PIN;KNOCK
  13	2034767	[1]	GEAR;RING
  15	1013980	[1]	CARRIER
  16	3047444	[3]	GEAR;PLANETARY
  17	4210850	[6]	BRG.;NEEDLE
  18	4246790	[3]	PIN
  19	4269295	[12]	PLATE;THRUST
  20	4116309	[3]	PIN;SPRING
  21	3047443	[1]	GEAR;SUN
  23	1013979	[1]	CARRIER
  24	4246785	[2]	SPACER
  25	3047446	[3]	GEAR;PLANETARY
  26	4246786	[3]	BRG.;NEEDLE
  27	4246789	[3]	PIN
  28	4246358	[3]	PIN;SPRING
  29	3047442	[1]	GEAR;SUN
  31	1013982	[1]	CARRIER
  32	3047447	[3]	GEAR;PLANETARY
  33	4246787	[3]	BRG.;NEEDLE
  34	4246788	[3]	PIN
  35	4192983	[6]	PLATE;THRUST
  36	4192020	[3]	PIN;SPRING
  37	2028213	[1]	SHAFT;PROP.
  39	1018741	[1]	COVER
  40	4285323	[1]	PIN;STOPPER
  41	4245797	[3]	PLUG
  42	J931665	[12]	BOLT
  43	4311473	[1]	BRG.;BALL
  44	942480	[1]	RING;RETAINING
  45	2034766	[1]	PEDESTAL
  48	M492564	[2]	SCREW;DRIVE
  49	3053559	[1]	NAME-PLATE

• More other plate fit HITACHI machinery

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
