Product Details:
Payment & Shipping Terms:
|
| Engine Model: | C4.4 C6.4 | Machine Model: | 311F LRR 323D2 L 568 FM LL |
|---|---|---|---|
| Application: | Excavator | Product Name: | Timer Hour Meter |
| Part Number: | 366-0367 3660367 | Packing: | Standard Export Carton |

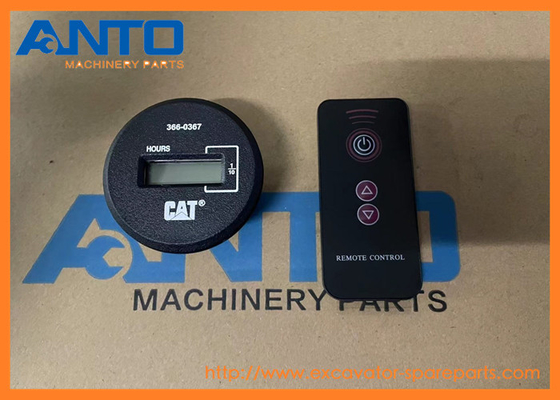

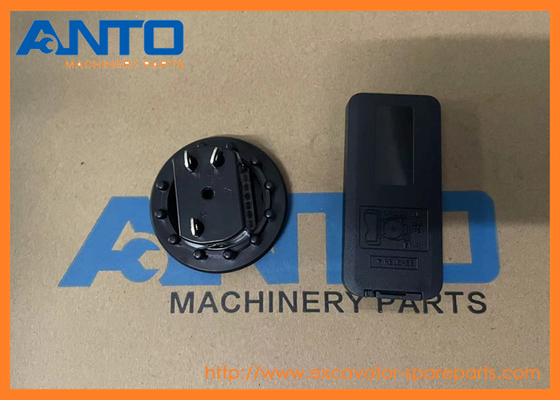

| Name | Timer Hour Meter |
| Parts No | 366-0367 3660367 |
| Machine Model | 311F LRR 323D2 L 568 FM LL |
| Category | C A T Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
EXCAVATOR 311F LRR 323D2 L 568 FM LL
MINI HYD EXCAVATOR 308E2 CR
TRACK-TYPE TRACTOR D10N Cater.pillar
| 3739759 METER GP-SERVICE |
| 300.9D |
| 1205966 METER GP-SERVICE |
| M312, M315, M318, M320 |
| 1P3444 METER ASSEM. |
| 772, D8K |
| 1495914 METER-OIL FLOW |
| G3612 |
| 2096587 METER-FLOW |
| SCT673 |
| 3583235 METER AS |
| 3612 |
| 9S9336 METER GROUP |
| 631C, D5, D6C |
| 4N3305 METER GROUP |
| D6C, D7G |
| 6N0676 METER (volt) |
| 215, 225, 227, 235, 245, 988B, D250B, D300B |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 7K-1181 | [7] | STRAP-CABLE | |
| 2 | 7Y-5505 | [2] | SPEAKER AS | |
| (EACH INCLUDES) | ||||
| 7Y-3951 | [2] | TERMINAL-BLADE (14-GA) | ||
| 7Y-3954 | [1] | CONNECTOR-PLUG (3-PIN) | ||
| 3 | 9W-0335 J | [1] | LIGHTER AS-CIGAR (24-VOLT) | |
| 4 | 099-7127 M | [8] | SCREW-MACHINE (M4X0.7X12-MM) | |
| 5 | 113-8490 | [20] | FUSE (10-AMPERE) | |
| 6 | 113-8491 | [6] | FUSE (15-AMPERE) | |
| 7 | 113-8492 | [2] | FUSE (20-AMPERE) | |
| 8 | 113-8493 | [2] | FUSE (25-AMPERE) | |
| 9 | 116-0210 | [4] | BRACKET AS | |
| 10 | 124-3548 | [2] | FUSE (30-AMPERE) | |
| 11 | 132-1829 Y | [1] | ALARM GP (24-VOLT)(FAULT) | |
| 12 | 141-2759 | [8] | FUSE (5-AMPERE) | |
| 13 | 161-3128 | [1] | RELAY (24-VOLT)(BOOM FLOODLIGHT) | |
| 13A. | 161-3128 | [1] | RELAY (24-VOLT)(CHASSIS LIGHT) | |
| 13B. | 161-3128 | [1] | RELAY (24-VOLT)(CAB LIGHT) | |
| 13C. | 161-3128 | [1] | RELAY (24-VOLT)(HORN) | |
| 13D. | 161-3128 | [1] | RELAY (24-VOLT)(NEUTRAL START) | |
| 13E. | 161-3128 | [1] | RELAY (24-VOLT)(ETHER START) | |
| 13F. | 161-3128 | [1] | RELAY (24-VOLT)(ELECTRIC PRIMING) | |
| 13G. | 161-3128 | [1] | RELAY (24-VOLT)(PUMP) | |
| 14 | 163-6795 | [15] | STRAP-CABLE | |
| 15 | 167-3593 | [1] | STRAP | |
| 16 | 170-6888 | [1] | PULLER-FUSE | |
| 17 | 213-0772 | [1] | SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY) | |
| 18 | 234-1097 | [1] | BRACKET | |
| 20 | 238-2318 H | [1] | LIGHTER AS-CIGAR (24-VOLT) | |
| 21 | 238-2390 | [1] | CABLE AS (RED) | |
| 22 | 238-2391 | [1] | CABLE AS (PURPLE) | |
| (EACH CABLE AS INCLUDES) | ||||
| 9G-4343 | [2] | TERMINAL-RING (4-GA, 1/4-IN SCREW) | ||
| 125-7876 E | TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) | |||
| 23 | 245-7760 | [8] | INSULATION | |
| 24 | 251-0637 | [1] | INSULATION | |
| 25 | 259-4883 | [1] | ANTENNA AS | |
| 259-5081 | [1] | ROD | ||
| 259-5082 | [1] | CABLE AS | ||
| 26 | 327-7538 | [1] | PANEL AS-SWITCH | |
| 356-7732 | [1] | KNOB (SWITCH PANEL) | ||
| 27 | 366-0367 | [1] | METER GP-SERVICE | |
| 304-5303 | [1] | NUT-SPECIAL (SERVICE METER) | ||
| 366-4622 | [1] | KIT-SERVICE METER (32-VOLT DC) | ||
| (INCLUDES FILM & METER GP) | ||||
| 28 | 450-3501 | [1] | HARNESS AS-CAB | |
| 102-8803 | [2] | KIT-RECEPTACLE (3-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 8T-8730 | [5] | SOCKET-CONNECTOR (16-GA TO 18-GA) | ||
| 3S-2093 | [109] | STRAP-CABLE | ||
| 7Y-3950 | [4] | TERMINAL-BLADE (14-GA TO 20-GA) | ||
| 7Y-3951 | [11] | TERMINAL-BLADE (14-GA) | ||
| 7Y-3952 | [3] | PLUG-CONNECTOR (2-PIN) | ||
| 7Y-3955 | [2] | CONNECTOR-RECEPTACLE | ||
| 7Y-3958 | [1] | CONNECTOR-PLUG (6-PIN) | ||
| 7Y-3966 | [2] | TERMINAL AS | ||
| (EACH INCLUDES) | ||||
| 7Y-3962 | [1] | TERMINAL-BULLET (MALE) | ||
| 7Y-3964 | [1] | TUBE (CONNECTOR TERMINAL) | ||
| 7Y-3967 | [7] | TERMINAL AS | ||
| (EACH INCLUDES) | ||||
| 7Y-3963 | [1] | TERMINAL-BULLET (FEMALE) | ||
| 7Y-3965 | [1] | TUBE (RECEPTACLE TERMINAL) | ||
| 8C-6354 | [1] | CAP-RECEPTACLE (ET CONNECTOR) | ||
| 8T-8737 | [8] | PLUG-SEAL | ||
| 5P-6271 | [1] | CONNECTOR AS | ||
| 9W-1951 | [1] | RECEPTACLE-CONNECTOR (9-PIN) | ||
| 102-7964 | [2] | PLUG-CONNECTOR (16-PIN) | ||
| 102-7965 | [82] | TERMINAL (FEMALE) | ||
| 9W-0844 | [2] | SOCKET-CONNECTOR (14-GA TO 16-GA) | ||
| 111-4816 | [1] | PLUG-CONNECTOR (13-PIN) | ||
| 116-0255 | [1] | TERMINAL-BLADE (10-GA TO 20-GA) | ||
| 119-3662 E | TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM) | |||
| 121-1022 | [1] | DIODE | ||
| 121-1168 | [1] | CONNECTOR-RECEPTACLE | ||
| 121-1173 | [19] | TERMINAL (MALE) | ||
| 125-4784 | [1] | PLUG-CONNECTOR (12-PIN) | ||
| 125-4785 | [37] | TERMINAL (FEMALE) | ||
| 125-4840 | [1] | WEDGE-PLUG LOCK (13-PIN) | ||
| 125-4841 | [2] | WEDGE-PLUG LOCK (21-PIN) | ||
| 125-7874 E | TUBE-HEAT SHRINK (5.72-MM DIA)(55-CM) | |||
| 125-7875 E | TUBE-HEAT SHRINK (7.44-MM DIA)(45-CM) | |||
| 9X-3402 | [6] | SOCKET-CONNECTOR (16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1768 | [6] | SOCKET-CONNECTOR (14-GA TO 16-GA) | ||
| 2L-8065 | [3] | TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW) | ||
| 2L-8066 | [2] | TERMINAL-RING (10-GA TO 12-GA, NO. 10 SCREW) | ||
| 2L-8067 | [6] | TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW) | ||
| 2L-8075 | [3] | TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | ||
| 2L-8076 | [2] | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | ||
| 128-8950 | [1] | CONNECTOR-RECEPTACLE | ||
| 5P-2321 | [1] | TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW) | ||
| 176-9299 | [2] | KIT-RECEPTACLE (3-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGES) | ||||
| 134-3296 | [1] | HOUSING-PLUG | ||
| 134-3297 | [1] | SEAL | ||
| 138-5184 | [1] | PLUG-CONNECTOR (20-PIN) | ||
| 9X-3401 | [12] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1767 | [12] | PIN-CONNECTOR (14-GA TO 16-GA) | ||
| 149-5069 | [9] | TERMINAL-BLADE (14-GA TO 20-GA) | ||
| 149-5070 | [18] | TERMINAL-BLADE (16-GA TO 20-GA) | ||
| 149-5071 | [9] | TERMINAL-BLADE (12-GA TO 14-GA) | ||
| 153-2602 | [3] | RECEPTACLE-CONNECTOR (1-PIN) | ||
| 153-2631 | [3] | TERMINAL (14-GA TO 20-GA) | ||
| 155-2270 | [1] | KIT-CONNECTING PLUG (2-PIN) | ||
| (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 163-6803 | [8] | PLUG-CONNECTOR (5-PIN) | ||
| 167-3487 | [8] | WEDGE-PLUG LOCK (5-PIN) | ||
| 167-3630 | [1] | CONNECTOR-PLUG | ||
| 167-3631 | [2] | TERMINAL (FEMALE) | ||
| 170-6890 | [6] | TERMINAL-BLADE (14-GA) | ||
| 170-6891 | [25] | TERMINAL-BLADE (16-GA TO 18-GA) | ||
| 174-3016 | [2] | PLUG AS-CONNECTOR (3-PIN) | ||
| 230-4009 | [1] | PLUG AS-CONNECTOR (12-PIN) | ||
| 455-0709 | [1] | SEAL-CONNECTOR | ||
| 230-4011 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 455-0704 | [1] | SEAL-CONNECTOR | ||
| 238-2319 | [1] | BASE AS (FUSE, RELAY PANEL) | ||
| 9X-8256 | [2] | WASHER (6.6X12X2-MM THK) | ||
| 095-0742 M | [2] | SCREW-MACHINE (M6X1X16-MM) | ||
| 170-9394 | [40] | TERMINAL | ||
| 238-2363 | [6] | TERMINAL (FEMALE) | ||
| 238-2366 | [13] | TERMINAL (MALE) | ||
| 243-4505 | [1] | RECEPTACLE AS-CONNECTOR (2-PIN) | ||
| 342-2972 | [1] | CAP-CONNECTOR (2-PIN) | ||
| 349-5084 | [3] | TERMINAL-BLADE | ||
| 349-5085 | [3] | RECEPTACLE AS-CONNECTOR | ||
| 29 | 095-0723 M | [3] | SCREW-SPECIAL (M3X0.5X10-MM) | |
| 30 | 096-5962 | [3] | WASHER-HARD (3.4X7X0.8-MM THK) | |
| 31 | 096-6166 | [6] | WASHER-HARD (4.5X9X1-MM THK) | |
| 32 | 132-5789 | [6] | CLIP (LADDER) | |
| 33 | 3S-2093 | [1] | STRAP-CABLE | |
| 34 | 4P-7581 | [1] | CLIP (LADDER) | |
| 35 | 5C-2890 M | [3] | NUT (M6X1-THD) | |
| 36 | 6V-5210 M | [12] | SCREW-MACHINE (M4X0.7X10-MM) | |
| 37 | 6V-9672 M | [2] | SCREW-MACHINE (M4X0.7X16-MM) | |
| 38 | 8T-0328 | [3] | WASHER-HARD (5.5X10X1-MM THK) | |
| 39 | 8T-4127 M | [2] | SCREW-MACHINE (M5X0.8X20-MM) | |
| 40 | 8T-6693 M | [1] | SCREW-MACHINE (M5X0.8X16-MM) | |
| 41 | 9X-2042 M | [8] | SCREW-TRUSS HEAD (M6X1X12-MM) | |
| 42 | 9X-2044 M | [5] | SCREW-TRUSS HEAD (M6X1X16-MM) | |
| 43 | 9X-8256 | [3] | WASHER (6.6X12X2-MM THK) | |
| 44 | 101-2846 E | GUARD (28-CM) | ||
| E | ORDER BY THE CENTIMETER | |||
| H | FOR AKASHI PLANT | |||
| J | FOR OTHER THAN AKASHI PLANT | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
