| Engine Model: | 3054 | Machine Model: | 225 231D 235B 235C 235D 416 416B 416C |
|---|---|---|---|
| Application: | Excavator, Backhoe Loader | Product Name: | Temperature Switch |
| Part Number: | 6T-2665 203-3219 068-4150 | Packing: | Standard Export Carton |

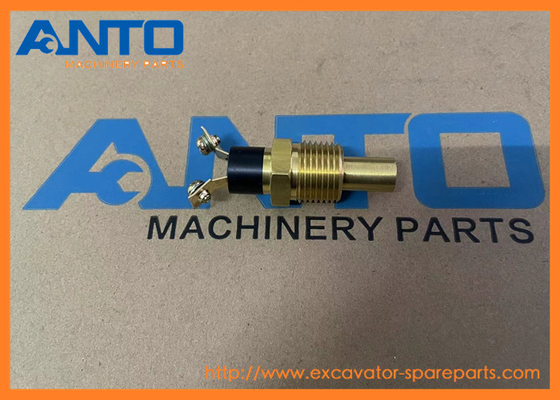

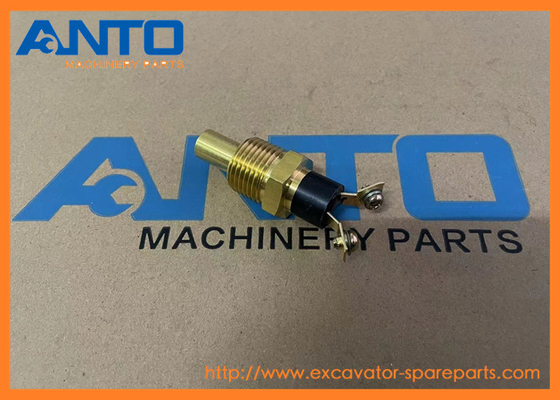

| Name | Temperature Switch |
| Parts No | 6T-2665 203-3219 068-4150 |
| Machine Model | 416C 426B 426C 428 428B 428C 436 436C 438C |
| Category | C A T Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
ASPHALT PAVER AP-1000B AP-1055B AP-650B AP-800C AP-800D AP-900B BG-225B BG-225C BG-2455C BG-245C
BACKHOE LOADER 416D 420D 424B 424B HD 424D 428D 430D 432D 438D 442D
VIBRATORY COMPACTOR CB-434D CB-534D CB-564D CD-54 Cater.pillar
| 1690596 SWITCH AS-ROCKER |
| 416D, 420D, 424D, 428D, 430D, 432D, 438D, 442D, 446D |
| 2138479 SWITCH GP-MULTIFUNCTION |
| 416D, 420D, 424D, 428D, 430D, 432D, 438D, 442D |
| 1684609 SWITCH AS-START |
| 416D, 420D, 424D, 428D, 430D, 432D, 438D, 442D, 446D |
| 2462671 SWITCH AS-MULTIFUNCTION |
| 414E, 416D, 416E, 420D, 420E, 422E, 424B, 424D, 428D, 428E, 430D, 430E, 432D, 432E, 434E, 442D, 442E, 444E, 446D, 450E |
| 2366923 SWITCH AS-PRESSURE |
| 226B, 226B3, 232B, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247B, 247B3, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267B, 268B, 272C, 272D, 272D XHP, 277C, 277C2, 2... |
| 2418367 SWITCH AS-MAGNETIC |
| 902, 904B, 904H, 906, 908, C13, C15, C18, C9.3, CB-14, CB-214E, CB-22, CB-334E, CB-34, CB-434D, CB-44B, CB-534D, CB-54, CB-54B, CB-564D, CB-634D, CB-64, CD-54, CD-54B, CW-14, CX31-C13I, CX31-C15I, CX3... |
| 2374894 SWITCH AS-PRESSURE |
| 3054C, 414E, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424D, 428D, 428E, 428F, 430D, 430E, 430F, 432D, 432E, 432F, 434E, 434F, 442D, 442E, 444E, 444F, 914G, C4.4, IT14G |
| 2358747 SWITCH-TEMPERATURE |
| 3054C, 414E, 416D, 416E, 420D, 420E, 422E, 424D, 428D, 428E, 430D, 430E, 432D, 432E, 434E, 442D, 442E, 444E, 914G, C4.4, IT14G |
| 1340404 SWITCH AS-PRESSURE |
| 120M, 140M, 143H, 160M, 163H NA, 216B, 216B3, 226B, 226B3, 232B, 236B, 236B3, 242B, 242B3, 246C, 247B, 247B3, 24H, 252B, 252B3, 256C, 257B, 257B3, 259B3, 262C, 262C2, 267B, 268B, 272C, 277C, 277C2, 27... |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 226-6468 Y | [1] | ENGINE AR-PRIMARY | |
| 2 | 165-2273 | [1] | VALVE AS-SHUTOFF (ENGINE OIL) | |
| 6V-7238 | [1] | VALVE-SHUTOFF (ENGINE OIL) | ||
| 3K-0360 | [1] | SEAL-O-RING | ||
| 3 | 183-3633 I | [1] | HOSE AS | |
| 4 | 165-4935 | [1] | PLUG AS | |
| 7J-9108 | [1] | SEAL-O-RING | ||
| 5 | 5K-5068 | [1] | FITTING-PIPE (1/8-27 PTF) | |
| 6 | 5P-2423 | [1] | CROSS-PIPE | |
| 7 | 109-4204 | [1] | FAN (10-BLADE) | |
| 8 | 162-0782 | [1] | SWITCH AS-PRESSURE ( ENGINE OIL) | |
| 102-8803 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 8T-8729 | [3] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| 9 | 6V-7529 | [1] | ADAPTER | |
| 10 | 105-8056 | [1] | SENDER AS-PRESSURE ( ENGINE OIL) | |
| 4B-2049 | [1] | NUT (10-32-THD) | ||
| 8F-1434 | [1] | LOCKWASHER | ||
| 11 | 164-5590 | [1] | VALVE GP-FLUID SAMPLING (ENGINE OIL) | |
| 8C-3446 | [1] | VALVE-SAMPLING (ENGINE OIL) | ||
| 3J-7354 | [1] | SEAL-O-RING | ||
| 12 | 8C-3445 | [1] | CAP-DUST | |
| 13 | 3T-7076 | [1] | SENDER AS-TEMPERATURE (12-VOLT)(ENGINE COOLANT) | |
| 6V-8378 | [1] | NUT (10-32-THD) | ||
| 4B-4274 | [1] | WASHER (5.5X13X1.2-MM THK) | ||
| 8F-1434 | [1] | LOCKWASHER | ||
| 14 | 203-3219 | [1] | SWITCH AS-TEMPERATURE (ENGINE COOLANT) | |
| 6V-8376 | [2] | SCREW-MACHINE (8-32X0.25-IN) | ||
| 9B-7233 | [2] | LOCKWASHER | ||
| 15 | 9X-2488 | [1] | CLAMP-HOSE | |
| 16 | 5P-2369 | [1] | CLIP | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
