Product Details:
Payment & Shipping Terms:
|

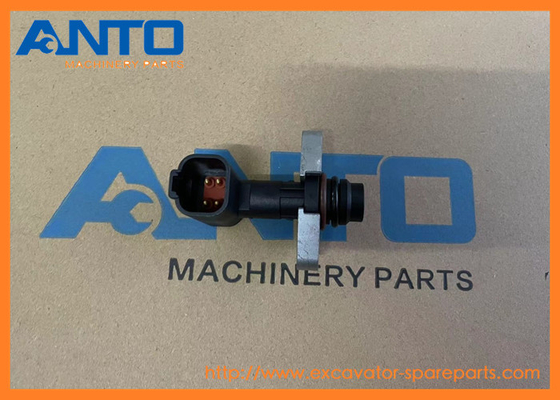

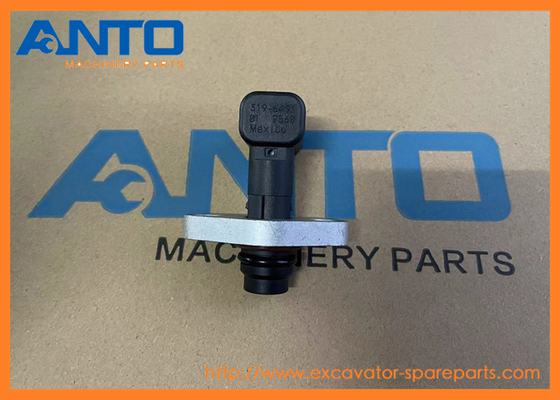

| Engine Model: | C6.6 C4.4 3044C | Machine Model: | 953D 963D 906H 906H2 907H |
|---|---|---|---|
| Application: | Track Loader, Plpelayer | Product Name: | GP-Speed Sensor |
| Part Number: | 319-6491 3196491 | Packing: | Standard Export Carton |
| Highlight: | 953D Track Loader Engine Parts,C6.6 Track Loader Engine Parts,319-6491 Track Loader Engine Parts |
||
| Engine Model | C4.4 C6.6 3044C |
| Name | Revolution Speed Sensor |
| Parts No | 319-6491 3196491 |
| Machine Model | 953D 963D 906H 906H2 907H 907H2 908H |
| Category | Gp-Chassis Wiring |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
COMPACT WHEEL LOADER 906H 906H2 907H 907H2 908H 908H2
PIPELAYER PL61
TRACK LOADER 953D 963D
TRACK-TYPE TRACTOR D3K XL D3K2 LGP D4K XL D4K2 XL D5K LGP D5K2 XL D6K D6K LGP D6K XL D6K2 LGP D7E D7E LGP D9T
VIBRATORY COMPACTOR CP-54B CP-68B CP-74B CS-54B CS-56B CS-64B CS-66B CS-68B CS-74B CS-76B CS-78B Cate.rpillar
| 1918305 SENSOR GP-SPEED |
| 24M, 3606, 3608, 3612, 572R II, 583T, 587T, 725, 725C, 730, 730C, 735, 735B, 740, 740B, 770G, 770G OEM, 772G, 772G OEM, 793F, 793F-XQ, 795F AC, 797, 797B, 797F, 966K, 966M XE, 972M XE, AD55, C15, C175... |
| 2746719 SENSOR GP-PRESSURE |
| 120K, 120K 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 2290, 2390, 2391, 2491, 24M, 2590, 2864C, 324D, 324D ... |
| 2871866 SENSOR GP-PRESSURE |
| 12M 2, 12M 3, 12M 3 AWD, 140M 2, 140M 3, 140M 3 AWD, 160M 2, 160M 3, 160M 3 AWD, 2864C, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 568 FM LL, 586C, 627H, 627K, 627K LRC, 725C, 793F, 793... |
| 2766793 SENSOR GP-PRESSURE |
| 120K, 120K 2, 12K, 12M, 140K, 140K 2, 140M, 140M 2, 160K, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 32... |
| 2746717 SENSOR-PRESSURE |
| 120K, 120K 2, 120M, 12K, 12M, 140G, 140K, 140K 2, 140M, 14M, 160K, 160M, 16M, 24M, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 3508, 3508B, 3512, 3512B, 3512C, 3516, 3516B, 3516C, 36... |
| 2746718 SENSOR GP-PRESSURE |
| 14M, 16M, 24M, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 583T, 587T, 621B, 621G, 623G, 627F, 627G, ... |
| 3203064 SENSOR GP-PRESSURE |
| 140M 2, 160M 2, 2864C, 336E HVG, 3406C, 349E, 349E L, 349E L HVG, 586C, 621K, 623H, 623K, 627K, 730C, 770G, 770G OEM, 772G, 772G OEM, C13, C15, C18, C4.4, C9.3, CX31-C13I, CX31-C18I, CX35-C18I, D7E, D... |
| 2986488 SENSOR GP-PRESSURE |
| 12M 2, 140M 2, 160M 2, 336E, 336E H, 336E L, 336E LH, 336E LN, 349E, 349E L, 349E L VG, 349F L, 3516C, 374F L, 390F L, 568 FM LL, 621H, 627H, 735B, 740B, 824K, 825K, 826K, 834K, 836K, 906H, 907H, 908H... |
| 3491178 SENSOR-PRESSURE |
| 525D, 535D, 545D, 824K, 825K, 826K, 834K, 836K, 844K, 924K, 930K, 938K, 950K, 962K, 963D, 966K, 966M, 966M XE, 972K, 972M, 972M XE, 980H, 980K, 980M, 982M, 988H |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 091-9035 | [1] | SPACER (11X25X20-MM THK) | |
| 2 | 3E-5169 | [1] | GUARD-SWITCH (GROUND LEVEL SHUTDOWN) | |
| 3 | 7G-1060 | [1] | STRAP AS-GROUND | |
| 4 | 7K-1181 | [76] | STRAP-CABLE | |
| 5 | 127-5447 | [1] | SPACER (10.5X20X12-MM THK) | |
| 6 | 131-0359 | [1] | PLATE-IDENTIFICATION (ENGINE STOP, RUN) | |
| 7 | 158-6634 | [1] | SWITCH GP-TOGGLE (GROUND LEVEL SHUTDOWN) | |
| 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | ||
| 6T-3632 | [1] | LOCKWASHER | ||
| 6T-3633 | [1] | RING-LOCKING | ||
| 186-3735 | [3] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| 9G-3695 | [1] | PLUG-SEAL | ||
| 102-8804 | [1] | KIT-RECEPTACLE (4-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 8 | 174-7876 | [1] | HORN AS (24-VOLT, LOW TONE) | |
| 177-9853 | [1] | RECEPTACLE AS (2-PIN) | ||
| 178-3586 | [1] | LOCK | ||
| 9 | 319-6491 Y | [1] | SENSOR GP-SPEED (TRACK, LH) | |
| 9A. | 319-6491 Y | [1] | SENSOR GP-SPEED (TRACK, RH) | |
| 10 | 204-2281 | [2] | STRAP-CABLE | |
| 11 | 206-2423 | [2] | SADDLE-MOUNTING | |
| 12 | 218-4935 | [1] | SUPPRESSOR-ARC | |
| 13 | 220-0229 | [1] | ALARM AS (BACKUP) | |
| 5P-5623 D | WIRE-ELECTRICAL (16-GA, BLACK)(0.4-M EACH) | |||
| 102-8802 | [1] | KIT-RECEPTACLE (2-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 186-3735 | [2] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| 9X-1813 BE | SLEEVE (31-CM) | |||
| 14 | 261-0420 | [1] | SENSOR GP-PRESSURE (HYDROSTATIC DRIVE) | |
| 15 | 315-5846 C | [1] | HARNESS AS-CHASSIS | |
| 16 | 298-5802 | [1] | CLAMP AS | |
| 18 | 204-8000 | [3] | MOUNTING-CABLE TIE | |
| 19 | 207-5370 | [1] | CLIP | |
| 20 | 3J-1907 | [1] | SEAL-O-RING | |
| 21 | 4D-7388 | [1] | CLIP (LOOP) | |
| 22 | 4P-7429 C | [2] | CLIP (LADDER) | |
| 23 | 4P-7581 | [9] | CLIP (LADDER) | |
| 24 | 4P-8134 | [9] | CLIP (LADDER) | |
| 25 | 5C-7261 M | [2] | NUT (M8X1.25-THD) | |
| 26 | 5P-4116 | [6] | WASHER-HARD (8.8X20.5X2-MM THK) | |
| 27 | 5P-6629 | [1] | GROMMET | |
| 29 | 7C-4354 | [2] | CLIP | |
| 31 | 8M-2773 | [5] | CLIP (LOOP) | |
| 32 | 8T-0267 M | [4] | BOLT-SOCKET HEAD (M6X1X12-MM) | |
| 33 | 8T-4121 | [27] | WASHER-HARD (11X21X2.5-MM THK) | |
| 34 | 8T-4133 M | [2] | NUT (M10X1.5-THD) | |
| 35 | 8T-4137 M | [16] | BOLT (M10X1.5X20-MM) | |
| 37 | 8T-4179 M | [1] | BOLT (M12X1.75X20-MM) | |
| 39 | 8T-4189 M | [2] | BOLT (M8X1.25X20-MM) | |
| 40 | 8T-4191 M | [5] | BOLT (M10X1.5X16-MM) | |
| 41 | 8T-4195 M | [1] | BOLT (M10X1.5X30-MM) | |
| 42 | 8T-4200 M | [2] | BOLT (M8X1.25X16-MM) | |
| 43 | 8T-4223 | [1] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 45 | 8T-6466 M | [1] | BOLT (M10X1.5X60-MM) | |
| 46 | 9M-8406 | [2] | CLIP (LOOP) | |
| 47 | 9W-1991 | [1] | SPACER (10.7X17.1X40-MM THK) | |
| 48 | 9X-7373 | [1] | GROMMET | |
| 49 | 5P-9085 | [2] | CLIP (LOOP) | |
| 50 | 197-7481 M | [1] | STUD (M10X1.5X83-MM) | |
| 51 | 315-5850 C | [1] | HARNESS AS-SWITCH (TILT KICKOUT) | |
| 52 | 315-5848 C | [1] | HARNESS AS-SWITCH (LIFT KICKOUT) | |
| 53 | 6S-1066 C | [1] | GROMMET (41.28-MM OD) | |
| 54 | 3D-5279 C | [1] | GROMMET | |
| 55 | 193-3973 | [1] | STRAP-CABLE | |
| 56 | 8T-2525 | [1] | GROMMET | |
| 57 | 5P-7469 | [1] | CLIP (TAB) | |
| 58 | 5P-7468 | [1] | CLIP (SLOT) | |
| B | USE AS REQUIRED | |||
| C | CHANGE FROM PREVIOUS TYPE | |||
| D | ORDER BY THE METER | |||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
