• 20Y-26-22210 20Y2622210 Support For KOMATSU PC200 PC200CA PC200SC PC210 PC220

• ​Specification

• Compatible models

EXCAVATOR KOMATSU

PC200 PC200CA PC200SC PC210 PC220

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  	20Y-26-00151	[1]	SWING MACHINERY A. Komatsu	190 kg.
  			["SN: C10001-UP"] analogs:["20Y2600150"] |1.

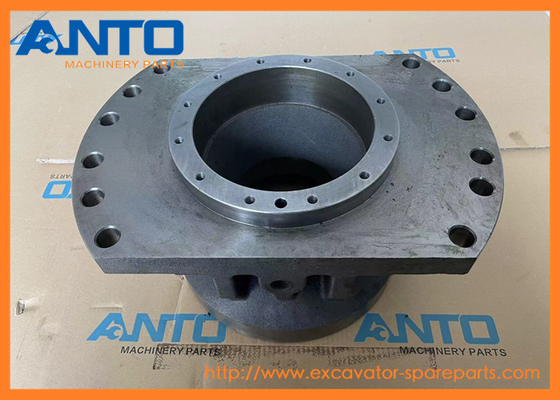

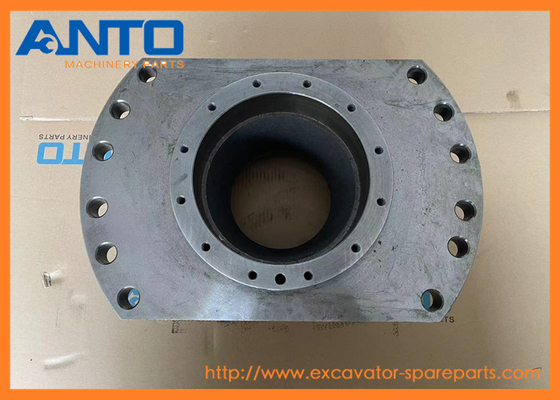

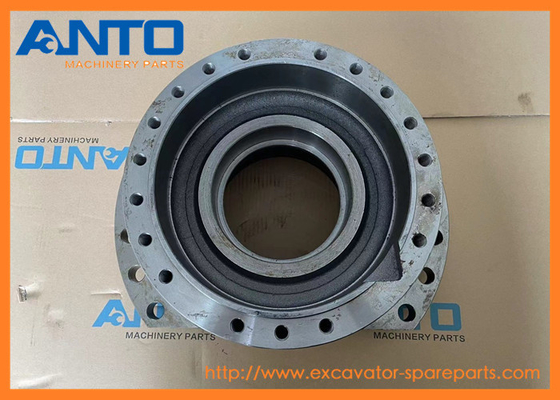

  1.	20Y-26-22210	[1]	Komatsu	76 kg.
  			["SN: C10001-UP"]
  2.	20Y-26-22330	[1]	BEARING Komatsu China	3.28 kg.
  			["SN: C10001-UP"] analogs:["20Y2622331", "20Y2622430"]
  3.	20Y-26-22340	[1]	BEARING Komatsu China	9.6 kg.
  			["SN: C10001-UP"] analogs:["20Y2622342", "20Y2622440"]
  4.	20Y-26-22191	[1]	COVER Komatsu	4.6 kg.
  			["SN: C10001-UP"] analogs:["20Y2622190"]
  5.	01010-81045	[12]	BOLT Komatsu	0.039 kg.
  			["SN: C10001-UP"] analogs:["0101051045", "01010D1045"]
  6.	01643-31032	[12]	WASHER Komatsu	0.054 kg.
  			["SN: C10001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
  7.	20Y-26-22420	[1]	SEAL Komatsu China	0.3 kg.
  			["SN: C10001-UP"]
  8.	20Y-26-21141	[1]	SHAFT¤ 15 TEETH Komatsu OEM	35 kg.
  			["SN: C10001-UP"] analogs:["20Y2621140", "20Y2621142"]
  9.	20Y-26-22170	[1]	CARRIER Komatsu	8.55 kg.
  			["SN: C10001-UP"]
  10.	20Y-26-22141	[4]	GEAR¤ 36 TEETH Komatsu China	1.8 kg.
  			["SN: C10001-UP"] analogs:["20Y2622140"]
  11.	20G-26-11240	[4]	BEARING Komatsu China	0.24 kg.
  			["SN: C10001-UP"] analogs:["20G2611241", "20G2611410"]
  12.	20Y-27-21240	[8]	WASHER Komatsu China	0.02 kg.
  			["SN: C10001-UP"]
  13.	20Y-26-22250	[4]	PIN Komatsu China	0.52 kg.
  			["SN: C10001-UP"]
  14.	20Y-27-21280	[4]	PIN Komatsu China	0.01 kg.
  			["SN: C10001-UP"]
  15.	20Y-26-21240	[1]	PLATE Komatsu	5.1 kg.
  			["SN: C10001-UP"]
  16.	112-32-11211	[1]	BOLT¤ SHOE Komatsu	0.09 kg.
  			["SN: C10001-UP"]
  17.	20Y-26-22151	[1]	GEAR¤ 101 TEETH Komatsu	18.8 kg.
  			["SN: C10001-UP"] analogs:["20Y2622150"]
  18.	20Y-26-22131	[1]	GEAR¤ 27 TEETH Komatsu	2.15 kg.
  			["SN: C10001-UP"] analogs:["20Y2622130"]
  19.	04064-07525	[1]	RING Komatsu	0.026 kg.
  			["SN: C10001-UP"]
  20.	20Y-26-22220	[1]	THRUST WASHER Komatsu	0.04 kg.
  			["SN: C10001-UP"]
  21.	20Y-26-22160	[1]	CARRIER Komatsu	5.1 kg.
  			["SN: C10001-UP"]
  22.	20Y-26-22120	[3]	GEAR¤ 39 TEETH Komatsu China	1.25 kg.
  			["SN: C10001-UP"]
  23.	20Y-26-21280	[3]	BEARING Komatsu	0.1 kg.
  			["SN: C10001-UP"] analogs:["20Y2621281", "20X2621240", "20Y2621510"]
  25.	20Y-26-22240	[3]	PIN Komatsu	0.367 kg.
  			["SN: C10001-UP"]
  27.	20Y-26-22110	[1]	GEAR¤ 22 TEETH Komatsu	0.4 kg.
  			["SN: C10001-UP"]
  28.	20Y-26-22230	[1]	THRUST WASHER Komatsu	0.1 kg.
  			["SN: C10001-UP"]
  29.	20Y-26-22410	[1]	COVER Komatsu China
  			["SN: C10001-UP"]
  30.	01011-81450	[4]	BOLT Komatsu China
  			["SN: C10001-UP"]
  31.	01643-31445	[4]	WASHER Komatsu	0.019 kg.
  			["SN: C10001-UP"] analogs:["0164301432"]
  32.	07042-30617	[1]	PLUG Komatsu China
  			["SN: C10001-UP"]
  33.	07042-30108	[1]	PLUG Komatsu	0.008 kg.
  			["SN: C10001-UP"] analogs:["0704220108"]
  34.	07042-30415	[1]	PLUG Komatsu	0.056 kg.
  			["SN: C10001-UP"]



​
