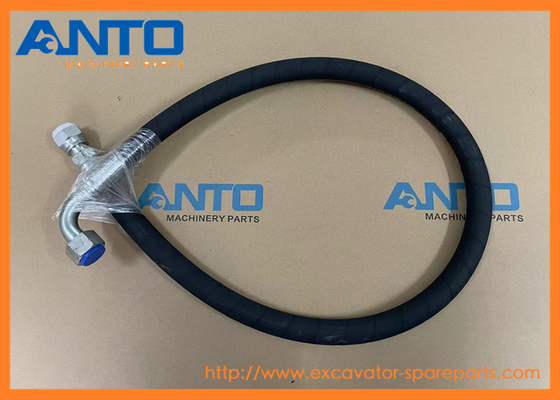

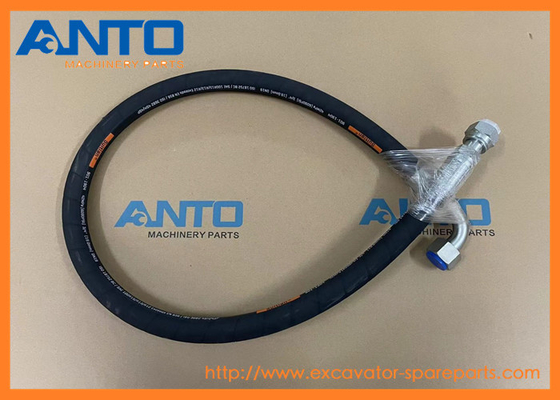

• 3668641 366-8641 Hose AS Used For Excavator Spare Parts 324D 324 D L

• Specification

• Applicable models

Excavator C A T 324D 324 D L

• More hose as supplied to C A T machine

  2699761 HOSE AS

  330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E L, 340D L, 340D2 L

  2302930 HOSE-RADIATOR

  330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

  2302931 HOSE-RADIATOR

  330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

  2302933 HOSE

  330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

  2302940 HOSE

  330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

  2302941 HOSE

  330D, 330D FM, 330D L, 330D LN, 330D MH, M330D

  2813515 HOSE

  330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L

  3244169 HOSE

  330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

  2236915 HOSE AS

  325C, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN

  2391892 HOSE AS

  330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L

  2026758 HOSE AS

  325C, 330C, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L

  1940105 HOSE AS

  330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN

  2486104 HOSE AS

  330D, 336D L, 336D LN, 345D, 349D L, OEMS

  1759592 HOSE AS

  330D, 336D L, 336D LN, 345D, 349D L, OEMS

  2486101 HOSE AS

  330D, 336D L, 336D LN, 345D, 349D L, OEMS

  2486100 HOSE AS

  330D, 336D L, 336D LN, 345D, 349D L, OEMS

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	8T-4192 CM	[2]	BOLT (M12X1.75X25-MM)
  2	113-6479	[1]	FLANGE-SPECIAL
  4	212-5491	[1]	SUPPORT AS
  5	218-1007	[1]	HOSE AS
  6	221-8859	[1]	SENSOR AS-PRESSURE (1-PUMP/2-PUMP, 1-WAY FLOW)
  	3E-3371	[1]	WEDGE-RECEPTACLE LOCK (3-PIN)
  	3K-0360	[1]	SEAL-O-RING
  	9X-3401	[3]	PIN-CONNECTOR (16-GA TO 18-GA)
  			-OR-
  	126-1767	[3]	PIN-CONNECTOR (14-GA TO 16-GA)
  	171-0596	[1]	RECEPTACLE AS-CONNECTOR (3-PIN)
  7	266-1278	[1]	BLOCK
  8	296-7024	[1]	BLOCK
  9	297-0265 Y	[1]	VALVE GP-SOLENOID & RELIEF (1-WAY, 2-WAY FLOW)
  10	323-7942 Y	[1]	VALVE GP-SOLENOID & RELIEF (1-WAY, 2-WAY FLOW)
  11	330-2446 I	[1]	HOSE AS
  12	366-8641 CI	[1]	HOSE AS
  13	366-8642 CI	[1]	HOSE AS
  14	330-2456 I	[1]	HOSE AS
  15	330-2457 I	[1]	HOSE AS
  16	330-2468	[2]	BRACKET
  18	330-2470	[1]	BLOCK
  20	333-7064	[1]	SUPPORT
  21	333-7065	[1]	SUPPORT
  22	333-7068 C	[2]	FLANGE
  23	333-7069	[1]	SUPPORT AS
  24	101-7401 M	[8]	BOLT-SOCKET HEAD (M10X1.5X20-MM)
  25	101-7404 M	[4]	BOLT-SOCKET HEAD (M10X1.5X30-MM)
  26	108-1782 M	[4]	BOLT-SOCKET HEAD (M12X1.75X90-MM)
  27	108-4282 M	[4]	BOLT-SOCKET HEAD (M10X1.5X100-MM)
  28	148-8330	[1]	CONNECTOR AS
  	5K-9090	[1]	SEAL-O-RING
  	7M-8485	[1]	SEAL-O-RING
  	8T-0198	[1]	CONNECTOR
  29	148-8387	[1]	ELBOW AS
  	6V-8400	[1]	SEAL-O-RING
  	6V-9855	[1]	ELBOW
  30	148-8411	[1]	PLUG AS
  	3K-0360	[1]	SEAL-O-RING
  	9S-4185	[1]	PLUG (3/4-16-THD)
  31	150-4049 C	[1]	ELBOW AS
  			(EACH INCLUDES)
  	6V-9746	[1]	SEAL-O-RING
  	7M-8485	[1]	SEAL-O-RING
  	8T-4149	[1]	ELBOW
  32	153-6237	[1]	ELBOW AS
  	3D-2824	[1]	SEAL-O-RING
  	6V-9746	[1]	SEAL-O-RING
  	6V-9004	[1]	ELBOW
  33	1P-3702	[4]	SEAL-RECTANGULAR
  34	1P-3703	[3]	SEAL-RECTANGULAR
  35	1P-3704	[1]	SEAL-RECTANGULAR
  36	1P-4578	[6]	FLANGE-HALF
  37	280-2747 M	[4]	BOLT-SOCKET HEAD (M10X1.5X60-MM)
  38	330-2448	[1]	ELBOW AS
  	2S-4078	[1]	SEAL-O-RING
  	6V-8400	[1]	SEAL-O-RING
  	199-1773	[1]	ELBOW
  39	4J-0522	[4]	SEAL-O-RING
  40	4J-5267	[1]	SEAL-O-RING
  41	5K-9090	[1]	SEAL-O-RING
  42	5P-7466 C	[1]	CLIP (SLOT)
  43	5P-7467 C	[1]	CLIP (TAB)
  44	5P-7470 J	[2]	CLIP (SLOT)
  			-OR-
  	5P-7468 CL	[2]	CLIP (SLOT)
  45	5P-7471 J	[2]	CLIP (TAB)
  			-OR-
  	5P-7469 CL	[2]	CLIP (TAB)
  46	5P-8182	[2]	GROMMET (46-MM ID)(65-MM)
  			-OR-
  	6V-0545	[2]	GROMMET (52-MM)
  47	6V-0400	[2]	FLANGE-HALF
  49	5P-8112 C	[1]	GROMMET
  51	6V-9746	[1]	SEAL-O-RING
  52	7Y-3729	[1]	FLANGE-SPECIAL
  53	8T-4121	[22]	WASHER-HARD (11X21X2.5-MM THK)
  54	8T-4136 M	[2]	BOLT (M10X1.5X25-MM)
  55	8T-4139 M	[10]	BOLT (M12X1.75X30-MM)
  56	8T-4182 M	[8]	BOLT (M10X1.5X45-MM)
  57	8T-4183 M	[2]	BOLT (M12X1.75X40-MM)
  58	8T-4186 M	[12]	BOLT (M10X1.5X40-MM)
  59	8T-4194 CM	[4]	BOLT (M12X1.75X50-MM)
  60	8T-4223	[25]	WASHER-HARD (13.5X25.5X3-MM THK)
  61	8T-4956 CM	[7]	BOLT (M12X1.75X35-MM)
  63	8T-9403	[4]	FLANGE-HALF
  64	148-8360 C	[1]	ELBOW AS
  	6V-9182	[1]	ELBOW
  	6V-9182	[1]	ELBOW
  	7M-8485	[1]	SEAL-O-RING
  65	366-8639 C	[1]	SUPPORT AS
  	C		CHANGE FROM PREVIOUS TYPE
  	I		REFER TO HYDRAULIC INFORMATION SYSTEM
  	J		FOR 65-MM GROMMET
  	L		FOR 52-MM GROMMET
  	M		METRIC PART
  	Y		SEPARATE ILLUSTRATION



• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
