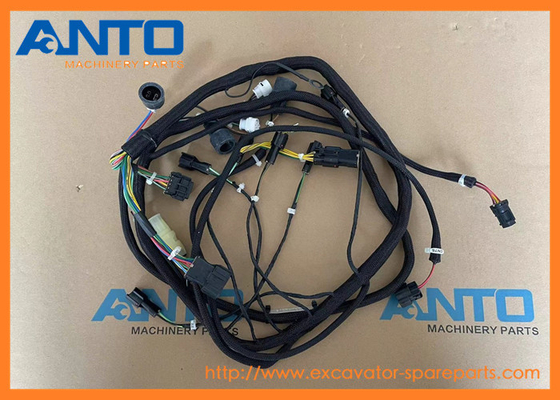

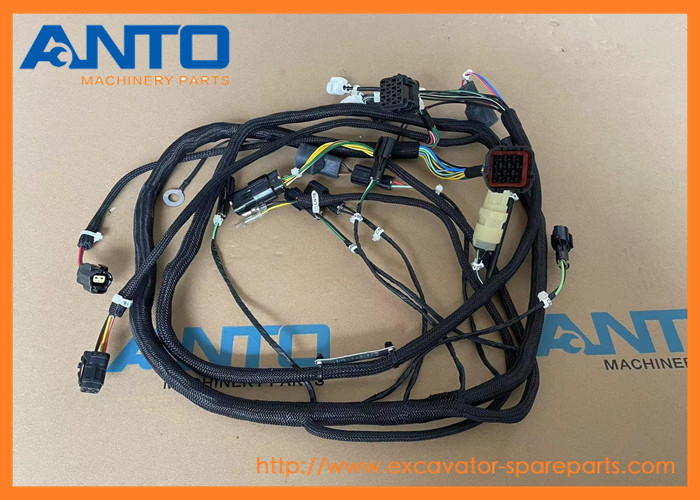

• 21ER10024 21ER-10024 Harness Applied For Hyundai Excavator Spare Parts Machine R200W3

• Specification

• Applicable models

Excavator Hyundai R200W3

• More harness supplied to Hyundai machine

  21EK-20200 HARNESS-REAR COMBI

  HL720-3, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3, HL730TM3C, HL730TM7, HL730TM7A, HL740-3, HL740-7, HL740-7A, HL740-7S, HL...

  21EA-00190 HARNESS-EXT,START RY

  H80, HL730-7, HL730TM7, HL740-7, HL740TM-7, HL757-7, HL757TM7, HL760-7, HL770-7, HX330L, R1200-9, R130W3, R140LC-7, R140W7, R170W3, R180LC3, R200NLC3, R200W3, R300LC9S, R305LC7, R320LC7, R320LC7A, R32...

  21EK-20250 HARNESS-N/PLATE LAMP

  HL720-3, HL720-3C, HL7303, HL7303C, HL730TM3, HL730TM3C, HL740-3, HL740-3ATM, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770, HL770-3, HL770-3ATM, HL780-3, HL7803A, R130W3...

  AM83303700-2 HARNESS-JUMP WIRE

  33HDLL, R130W3, R160LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R250LC3, R290LC3, R290LC3H, R320LC3, R360LC3, R360LC3H, R450LC3A

  21EA-60731 HARNESS-WIRE SWITCH

  R130W3, R170W3, R200W3, R95W3

  21EK-50010 HARNESS(1)-CAB

  33HDLL, 42HDLL, R130LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R290LC3, R290LC3H, R290LC3LL, R320LC3, R360LC3, R360LC3H, R450LC3, R450LC3A

  24L3-10420 HARNESS-REAR COMBI

  HL740-3, HL740TM-3, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770-3, HL770-3ATM, R200W3

  21ER-10012 HARNESS-FRAME

  R200W3

  21ER-10013 HARNESS-FRAME

  R200W3

  21ER-10014 HARNESS-FRAME

  R200W3

  21EM-30190 HARNESS-BOOM

  R200W3, R210LC3H, R250LC3, R290LC3H

  21ER-10002 HARNESS-MAIN

  R200W3

  21ER-10023 HARNESS-HYD

  R200W3

  21ER-10022 HARNESS-HYD

  R200W3

  21ER-10016 HARNESS-FRAME

  R200W3

  21ER-10015 HARNESS-FRAME

  R200W3

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	21ER-10012	[1]	HARNESS-FRAME
  1	21ER-10013	[1]	HARNESS-FRAME
  1	21ER-10014	[1]	HARNESS-FRAME
  1	21ER-10015	[1]	HARNESS-FRAME
  1	21ER-10016	[1]	HARNESS-FRAME
  1-1.	21ER-20010	[1]	COVER & DECAL-F/BOX	NOT SHOWN
  2	21ER-10022	[1]	HARNESS-HYD
  2	21ER-10023	[1]	HARNESS-HYD
  2	21ER-10024	[1]	HARNESS-HYD
  3	21EK-20250	[1]	HARNESS-N/PLATE LAMP
  3	21N4-11040	[1]	HARNESS-EXT
  5	S403-102006	[4]	WASHER-PLAIN
  6	21EK-10150	[4]	REFLECTOR-SIDE
  7	21EA-60521	[1]	HORN-LOW
  8	21EA-60531	[1]	HORN-HIGH
  9	S015-080166	[2]	BOLT-HEX
  10	S403-082006	[2]	WASHER-PLAIN
  11	S205-081006	[2]	NUT-HEX
  12	21E4-2003	[1]	BUZZER-TRAVEL ALARM
  13	S161-050166	[8]	SCREW
  14	S403-052006	[8]	WASHER-PLAIN
  15	21E9-00170	[29]	CLIP-HARNESS
  16	S017-100166	[31]	BOLT-HEX
  17	S403-102006	[31]	WASHER-PLAIN
  20	21EK-10160	[1]	LAMP-NUMBER PLATE
  21	21EK-10260	[1]	BULB
  22	S161-040166	[2]	SCREW
  23	S403-042006	[2]	WASHER-PLAIN
  24	21EK-10120	[2]	LAMP-HEAD
  25	21EK-10130	[2]	BULB
  26	21EK-10350	[2]	LAMP-FLASHER POSITION
  26-1.	21EK-10290	[1]	BULB	NOT SHOWN
  26-2.	21EK-10280	[1]	BULB	NOT SHOWN
  27	21EA-30460	[1]	LAMP ASSY-COMB,RR,RH
  27-1.	S861-172100	[2]	BULB(21W)	NOT SHOWN
  27-2.	S863-172105	[1]	BULB(21/5W)	NOT SHOWN
  28	21EA-30380	[2]	BRACKET-COMBI LAMP
  28	21EK-50060	[2]	BRACKET-COMBI LAMP
  29	S161-050252	[8]	SCREW
  29	S015-060202	[4]	BOLT-HEX
  30	21EA-30450	[1]	LAMP ASSY-COMB,RR,LH
  30-1.	S861-172100	[2]	BULB(21W)	NOT SHOWN
  30-2.	S863-172105	[1]	BULB(21/5W)	NOT SHOWN
  34	S431-100002	[4]	WASHER-INTERNAL T/LOCK
  35	24L1-30720	[1]	STRAP-EARTH
  37	S015-060166	[2]	BOLT-HEX
  38	S411-060006	[2]	WASHER-SPRING
  38	S411-060006	[6]	WASHER-SPRING
  39	S543-260002	[2]	CLAMP-TUBE
  40	21ER-10050	[1]	HARNESS-EXT	2PCS BOOM
  41	21E9-20200	[1]	HARNESS-EXT	Q/COUPLING
  57	21EK-10410	[2]	LAMP-TAIL STOP FLASHER
  57	24L3-10410	[2]	LAMP-TAIL STOP FLASHER
  57-1.	21EK-10180	[1]	LAMP-TAIL STOP FLASHER
  57-2.	21EK-20200	[1]	HARNESS-REAR COMBI
  57-2.	24L3-10420	[1]	HARNESS-REAR COMBI
  57-3.	21EK-10290	[2]	BULB
  57-4.	21EK-10270	[1]	BULB(5W)
