Product Details:
Payment & Shipping Terms:
|
| Category: | Console Box-Low Console Box-UP LH | Machine Model: | R110-7 R140W-7 R170W-7 R200W-7 |
|---|---|---|---|
| Application: | Excavator | Product Name: | Console Box |
| Part Number: | 73N620160 73N620140 | Packing: | Standard Export Carton |
| Application | 7 Series Wheel Excavator |
| Name | Console Box |
| Parts No | 73N620160 73N620140 |
| Machine Model | R140W-7 R170W-7 R200W-7 |
| Category | Console Box-Low Console Box-UP LH |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R250LC7 R250LC7A R290LC7 R290LC7A R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R450LC7 R450LC7A R500LC7 R500LC7A R80-7A R8007AFS R800LC7A RC215C7 RC215C7H Hyundai
| 73N6-20140 CONSOLE BOX UP-LH |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290... |
| 71N6-20440 CONSOLE BOX ASSY-RH |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250LC7, R250LC7A, R290... |
| 71N6-20171 CONSOLE BOX-UP(RH) |
| R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R500LC7A, R80-7 |
| 71N6-20172 CONSOLE BOX-UP(RH) |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250LC7, R250LC7A, R290... |
| 73N6-21040 CONSOLE BOX ASSY(RH) |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290... |
| 73N6-20150 CONSOLE BOX UP-RH |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290... |
| 91N6-07301 CONSOLE BOX TILTING |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290... |
| 92N6-07300 CONSOLE BOX TILTING |
| R110-7, R110-7A, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290L... |
| 71N4-20430 CONSOLE BOX ASSY-LH |
| R140LC-7, R140LC-7A, R140W7, R140W7A, R170W7, R170W7A, R200W7, R200W7A |
| 71N4-20130 CONSOLE BOX-UP(LH) |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 73N6-21010 | [1] | CONSOLE BOX ASSY(LH) | UPGRADE CABIN |
| 1 | 73N6-21020 | [1] | COVER-C/LOW ASSY | |

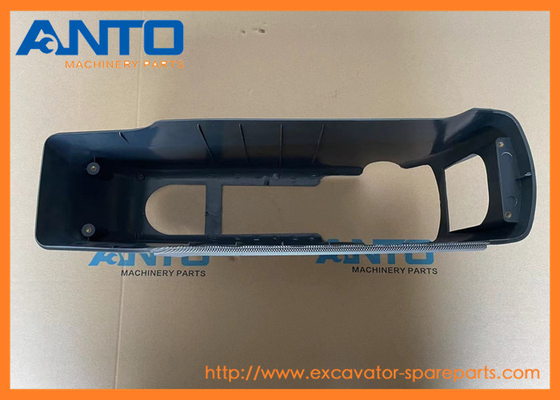

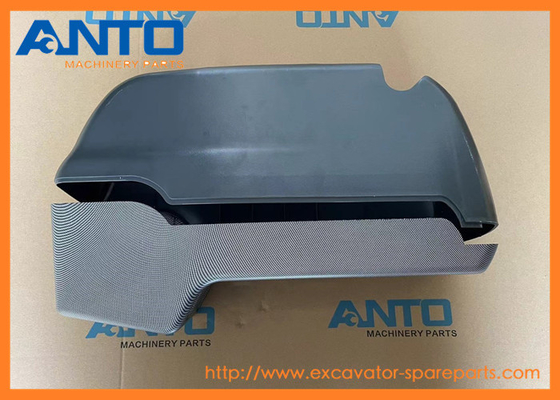

| 1-1. | 73N6-20160 | [1] | CONSOLE BOX-LOW | |
| 1-2. | 73N6-20230 | [1] | PANEL-CONSOLE DECO | |
| 2 | 73N6-21030 | [1] | FRAME-C/BOX(LH) | |
| 2-1. | 71N4-21320 | [1] | PLATE-TILT | |
| 2-2. | S015-060146 | [4] | BOLT-HEX | |
| 2-3. | S403-06200B | [4] | WASHER-PLAIN | |
| 2-4. | S731-020025 | [2] | BUSHING-DU | |
| 3 | 71N4-20090 | [1] | TILT CATCH ASSY | |
| 3-1. | 71N4-21420 | [1] | TILT CATCH-LOW | |
| 3-2. | 71N4-21450 | [1] | TILT CATCH-UP | |
| 3-3. | 71N6-21460 | [1] | SPRING | |
| 3-4. | 71N6-21470 | [1] | PIN | |
| 3-5. | P560-090002 | [1] | RETAINING RING-E TYPE | |
| 4 | 71N6-20100 | [1] | CABLE-PULL | |
| 5 | 71N4-20120 | [1] | TILT LEVER ASSY | |
| 5-1. | 71N4-21480 | [1] | BRACKET-LOW | |
| 5-2. | 71N6-21510 | [1] | BRACKET-UP | |
| 5-3. | P560-100006 | [1] | RETAINING RING-E TYPE | |
| 6 | 21N8-20300 | [1] | SWITCH-MICRO | |

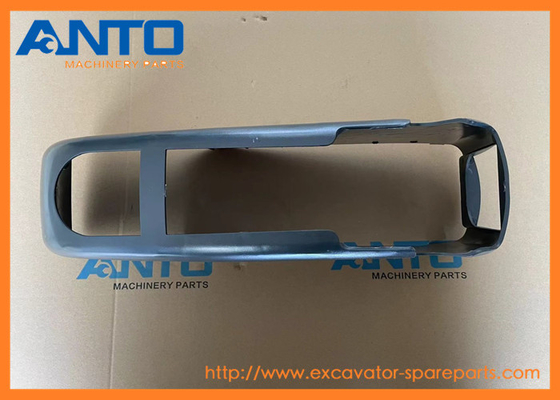

| 7 | 73N6-20140 | [1] | CONSOLE BOX UP-LH | |
| 8 | 71N6-20141 | [1] | SAFETY BRACKET ASSY | |
| 8-1. | 71N6-21521 | [1] | BRACKET-LOW | |
| 8-2. | 71N6-21560 | [1] | BRACKET-UP | |
| 8-3. | 71N6-21610 | [1] | SPRING | |
| 8-4. | S731-020010 | [1] | BUSHING-DU | |
| 9 | S015-050206 | [4] | BOLT-HEX | |
| 10 | S403-05200B | [8] | WASHER-PLAIN | |
| 11 | S161-060136 | [4] | SCREW-CROSS R/ROUND | |
| 12 | S403-06200B | [9] | WASHER-PLAIN | |
| 13 | S491-060156 | [1] | PIN-CLEVIS | |
| 14 | S461-080202 | [1] | PIN-SPLIT | |
| 15 | S161-060166 | [2] | SCREW-CROSS ROUND | |
| 16 | S161-050166 | [4] | SCREW-CROSS R/ROUND | |
| 17 | S175-060162 | [3] | SCREW-SOCKET RD HD | |
| 18 | S161-030162 | [2] | SCREW-CROSS R/ROUND | |
| 19 | 73N6-20200 | [1] | RING-SAFETY LEVER |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
