Product Details:
Payment & Shipping Terms:
|
| Category: | Reduction | Machine Model: | CX500D RTC CX500D LC |
|---|---|---|---|

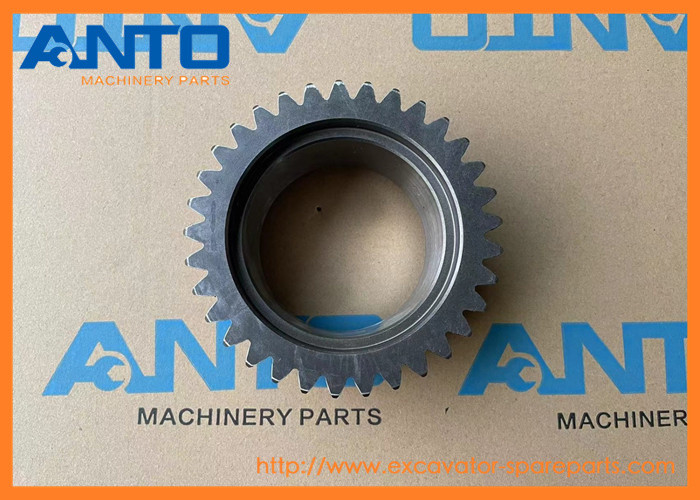

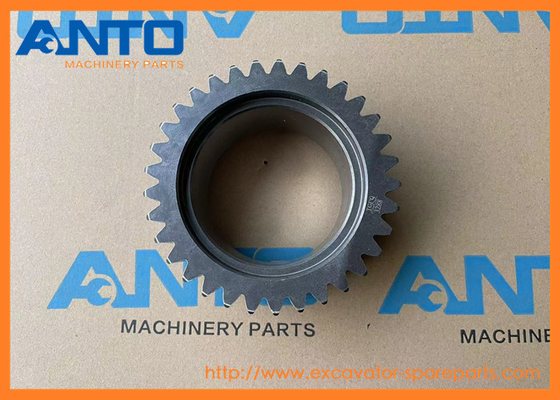

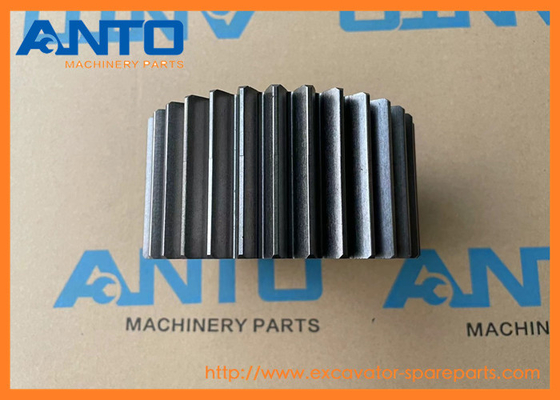

| Application: | Standard Crawler Excavator | Product Name: | Sun Gear |
| Part Number: | LC00163 | Packing: | Standard Export Carton |
| Application | Standard Crawler Excavator |
| Name | Sun Gear |
| Parts No | LC00163 |
| Machine Model | CX160B CX160C CX210 CX225SR |
| Category | Reduction |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
HEAVY EQUIPMENT CX160B CX160C CX160D LC CX210 CX210B CX210BLR CX210BNLC CX210C LC CX210C LR CX210C NLC CX210D LC CX210D LC LR CX210D NLC CX210LR CX210N CX225SR CX235C SR CX240 CX240B CX240BLR CX240LR CX250C CX250D LC CX250D LC LR
| LC00164 SUN GEAR |
| CX210LR, CX210N, CX225SR, CX240, CX240LR, CX210 |
| LC00165 SUN GEAR |
| CX210LR, CX210N, CX225SR, CX240, CX240LR, CX210 |
| LC00166 SUN GEAR |
| CX210LR, CX210N, CX225SR, CX240, CX240LR, CX210 |
| LC00222 SUN GEAR |
| CX210LR, CX210N, CX210B, CX210C LC, CX225SR, CX210C LR, CX210D LC LR, CX210BNLC, CX210C NLC, CX210D NLC, CX235C SR, CX210 |
| LC002880 SUN GEAR |
| CX240BLR, CX250C, CX250D LC LR, CX160B, CX160C, CX160D LC, CX210B, CX210C LC, CX210D LC, CX210BLR, CX210C LR, CX210D LC LR, CX225SR, CX210BNLC, CX210C NLC, CX210D NLC, CX240B, CX235C SR, CX250D LC |
| KBC0089 SUN GEAR |
| CX240LR, CX240 |
| KBC0143 SUN GEAR |
| CX240LR, CX240 |
| KHN17380 SUN VISOR |
| CX250C, CX300C, CX350C, CX470C, CX130D, CX130B, CX130D LC, CX160B, CX160D LC, CX210B, CX210D LC, CX210BLR, CX210D LC LR, CX210BNLC, CX210D NLC, CX240B, CX250D LC, CX250D LC LR, CX290B, CX300D LC, CX35... |
| LC002830 SUN GEAR |
| CX240BLR, CX250C, CX250D LC LR, CX240B, CX250D LC |
| KHN16250 SUN VISOR |
| CX300C, CX470C, CX130D, CX130D LC, CX160D LC, CX210D LC, CX210D LC LR, CX210D NLC, CX250D LC, CX250D LC LR, CX290B, CX300D LC, CX350D LC, CX470B, CX490D LC, CX700B, CX490D RTC, CX800B, CX500D LC, CX13... |
| KHN30530 SUN VISOR |
| CX145C SR, CX235C SR |
| KHN39600 SUN VISOR |
| CX500D RTC, CX250D LC LR, CX130D LC, CX750D RTC, CX300D LC, CX160D LC, CX750D RTC ME, CX350D LC, CX210D LC, CX490D LC, CX210D LC LR, CX490D RTC, CX210D NLC, CX500D LC, CX250D LC, CX130D |
| Pos. | Part No | Qty | Parts name | Comments |
| . . | KRA1426 | [1] | MOTO-REDUCTION GEAR | SUM Travel; Incl. 96 - 135; Also Incl. Parts On Figure(s) 06-03, 06-04 Superseded by part number: KRA10120 |
| . . | KRA1860 | [1] | MOTO-REDUCTION GEAR | SUM Travel; Incl. 96 - 135; Also Incl. Parts On Figure(s) 06-03, 06-04 Superseded by part number: KRA10120 |
| 96 | NSS | [2] | NOT SOLD SEPARAT | CON Seal, Floating (Included in Seal Kit LZ00652) |
| 97 | LB00548 | [2] | BEARING | SUM |
| 99 | LH00254 | [1] | SHIM KIT | SUM |
| 105 | LS00129 | [1] | HOLDER | SUM |
| 106 | LA00702 | [8] | WASHER | SUM |
| 107 | LA00703 | [8] | BOLT | SUM |
| 108 | LR00583 | [4] | PLATE | SUM |
| 109 | LB00549 | [4] | RING RACE | SUM |
| 110 | LB00550 | [4] | BEARING | SUM |
| 111 | LC00163 | [4] | SUN GEAR | SUM |
| 112 | LR00584 | [4] | PLATE | SUM |
| 113 | LA00704 | [4] | BOLT | SUM |
| 114 | LC00164 | [1] | SUN GEAR | SUM |
| 115 | LA00705 | [1] | RING, SNAP | SUM RING SNAP |
| 116 | LS00130 | [1] | HOLDER | SUM |
| 117 | LR00585 | [3] | PLATE | SUM |
| 118 | LB00551 | [3] | RING RACE | SUM |
| 119 | LB00552 | [3] | BEARING | SUM |
| 120 | LC00165 | [3] | SUN GEAR | SUM |
| 121 | LR00586 | [3] | PLATE | SUM |
| 122 | LR00587 | [1] | PLATE | SUM |
| 123 | LV00029 | [3] | SCREW | SUM |
| 124 | LC00166 | [1] | SUN GEAR | SUM |
| 125 | LR00588 | [1] | DISC | SUM |
| 131 | LW005570 | [1] | COVER | SUM Replaces LW00316 Superseded by part number: LW006290 |
| 132 | 108R010Z016N | [16] | BOLT | SUM |
| 133 | 165681A1 | [3] | PLUG | SUM |
| 134 | 154503A1 | [3] | O-RING | SUM |
| 135 | 160104A1 | [4] | PIN | SUM |
| . . | LZ00652 | [1] | SEAL KIT | SUM Floating; Incl Ref 96, 134 Superseded by part number: LZ010600 |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
