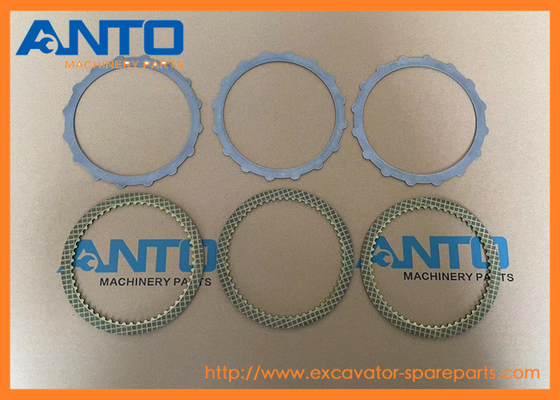

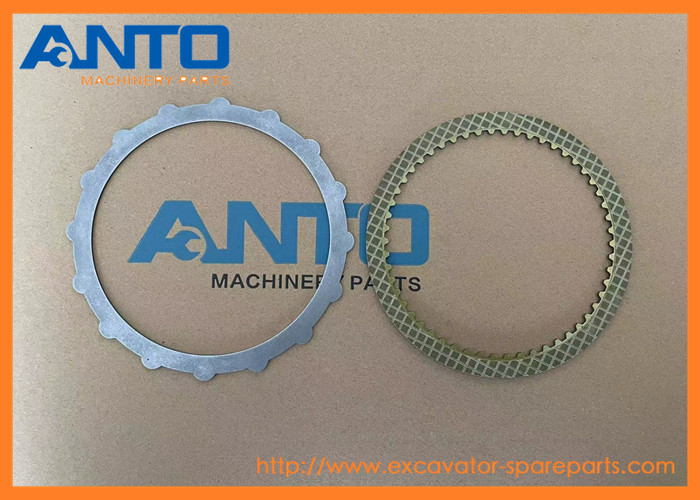

LQ15V00015S008 LQ15V00015S009 Plate KOBELCO Spare Parts For SK250-6E SG08

LQ15V00015S008 LQ15V00015S009 Plate KOBELCO Spare Parts For SK250-6E SG08
LQ15V00015S008 LQ15V00015S009 Plate KOBELCO Spare Parts For SK250-6E SG08 LQ15V00015S008 LQ15V00015S009 Plate KOBELCO Spare Parts For SK250-6E SG08

Large Image :  LQ15V00015S008 LQ15V00015S009 Plate KOBELCO Spare Parts For SK250-6E SG08

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: SK250-6E
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: 34 USD
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
Detailed Product Description
Category: Swing Motor Assembly Machine Model: SK250-6E SG08
Application: Heavy Equipment Product Name: Plate
Part Number: LQ15V00015S008 LQ15V00015S009 Packing: Standard Export Carton

  • LQ15V00015S008 LQ15V00015S009 Plate KOBELCO Spare Parts For SK250-6E SG08





  • Specification
Application Heavy Equipment
Name plate
Parts No LQ15V00015S008 LQ15V00015S009
Machine Model SK250-6E SG08
Category Swing Motor Assembly Parts
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing





  • Compatible models

HEAVY EQUIPMENT SK235SR-1E SK235SR-1ES SK235SR-2 SK235SRLC-1E SK235SRLC-1ES SK235SRLC-2 SK235SRNLC-1E SK235SRNLC-1ES SK250LC-6E SK260 SK485-8 SK485-9 SK485LC-9 Kobelco





  • More other plate parts fit for KOBELCO machine
LQ15V00007S092 PLATE
SK235SR-1E, 230SR-3, SK235SR-1ES, 260SR-3, SK235SR-2, SK210-9, SK235SRLC, SK235SRLC-1E, SK235SRLC-1ES, SK210LC-6E, SK235SRLC-2, SK235SRNLC-1E, SK250LC, SK250LC-6E, SK260, SK235SRNLC-1ES, SK260-9

LQ15V00007S096 PLATE
SK235SR-1E, 230SR-3, SK235SR-1ES, 260SR-3, SK235SR-2, SK210-9, SK235SRLC, SK235SRLC-1E, SK235SRLC-1ES, SK210LC-6E, SK235SRLC-2, SK235SRNLC-1E, SK250LC, SK250LC-6E, SK260, SK235SRNLC-1ES, SK260-9

LQ15V00020S088 PLATE
SK170-9, SK260, SK170 ACERA M-9, 230SR-3, 260SR-3, SK235SRLC-2, SK235SR-2, SK210-9, SK235SR-1E, SK260-9

LQ15V00007S060 PLATE
SK235SR-1E, 230SR-3, SK235SR-1ES, 260SR-3, SK210-9, SK235SRLC, SK235SRLC-1E, SK235SRLC-1ES, SK210LC-6E, SK235SRNLC-1E, SK250LC, SK250LC-6E, SK235SRNLC-1ES, SK260-9, SK170 ACERA M-9, SK170-9, SK235SR

YN15V00005S105 PLATE
SK235SRLC-1E, SK235SR-1E, SK235SRNLC-1E, SK235SRNLC-1ES, SK235SRLC-1ES, SK210LC-6E, SK235SR-1ES, SK235SR, SK235SRLC, SK250LC, SK250LC-6E

LQ15V00007S087 PLATE
SK235SRLC-1E, SK235SR-1E, SK235SRNLC-1E, SK235SRNLC-1ES, SK235SRLC-1ES, SK210LC-6E, SK235SR-1ES, SK235SR, SK235SRLC, SK250LC, SK250LC-6E

LQ15V00007S097 PLATE
SK235SRLC-1E, SK235SR-1E, SK235SRNLC-1E, SK235SRNLC-1ES, SK235SRLC-1ES, SK210LC-6E, SK235SR-1ES, SK235SR, SK235SRLC, SK250LC, SK250LC-6E

LQ15V00007S046 PLATE
SK235SRNLC-1E, SK235SRLC-1E, SK235SR-1E, SK235SRNLC-1ES, SK235SRLC-1ES, SK235SR-1ES, SK250LC-6E

LQ15V00020S043 PLATE
SK260, SK260-9, 260SR-3, SK235SRLC-2, SK235SR-2, SK235SR-1E

LQ15V00020S074 PLATE
SK235SR-2, SK235SRLC-2, SK260, SK235SR-1E

LC10V00010S153 PLATE
SK295-9, SK260, SK260-9, SK330LC-6E, SK350-9, SK350-8, SK295-8

LE60C01029P1 PLATE
SK235SRLC-1E, SK235SR-1E, SK235SRNLC-1E, SK215SRLC, SK235SRNLC-1ES, 230SR-3, SK235SRLC-1ES, SK235SR-1ES, SK235SRLC-2, SK235SR-2, 260SR-3





  • Catalog parts list
Pos. Part No Qty Parts name Comments
. . LQ15V00015F2 [1] HYDRAULIC MOTOR,151CC KOB ASSY-Swing
1 LQ15V00015S001 [1] SNAP RING KOB
2 LQ15V00015S002 [1] OIL SEAL KOB SPRING
3 LQ15V00015S003 [1] ROLLER BEARING KOB ROLLER
4 LQ15V00015S004 [1] SPRING SEAT KOB SPRING
5 LQ15V00015S005 [1] PLATE KOB
6 LQ15V00015S006 [1] PLATE KOB
7 NSS [9] NOT SOLD SEPARAT CON PISTON
8 LQ15V00015S008 [3] PLATE KOB
9 LQ15V00015S009 [3] PLATE KOB
10 LQ15V00015S010 [1] O-RING KOB Superseded by part number: 45Z91D91
11 LQ15V00015S011 [1] PISTON KOB PISTON
12 LQ15V00015S012 [1] O-RING KOB
13 LQ15V00015S013 [19] SPRING KOB
14 LQ15V00015S014 [2] PISTON KOB
15 2436U1309S41 [3] CAP KOB PLUG
16 ZD12P01100 [3] O-RING KOB ID 10.8mm x OD 13.2mm
17 2441U455S53 [2] PIN KOB
18 LQ15V00015S018 [4] WASHER, LOCK KOB
19 LQ15V00015S019 [4] RING KOB
20 LQ15V00015S020 [4] BUSHING KOB
21 LQ15V00015S021 [1] PLATE KOB
22 LQ15V00015S022 [1] NEEDLE BEARING,45mm ID x 33mm OD x 20mm W KOB NEEDLE
23 LQ15V00015S023 [1] RING KOB RETAINING
24 NSS [1] NOT SOLD SEPARAT CON CYLINDER
25 NSS [1] NOT SOLD SEPARAT CON CASE
26 LQ15V00015S026 [1] RING KOB COLLAR
27 LQ15V00015S027 [1] SNAP RING KOB RETAINING
28 LQ20V00001F1 [2] HYDRAULIC VALVE KOB
29 LQ15V00015S029 [1] O-RING,183.74mm ID x 3.53mm Width KOB
32 NSS [1] NOT SOLD SEPARAT CON COVER
33 LQ22V00002F1 [2] HYDRAULIC VALVE KOB RELIEF
35 ZS23C16060 [4] SCREW,Hex Socket Head, M16 x 60mm KOB M16x2.0x60mm
36 2441U962S45 [2] CHECK VALVE KOB
37 2441U962S46 [2] SPRING KOB
38 2441U962S48 [2] PLUG KOB
39 ZD85P02600 [2] BACK-UP RING KOB ID 26 x OD 32 x Th 1.25mm
40 LP15V00002S027 [1] PLUG KOB
41 PH15V00004S013 [2] PISTON KOB
42 PH15V00004S012 [2] RING KOB

LQ15V00015S008 LQ15V00015S009 Plate KOBELCO Spare Parts For SK250-6E SG08 0







  • We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage



1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
