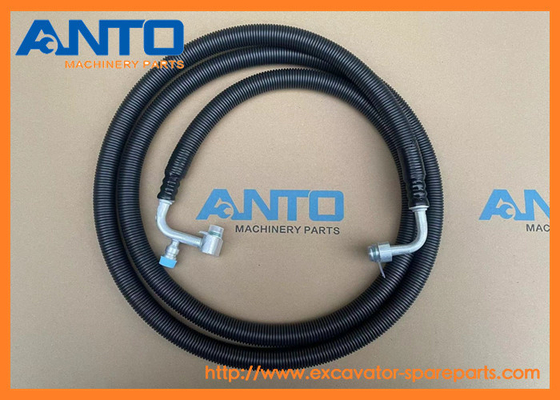

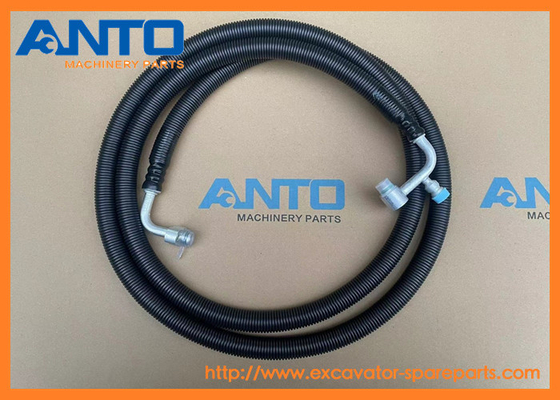

• 3276548 327-6548 Tube AS Used For Excavator Spare Parts 330D 330D FM 330D L 330D LN

• Specification

• Applicable models

Excavator C A T 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L

• More tube as supplied to C A T machine

  1979367 TUBE AS

  12H, 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521...

  1932162 TUBE AS

  12H, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 627G, 637D, 637G, 973C, 973D, C-9, C9, D6R II, M330D, MTC735, TK711, TK721, TK722, TK732, T...

  5P6004 TUBE-FUMES DISPOSAL

  206, 225, 313B, 314C, 321C, 325D MH, 330D, 330D MH, 345C MH, 428, 950, AP-800, M318D MH, M322D MH

  3755764 TUBE AS

  336D

  3755765 TUBE AS

  336D

  3900873 TUBE AS

  336D

  3900874 TUBE AS

  336D

  4334691 TUBE AS

  336D

  4334688 TUBE AS

  336D

  4334689 TUBE AS

  336D

  4334690 TUBE AS

  336D

  4189212 TUBE AS

  336D, 336D2

  2181175 TUBE AS

  330C, 330C L, 330D, 330D L, 330D LN, 336D L, 336D LN, M330D

  2181174 TUBE AS

  330C, 330C L, 330D, 330D L, 330D LN, 330D MH, 336D L, 336D LN, M330D

  2181173 TUBE AS

  330C, 330C L, 330D, 330D L, 330D LN, 336D L, 336D LN, M330D

  2181172 TUBE AS

  330C, 330C L, 330D, 330D L, 330D LN, 330D MH, 336D L, 336D LN, M330D

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	3S-8536	[1]	SPACER (0.406X0.656X0.38-IN THK)
  2	7I-2673	[2]	STRAP-CABLE
  4	122-9657	[2]	CLAMP
  5	176-1902	[1]	DRYER AS-REFRIGERANT (RECEIVER)
  6	189-3434	[1]	ELBOW
  7	235-8891	[1]	PLATE
  8	235-9014 L	[4]	CLAMP-SPRING
  			-OR-
  	5D-1026 L	[4]	CLAMP-BAND
  9	327-6548	[1]	TUBE AS
  	121-7137	[1]	SEAL-O-RING
  10	240-5043	[1]	HOSE AS
  	121-7138	[2]	SEAL-O-RING
  	196-1665	[1]	SWITCH AS-PRESSURE (REFRIGERANT)
  	185-8293	[1]	SEAL-O-RING
  11	240-5044	[1]	HOSE AS
  	121-7136	[2]	SEAL-O-RING
  	245-7851	[1]	CAP
  12	327-6549	[1]	HOSE AS
  	121-7137	[2]	SEAL-O-RING
  	245-7850	[1]	CAP
  13	245-7928	[1]	HOSE AS
  	121-7138	[2]	SEAL-O-RING
  14	273-5428	[1]	GUARD
  15	104-3173	[8]	CLIP
  16	121-7098	[1]	BRACKET AS
  	8T-4138 M	[2]	BOLT (M6X1X20-MM)
  	9X-8256	[2]	WASHER (6.6X12X2-MM THK)
  17	130-0252	[2]	HOSE-DRAIN
  18	1S-0994	[1]	CLIP (LOOP)
  19	177-2215	[1]	STRAP-DUAL CLAMP
  20	3K-0360 C	[3]	SEAL-O-RING
  21	4I-3503	[1]	GROMMET
  22	6V-3265	[1]	CLIP
  23	383-5686	[2]	ADAPTER (HEATER, LINES)
  24	6V-7357 M	[4]	BOLT (M6X1X25-MM)
  25	7Y-8165	[1]	GROMMET
  26	7Y-8167	[1]	GROMMET (50-MM ID)
  27	8M-2773	[5]	CLIP (LOOP)
  28	8T-4121	[15]	WASHER-HARD (11X21X2.5-MM THK)
  29	8T-4137 M	[13]	BOLT (M10X1.5X20-MM)
  30	8T-4191 M	[1]	BOLT (M10X1.5X16-MM)
  31	8T-4195 M	[1]	BOLT (M10X1.5X30-MM)
  32	8T-4200 M	[2]	BOLT (M8X1.25X16-MM)
  33	8T-4224	[2]	WASHER-HARD (8.8X16X2-MM THK)
  34	8T-4971 M	[2]	BOLT (M6X1X30-MM)
  35	9X-8256	[7]	WASHER (6.6X12X2-MM THK)
  36	5P-0767 E		HOSE (400-CM)
  36A.	5P-0767 E		HOSE (360-CM)
  37	7K-1181	[1]	STRAP-CABLE
  38	132-5789	[1]	CLIP (LADDER)
  39	225-5714 E		GUARD (65-CM)
  40	293-1135 E		GUARD (15-CM)
  41	7X-2533 M	[1]	BOLT (M6X1X35-MM)
  			-OR-
  	8T-4971 M	[1]	BOLT (M6X1X30-MM)
  42	305-0441	[2]	BAND-MARKER (HS)
  43	305-0442	[2]	BAND-MARKER (HR)
  	C		CHANGE FROM PREVIOUS TYPE
  	E		ORDER BY THE CENTIMETER
  	L		THESE PARTS ARE DIRECTLY INTERCHANGEABLE
  	M		METRIC PART



• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
