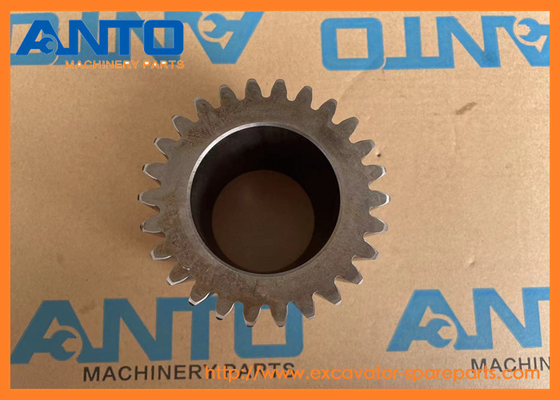

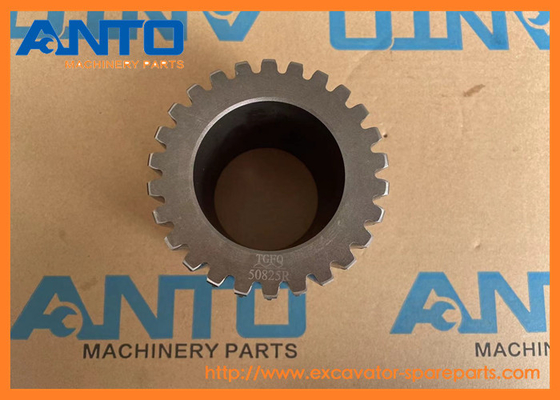

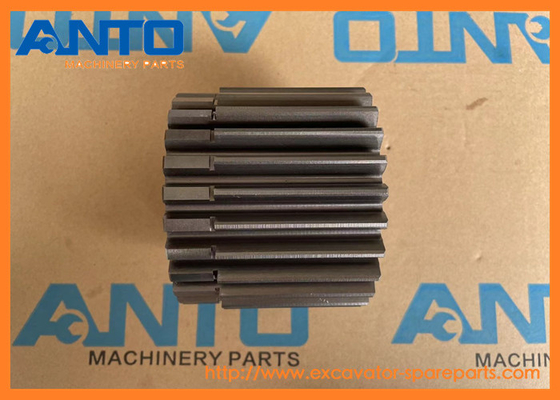

3063959 Sun Gear Fit HITACHI Excavator EX200-3 EX200-3C EX200-3E EX200

• 3063959 Sun Gear Fit HITACHI Excavator EX200-3 EX200-3C EX200-3E EX200

• Specification

• Applicable models

EXCAVATORS HITACHI

EX200-3 EX200-3C EX200-3E EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE EX200-5LV

JAP EX200-5X JPN EX200-5Z JPN EX200K-3 EX200LC-5HHE EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX2.

• catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  	9150472	[2]	TRAVEL DEVICE ASS'Y	I 9155253 (for assembly of machine)
  	-9155253	[2]	TRAVEL DEVICE ASS'Y	(for transportation)
  0	9146471	[1]	MOTOR;OIL	I 9149087 (for assembly of machine)
  0	-9149087	[1]	MOTOR;OIL	(for transportation)
  2	4114753	[1]	SEAL;GROUP
  3	4246793	[2]	BRG.;ROL.
  4	1018736	[1]	DRUM
  5	1018740	[1]	SPROCKET
  6	J932055	[16]	BOLT
  7	A590920	[16]	WASHER;SPRING
  8	3047448	[1]	HUB
  9	3057125	[1]	NUT
  10	4246783	[1]	PIN;KNOCK
  12	1019147	[1]	CARRIER
  13	3063957	[3]	GEAR;PLANETARY
  14	4317122	[6]	BRG.;NEEDLE
  15	4284521	[6]	PLATE;THRUST
  16	4315838	[3]	PIN
  17	4116309	[3]	PIN;SPRING
  18	3063959	[1]	GEAR;SUN
  20	1020184	[1]	GEAR;RING
  21	J931640	[24]	BOLT
  23	2034836	[1]	CARRIER
  24	4401293	[2]	SPACER
  25	3063956	[3]	GEAR;PLANETARY
  26	4317121	[3]	BRG.;NEEDLE
  27	4210851	[6]	PLATE;THRUST
  28	4309995	[3]	PIN
  29	4192020	[3]	PIN;SPRING
  30	3063958	[1]	GEAR;SUN
  32	2034835	[1]	CARRIER
  33	3063955	[3]	GEAR;PLANETARY
  34	4387383	[3]	BRG.;NEEDLE
  35	4192910	[6]	PLATE;THRUST
  36	4210853	[3]	PIN
  37	4173093	[3]	PIN;SPRING
  38	2034834	[1]	SHAFT;PROP.
  40	2034833	[1]	COVER
  41	4285323	[1]	PIN;STOPPER
  41	4478346	[1]	PIN;STOPPER
  42	J011230	[12]	BOLT;SEMS
  42	4609016	[12]	BOLT;SEMS
  43	4245797	[3]	PLUG
  47	M492564	[2]	SCREW;DRIVE
  48	+++++++	[1]	NAME-PLATE



• More gear we supply for HITACHI machine

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
