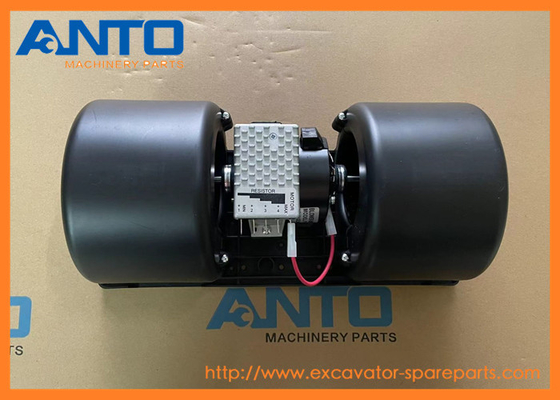

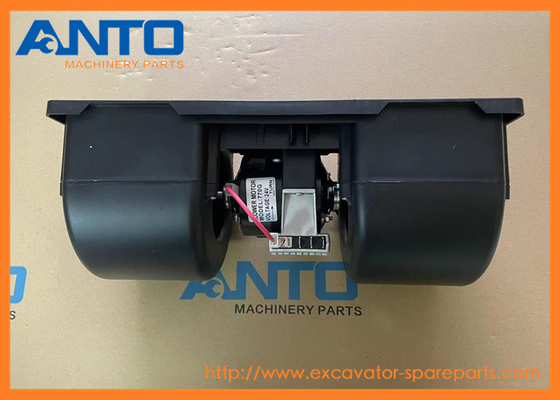

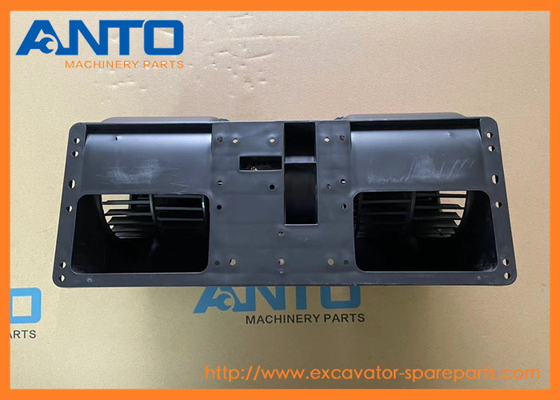

• 2756706 275-6706 Motor AS-Blower Used For Truck Spare Parts 725 725C 730 730C 735

• Specification

• Applicable models

ARTICULATED TRUCK 725 725C 730 730C 735 735B 740 740B
COMPACT WHEEL LOADER 914G
EJECTOR TRUCK 730 730C 740 740B
INTEGRATED TOOLCARRIER IT14G IT14G2 IT28G IT38G IT38G II IT38H
PIPELAYER 583T 587R 587T PL61 PL83 PL87
TRACK-TYPE TRACTOR D6K D6K LGP D6K2 D6K2 LGP D6N LGP D6R D6R III D6T D6T LGP D6T LGPPAT D7R XR
TRUCK 770 770G 770G OEM 772 772G 772G OEM
VIBRATORY COMPACTOR CP-433E CP-44 CP-533E CP-54B CP-56 CP-573E CP-64 CP-663E CP-68B

CP-74B CP-76 CS-423E CS-433E CS-44 CS-533E CS-54 CS-54B CS-563E CS-56B CS-583E CS-64 CS-663E

CS-683E CS-68B CS-74 CS-74B CS-78B
WHEEL LOADER 924G 924GZ 924H 924HZ 924K 928G 928H 930G 930K 938G 938G II 938H 938K 950K 962K

966K 972K 980G II 980H 980K 980K HLG
WHEEL TRACTOR 621G 623G 627G 631G 637G 657G
WHEEL TRACTOR-SCRAPER 613G

• More motor supplied to C A T machine

  1741490 MOTOR AS-ELECTRIC

  416B, 416C, 426C, 428B, 428C, 436C, 438C, 446B, 65C, 65E, 75C, 75D, 75E, 85C, 85D, 85E, 928G, 933, 933C, 939, 939C, 95E, D3C III, D4C III, D5C III

  1741486 MOTOR AS-BLOWER

  30/30, 307, 307B, 312, 312B L, 315, 315B L, 317, 317B LN, 318B, 320B, 322B L, 322B LN, 325B L, 325D FM LL, 330, 330B L, 330D FM, 345B, 345B II, 345B II MH, 345B L, 350, 365B, 365B II, 375, 375 L, 385B...

  1350611 MOTOR GP-WINDOW WIPER

  120H, 120K, 120K 2, 120M, 120M 2, 12H, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 140H, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 14H, 14M, 160H, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H...

  1129565 MOTOR AS-BLOWER

  307, 312, 315, 317, 322 FM L, 330, 330 L, 350, 375, 375 L, 5080, 769D, 771D, 773D, 775D, 776D, 777D, 914G, 924G, 928G, 938G, IT14G, IT28G, IT38G

  1741494 MOTOR AS-BLOWER

  120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 140H, 140H ES, 140H NA, 160H, 160H ES, 160H NA, 312B L, 315B L, 317B LN, 318B, 375 L, 5130, 5230, 611, 613C II, 615C, 621F, 621G, 623F, 623G, 627F, 6...

  3086335 MOTOR GP-ELECTRIC

  135H, 135H NA, 143H, 14H, 14H NA, 160H ES, 160H NA, 163H NA, 517, 527, 539, 572R, 816F, 816F II, 824H, 826C, 826G, 826G II, 826H, 834G, 834H, 836, 836G, 836H, 950H, 953C, 963C, 966H, 973C, 988G, 988H,...

  1741495 MOTOR GP-ELECTRIC

  824G II, 826G II, 836, 910G, 914G, 928G, 953C, 963B, 966G II, 973, 980G, 980H, D5M, D6M, D6R II, D8R, D8R II, IT14G, IT28G

  3161927 MOTOR AS-BLOWER

  120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 14H, 14H NA, 160H, 160H ES, 160H NA, 163H, 163H NA, 16H, 16H NA, 24H, 611, 613C II, 615C, 621F, 621G, 621H, 62...

  2056029 MOTOR AS-ELECTRIC

  550, 550B, 560B, 570, 570B, 580, 580B, 824G, 825G, 938G, 938G II, 938H, 950G, 950G II, 950H, 962G, 962G II, 962H, 966G, 966G II, 966H, 972G, 972G II, 972H, 980G, 980G II, IT38G, IT38G II, IT38H, IT62G...

  1649206 MOTOR AS-BLOWER

  320B, 325B L, 330B L, 924GZ, 938G, CS-531D, CS-563D, CS-583D, IT38G

  2688792 MOTOR

  D6H, D6H XL, D6H XR, D8N

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	3E-5464	[1]	SWITCH AS-THERMOSTAT (HVAC)
  2	8C-3756	[1]	FILM-IDENTIFICATION (AIR CONDITIONER)
  3	134-3518	[2]	TIE-PUSH MOUNT
  4	239-9368	[1]	RESISTOR AS
  5	247-8302	[8]	RIVET
  6	257-5029	[1]	RESISTOR AS
  7	259-3222	[1]	FILTER ELEMENT-AIR (STANDARD EFFICIENCY)(CAB)
  			-OR-
  	266-7765	[1]	FILTER ELEMENT-AIR (STANDARD EFFICIENCY)(CAB)
  8	275-6656	[1]	AS
  	6V-9632 M	[16]	NUT-WELD (M6X1-THD)
  	8T-3490 M	[5]	NUT-WELD (M10X1.5-THD)
  	165-8718 M	[4]	NUT-WELD (M4X0.7-THD)
  9	275-6658 Y	[1]	PAN GP-DRAIN (AIR CONDITIONER)
  10	275-6660	[1]	HARNESS AS-MOTOR (AIR CONDITIONER)
  	2U-4729	[1]	GROMMET-BLIND
  	8T-8729	[7]	PIN-CONNECTOR (16-GA TO 18-GA)
  	9V-2818	[1]	GROMMET
  	9W-0852	[3]	PIN-CONNECTOR (14-GA TO 16-GA)
  	155-2270	[2]	KIT-CONNECTING PLUG (2-PIN)
  			(EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
  	8T-8737	[2]	PLUG-SEAL
  	166-5229	[1]	KIT-RECEPTACLE (12-PIN)
  			(INCLUDES RECEPTACLE AS & WEDGE)
  	100-6674	[3]	SEAL-CONNECTOR
  	8T-8730	[2]	SOCKET-CONNECTOR (16-GA TO 18-GA)
  	9W-0844	[2]	SOCKET-CONNECTOR (14-GA TO 16-GA)
  	5P-4571	[2]	TERMINAL-BLADE (14-GA TO 16-GA)
  	065-5071	[4]	TERMINAL-BLADE (14-GA TO 16-GA)
  	119-3662 E		TUBE-HEAT SHRINK (10.85-MM DIA)(20-CM)
  11	275-6682 J	[1]	GASKET
  12	275-6687 J	[1]	GASKET
  13	275-6688 J	[1]	GASKET
  14	275-6689 J	[1]	GASKET
  15	275-6690 Y	[1]	COIL GP-HEATER
  16	275-6697 J	[1]	GASKET
  17	275-6699 J	[2]	GASKET
  18	275-6701	[1]	COIL AS-EVAPORATOR
  19	275-6702	[1]	PLATE AS
  20	275-6704 J	[2]	GASKET
  21	275-6705 J	[1]	GASKET
  22	275-6706	[1]	MOTOR AS-BLOWER (24-VOLT)
  	102-8802	[1]	KIT-RECEPTACLE (2-PIN)
  			(INCLUDES RECEPTACLE AS & WEDGE)
  	9W-0852	[2]	PIN-CONNECTOR (14-GA TO 16-GA)
  23	275-6708	[1]	PLATE
  24	275-6709	[1]	PLATE
  25	275-6710	[1]	RETAINER (PUSH ON)
  26	096-4034 M	[1]	BOLT-WING (M6X1X15-MM)
  27	096-6166	[4]	WASHER-HARD (4.5X9X1-MM THK)
  28	3B-4501	[2]	LOCKWASHER
  29	5C-9553 M	[17]	BOLT (M6X1X16-MM)
  30	8C-8514	[2]	SCREW-MACHINE (8-32X0.375-IN)
  31	8T-0337 M	[3]	SCREW-MACHINE (M4X0.7X12-MM)
  32	8T-2659 M	[1]	LOCKNUT (M4X0.7-THD)
  33	8T-4205	[18]	WASHER-HARD (7.2X14.5X2-MM THK)
  			AVAILABLE REPAIR KIT(S):
  	294-8679 J	[1]	KIT-GASKET (AIR CONDITIONER)
  			(ALSO INCLUDES ADDITIONAL GASKETS)
  	E		ORDER BY THE CENTIMETER
  	J		KIT MARKED J SERVICES PART(S) MARKED J
  	M		METRIC PART
  	Y		SEPARATE ILLUSTRATION
