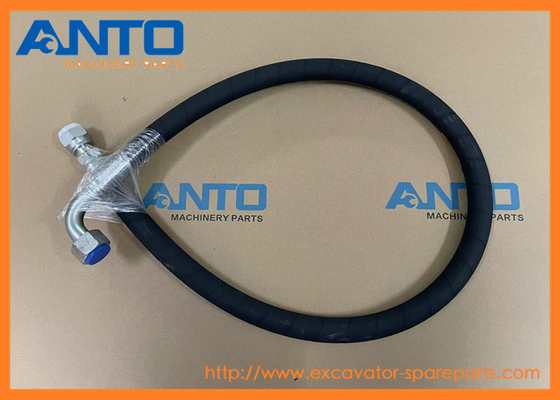

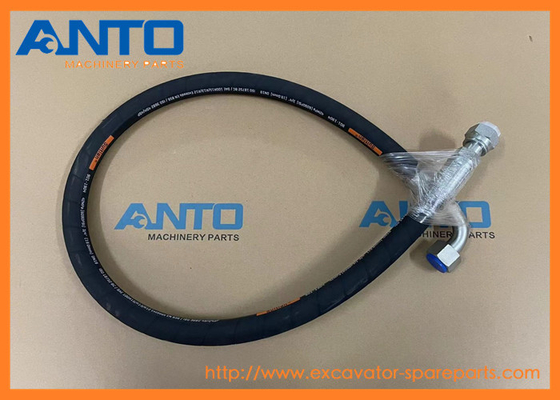

- 366-8641 3668641 Hose AS Excavator Spare Parts Fit For 324D 324D L
| Application |
Excavator |
| Name |
Hose AS |
| Parts No |
366-8641 3668641 |
| Machine Model |
E324D |
| Category |
Excavator Spare Parts, LINES GP-FRONT |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
EXCAVATORS 324D 324D L .Caterpillar.
- More other hose AS parts fit for C A T machine
| 3302457 HOSE AS |
| 324D, 324D L, 324D LN, 325D L, 329D, 329D L, 329D LN |
| |
| 3302456 HOSE AS |
| 324D, 324D L, 324D LN |
| |
| 3302455 HOSE AS |
| 324D, 324D L, 324D LN |
| |
| 3302454 HOSE AS |
| 324D, 324D L, 324D LN, 325D L, 329D L, 329D LN |
| |
| 3302446 HOSE AS |
| 324D, 324D L, 324D LN, 325D L, 329D, 329D L, 329D LN, 330D L, 336D, 336D L, 336D LN, 336D2 |
| |
| 2751565 HOSE AS |
| 324D, 324D L, 324D LN, 325D, 325D L, 329D, 329D L, 329D LN |
| |
| 1764755 HOSE AS |
| 320C, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D2, 320D2 GC, 320D2 L, 323D L, 323D LN, 323D SA, 323D2 L, 324D, 324D FM, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 329D, 32... |
| |
| 2661102 HOSE AS |
| 320D, 320D FM, 320D L, 324D, 324D FM, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN |
| |
| 2661146 HOSE AS |
| 320D L, 320D LN, 320E LN, 323D LN, 323E L, 324D, 324D L, 324D LN, 325D, 325D L, 326D L, 329D, 329D L, 329D LN |
| |
| 2751484 HOSE AS |
| 324D, 324D FM, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 326D L, 329D, 329D L, 329D LN |
| |
| 3543748 HOSE AS |
| 324D, 324D L, 329D L |
| |
| 3668642 HOSE AS |
| 324D, 324D L |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
8T-4192 CM |
[2] |
BOLT (M12X1.75X25-MM) |
|
| 2 |
113-6479 |
[1] |
FLANGE-SPECIAL |
|
| 4 |
212-5491 |
[1] |
SUPPORT AS |
|
| 5 |
218-1007 |
[1] |
HOSE AS |
|
| 6 |
221-8859 |
[1] |
SENSOR AS-PRESSURE (1-PUMP/2-PUMP, 1-WAY FLOW) |
|
| |
3E-3371 |
[1] |
WEDGE-RECEPTACLE LOCK (3-PIN) |
|
| |
3K-0360 |
[1] |
SEAL-O-RING |
|
| |
9X-3401 |
[3] |
PIN-CONNECTOR (16-GA TO 18-GA) |
|
| |
|
|
-OR- |
| |
126-1767 |
[3] |
PIN-CONNECTOR (14-GA TO 16-GA) |
|
| |
171-0596 |
[1] |
RECEPTACLE AS-CONNECTOR (3-PIN) |
|
| 7 |
266-1278 |
[1] |
BLOCK |
|
| 8 |
296-7024 |
[1] |
BLOCK |
|
| 9 |
297-0265 Y |
[1] |
VALVE GP-SOLENOID & RELIEF (1-WAY, 2-WAY FLOW) |
|
| 10 |
323-7942 Y |
[1] |
VALVE GP-SOLENOID & RELIEF (1-WAY, 2-WAY FLOW) |
|
| 11 |
330-2446 I |
[1] |
HOSE AS |
|
| 12 |
366-8641 CI |
[1] |
HOSE AS |
|
| 13 |
366-8642 CI |
[1] |
HOSE AS |
|
| 14 |
330-2456 I |
[1] |
HOSE AS |
|
| 15 |
330-2457 I |
[1] |
HOSE AS |
|
| 16 |
330-2468 |
[2] |
BRACKET |
|
| 18 |
330-2470 |
[1] |
BLOCK |
|
| 20 |
333-7064 |
[1] |
SUPPORT |
|
| 21 |
333-7065 |
[1] |
SUPPORT |
|
| 22 |
333-7068 C |
[2] |
FLANGE |
|
| 23 |
333-7069 |
[1] |
SUPPORT AS |
|
| 24 |
101-7401 M |
[8] |
BOLT-SOCKET HEAD (M10X1.5X20-MM) |
|
| 25 |
101-7404 M |
[4] |
BOLT-SOCKET HEAD (M10X1.5X30-MM) |
|
| 26 |
108-1782 M |
[4] |
BOLT-SOCKET HEAD (M12X1.75X90-MM) |
|
| 27 |
108-4282 M |
[4] |
BOLT-SOCKET HEAD (M10X1.5X100-MM) |
|
| 28 |
148-8330 |
[1] |
CONNECTOR AS |
|
| |
5K-9090 |
[1] |
SEAL-O-RING |
|
| |
7M-8485 |
[1] |
SEAL-O-RING |
|
| |
8T-0198 |
[1] |
CONNECTOR |
|
| 29 |
148-8387 |
[1] |
ELBOW AS |
|
| |
6V-8400 |
[1] |
SEAL-O-RING |
|
| |
6V-9855 |
[1] |
ELBOW |
|
| 30 |
148-8411 |
[1] |
PLUG AS |
|
| |
3K-0360 |
[1] |
SEAL-O-RING |
|
| |
9S-4185 |
[1] |
PLUG (3/4-16-THD) |
|
| 31 |
150-4049 C |
[1] |
ELBOW AS |
|
| |
|
|
(EACH INCLUDES) |
| |
6V-9746 |
[1] |
SEAL-O-RING |
|
| |
7M-8485 |
[1] |
SEAL-O-RING |
|
| |
8T-4149 |
[1] |
ELBOW |
|
| 32 |
153-6237 |
[1] |
ELBOW AS |
|
| |
3D-2824 |
[1] |
SEAL-O-RING |
|
| |
6V-9746 |
[1] |
SEAL-O-RING |
|
| |
6V-9004 |
[1] |
ELBOW |
|
| 33 |
1P-3702 |
[4] |
SEAL-RECTANGULAR |
|
| 34 |
1P-3703 |
[3] |
SEAL-RECTANGULAR |
|
| 35 |
1P-3704 |
[1] |
SEAL-RECTANGULAR |
|
| 36 |
1P-4578 |
[6] |
FLANGE-HALF |
|
| 37 |
280-2747 M |
[4] |
BOLT-SOCKET HEAD (M10X1.5X60-MM) |
|
| 38 |
330-2448 |
[1] |
ELBOW AS |
|
| |
2S-4078 |
[1] |
SEAL-O-RING |
|
| |
6V-8400 |
[1] |
SEAL-O-RING |
|
| |
199-1773 |
[1] |
ELBOW |
|
| 39 |
4J-0522 |
[4] |
SEAL-O-RING |
|
| 40 |
4J-5267 |
[1] |
SEAL-O-RING |
|
| 41 |
5K-9090 |
[1] |
SEAL-O-RING |
|
| 42 |
5P-7466 C |
[1] |
CLIP (SLOT) |
|
| 43 |
5P-7467 C |
[1] |
CLIP (TAB) |
|
| 44 |
5P-7470 J |
[2] |
CLIP (SLOT) |
|
| |
|
|
-OR- |
| |
5P-7468 CL |
[2] |
CLIP (SLOT) |
|
| 45 |
5P-7471 J |
[2] |
CLIP (TAB) |
|
| |
|
|
-OR- |
|
| |
5P-7469 CL |
[2] |
CLIP (TAB) |
|
| 46 |
5P-8182 |
[2] |
GROMMET (46-MM ID)(65-MM) |
|
| |
|
|
-OR- |
| |
6V-0545 |
[2] |
GROMMET (52-MM) |
|
| 47 |
6V-0400 |
[2] |
FLANGE-HALF |
|
| 49 |
5P-8112 C |
[1] |
GROMMET |
|
| 51 |
6V-9746 |
[1] |
SEAL-O-RING |
|
| 52 |
7Y-3729 |
[1] |
FLANGE-SPECIAL |
|
| 53 |
8T-4121 |
[22] |
WASHER-HARD (11X21X2.5-MM THK) |
|
| 54 |
8T-4136 M |
[2] |
BOLT (M10X1.5X25-MM) |
|
| 55 |
8T-4139 M |
[10] |
BOLT (M12X1.75X30-MM) |
|
| 56 |
8T-4182 M |
[8] |
BOLT (M10X1.5X45-MM) |
|
| 57 |
8T-4183 M |
[2] |
BOLT (M12X1.75X40-MM) |
|
| 58 |
8T-4186 M |
[12] |
BOLT (M10X1.5X40-MM) |
|
| 59 |
8T-4194 CM |
[4] |
BOLT (M12X1.75X50-MM) |
|
| 60 |
8T-4223 |
[25] |
WASHER-HARD (13.5X25.5X3-MM THK) |
|
| 61 |
8T-4956 CM |
[7] |
BOLT (M12X1.75X35-MM) |
|
| 63 |
8T-9403 |
[4] |
FLANGE-HALF |
|
| 64 |
148-8360 C |
[1] |
ELBOW AS |
|
| |
6V-9182 |
[1] |
ELBOW |
|
| |
6V-9182 |
[1] |
ELBOW |
|
| |
7M-8485 |
[1] |
SEAL-O-RING |
|
| 65 |
366-8639 C |
[1] |
SUPPORT AS |
|
| |
C |
|
CHANGE FROM PREVIOUS TYPE |
| |
I |
|
REFER TO HYDRAULIC INFORMATION SYSTEM |
| |
J |
|
FOR 65-MM GROMMET |
| |
L |
|
FOR 52-MM GROMMET |
| |
M |
|
METRIC PART |
| |
Y |
|
SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
