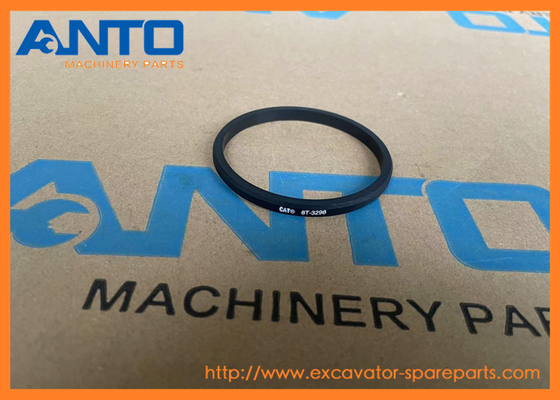

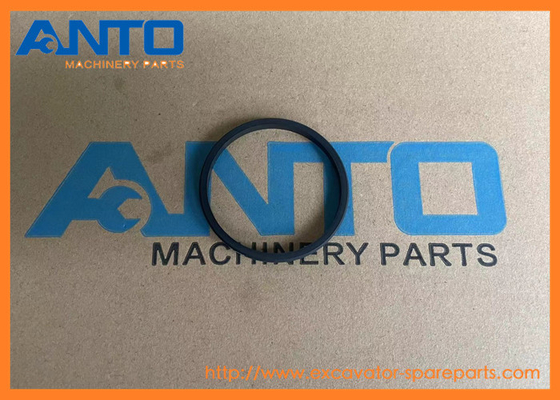

• 8T3298 8T-3298 Rectangular Seal Fitting For Excavator Spare Parts 215B 225 229 235B 235D

• Specification

• Applicable models

ARTICULATED TRUCK 725 725C 730 730C 735 735B 740 740B D250E D250E II D300E D300E II D350E II D400E II
EJECTOR TRUCK 730 730C 740 740B D400E II
EXCAVATOR C A T

215B 225 229 235B 235D 245 245B 311D LRR 311F LRR 312D 312D L 312D2 312D2 GC

313D 313D2 314D CR 314D LCR 318D L 318D2 L 320 L 320D2 320D2 GC 320D2 L 322 FM L 323D2 L

325 325 L 325 LN 330 330 FM L 336D L 336D2

• More seal supplied to C A T machine

  1668815 SEAL GP-FINAL DRIVE

  24H, 24M

  1119958 SEAL-LIP TYPE

  350, 350 L, S25

  0965169 SEAL-BUFFER

  350, 350 L, S25

  1119957 SEAL-LIP TYPE

  325B L, 330, 330 FM L, 330 L, 330B L, 350, 350 L, CR20, P16

  2552272 SEAL GP-DUO-CONE

  328D LCR, 330C L, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L, 345C MH, 345D L, 349D L, 349E, 349E ...

  1264002 SEAL-O-RING

  330C, 330D L, 330D MH, 345B II, 345B II MH, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 374D L, 374F L

  3678471 SEAL-O-RING

  345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 365B II, 365C, 365C L, 374D L, 374F L, 385B, 385C, 385C L, 390D, 390D L, 390F L

  0931347 SEAL-O-RING

  328D LCR, 345B II, 345B L, 345C, 345C L, 345D L, 349E L, 349E L VG, 349F L, 350, 365B, 365B II, 365B L, E650

  1132073 SEAL-O-RING

  345B II, 345B L, 350, 365B, 365B II, 365B L

  0951694 SEAL-O-RING

  330, 330 FM L, 330 L, 330B, 330B L, E120B, W330B

  2590734 SEAL-U-CUP

  325C, 330C L, 330D L, 336D, 336D2, 340D L, 340D2 L, 345B II, 345C, 345D, 345D L, 349D, 349D L

  2667957 SEAL-BUFFER

  325C, 330C L, 330D L, 336D, 336D2, 340D L, 340D2 L, 345B II, 345C, 345D, 345D L, 349D, 349D L

  1429441 SEAL-LIP TYPE

  908, 910G, 933C, D3C III, D4G, D5G, TH31-E61, TH35-E81

  1237563 SEAL-O-RING

  583T, 621G, 627G, 631E, 631G, 633E II, 637E, 637G, 657G, 914G, 939C, 953C, 963C, 973C, CB-544, CD-54, D4C III, D4G, D5C III, D5G, D7E, D7E LGP, D8T, IT14G, TH31-E61, TH35-E81

  1237562 SEAL-O-RING

  1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 345B II, 345B II MH, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, 552 2, 906H, 906H2, 907H, 907H2...

  1237576 SEAL-O-RING

  902, 906, 908, 910G, 914G, 939C, CB-534C, CB-534D, CB-54, CB-544, CB-545, CB-634C, CD-54, D3G, D3K XL, D4C III, D4G, D4K XL, D5C III, D5G, D5K LGP, IT14G, IT14G2, PS-360B, PS-360C, TH31-E61, TH35-E81

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	1U-2827	[1]	GUIDE-VALVE
  2	8J-8782	[1]	BODY-DRAIN VALVE
  3	8J-8783	[1]	VALVE-DRAIN
  4	9J-7031	[1]	PLUG-DRAIN
  5	165-3256	[1]	PIPE AS
  6	256-6453 Y	[1]	SENSOR-TEMPERATURE (2-PIN)
  7	347-6081 Y	[1]	GAUGE GP-SIGHT (HYDRAULIC OIL LEVEL)
  8	488-8581 Y	[1]	FILTER GP-OIL (RETURN)
  9	491-6075	[1]	FILTER GP-OIL (HYDRAULIC DRAIN)
  	6K-6307	[1]	SEAL-O-RING
  10	491-7102	[1]	SCREEN GP-HYDRAULIC
  11	492-0469	[1]	PIPE
  12	492-3014	[1]	BREATHER GP
  13	504-9586	[1]	SWITCH AS-DIFF PRESSURE (RETURN FILTER)
  	8T-8729	[2]	PIN-CONNECTOR (16-GA TO 20-GA)
  	192-7510	[1]	SEAL-O-RING
  	512-4914	[1]	SEAL-FACE
  14	519-8217	[1]	COVER AS
  16	541-2739	[1]	PIPE AS
  17	095-1730	[1]	SEAL-O-RING
  18	105-3484 M	[4]	BOLT-SOCKET HEAD (M10X1.5X25-MM)
  19	175-6176	[1]	SEAL-O-RING
  20	175-7896	[1]	SEAL-O-RING
  21	3K-0360	[1]	SEAL-O-RING
  22	4J-0527	[1]	SEAL-O-RING
  23	5C-9553 M	[3]	BOLT (M6X1X16-MM)
  24	5M-2057	[1]	SEAL-O-RING
  25	6D-9157	[1]	SEAL-O-RING
  26	7B-3039	[1]	SPRING
  27	8T-0267 M	[2]	BOLT-SOCKET HEAD (M6X1X12-MM)
  28	8T-3298	[1]	SEAL-RECTANGULAR
  29	8T-4121	[8]	WASHER-HARD (11X21X2.5-MM THK)
  30	8T-4137 M	[6]	BOLT (M10X1.5X20-MM)
  31	8T-4196 M	[2]	BOLT (M10X1.5X35-MM)
  32	8T-4223	[4]	WASHER-HARD (13.5X25.5X3-MM THK)
  33	8T-4910 M	[4]	BOLT (M12X1.75X60-MM)
  34	9X-8256	[3]	WASHER (6.6X12X2-MM THK)
  	M		METRIC PART
  	Y		SEPARATE ILLUSTRATION



• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
