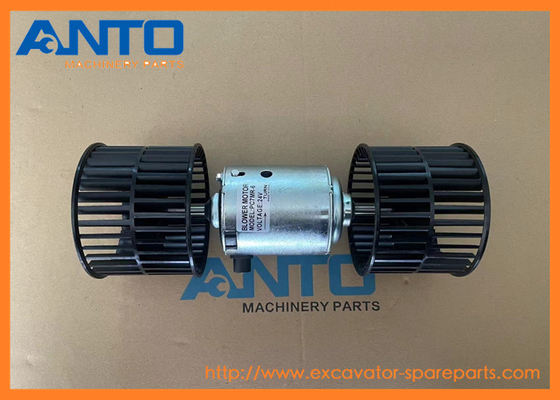

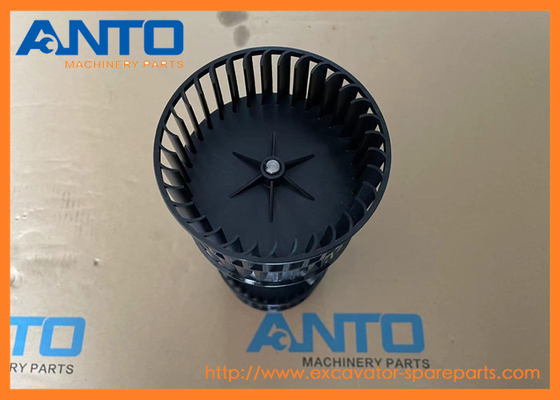

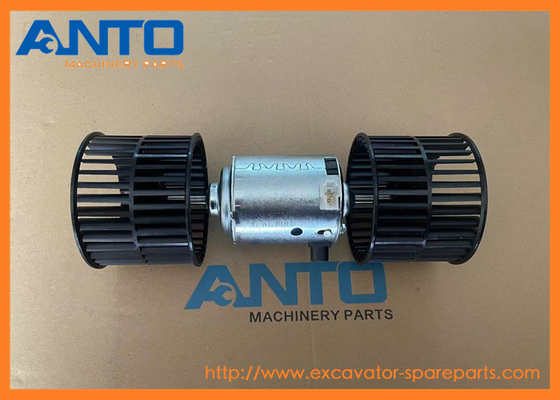

• TW502725-1730 TW5027251730 DK502725-1730 Fan Motor Fitting For KOMATSU Excavator PC128UU PC138

• Specification

• Applicable models

Crawler carriers KOMATSU CD110R

Excavators KOMATSU

PC128UU PC138 PC138US PC228 PC228US PC308 PC78MR PC78US PC78UU

Graders GD555 GD655 GD675

• More fan motors supplied to KOMATSU machine

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  	22B-979-1660	[1]	AIRCON UNIT A. Komatsu	11.8 kg.
  			["SN: 7731-UP"] analogs:["22U9791720"] |$1.
  1.	TW534136-9321	[1]	ASS'Y Komatsu China
  			["SN: 7731-UP"]
  2.	TW534461-8902	[1]	COVER Komatsu China
  			["SN: 7731-UP"]
  	22B-979-1730	[1]	FILTER Komatsu	0.08 kg.
  			["SN: 7731-UP"] |$4.
  5.	TW503700-3990	[1]	EVAPORATOR ASS'Y Komatsu China
  			["SN: 7731-UP"] analogs:["TW5037004760"]
  6.	TW580534-1500	[1]	CLIP Komatsu China
  			["SN: 7731-UP"]
  7.	TW580534-1600	[1]	CLIP Komatsu China
  			["SN: 7731-UP"]
  8.	TW012114-1240	[1]	SCREW Komatsu China
  			["SN: 7731-UP"]
  9.	TW534057-3520	[1]	PIPE Komatsu China
  			["SN: 7731-UP"]
  	TW534057-3720	[1]	PIPE ASS'Y Komatsu China
  			["SN: 7731-UP"] |$12.
  10	TW534057-3620	[1]	PIPE Komatsu China
  			["SN: 7731-UP"]
  11	TW582532-0700	[1]	PRESSURE SWITCH Komatsu China
  			["SN: 7731-UP"]
  12.	TW020058-3040	[1]	BOLT Komatsu China
  			["SN: 7731-UP"]
  13.	TW020046-3040	[1]	BOLT Komatsu China
  			["SN: 7731-UP"]
  14.	TW580534-1900	[1]	CLIP Komatsu China
  			["SN: 7731-UP"]
  15.	TW580534-2000	[1]	CLIP Komatsu China
  			["SN: 7731-UP"]
  16.	TW592022-3700	[2]	SCREW Komatsu China
  			["SN: 7731-UP"]
  	TW502725-1730	[1]	FAN MOTOR Komatsu	1.57 kg.
  			["SN: 7731-UP"] analogs:["DK5027251730"] |$20.
  19	TW592050-0500	[2]	RING, SNAP Komatsu China
  			["SN: 7731-UP"]
  20.	TW534510-5200	[1]	HOSE Komatsu China
  			["SN: 7731-UP"]
  21.	TW592405-1700	[1]	ISOLATOR Komatsu China
  			["SN: 7731-UP"]
  22.	TW536021-5200	[1]	WIRING HARNESS Komatsu China
  			["SN: 7731-UP"]
  23.	TW582571-4300	[1]	RESISTOR Komatsu	0.06 kg.
  			["SN: 7731-UP"]
  24.	TW012514-1640	[2]	TAPPING SCREW Komatsu China
  			["SN: 7731-UP"]
  25.	TW523100-0700	[1]	PLATE Komatsu China
  			["SN: 7731-UP"]
  26.	TW502752-3250	[1]	MOTOR ACTUATOR Komatsu China
  			["SN: 7731-UP"]
  27.	TW580140-0300	[3]	TAPPING SCREW Komatsu China
  			["SN: 7731-UP"]
  28.	TW534270-7920	[1]	DOOR Komatsu China
  			["SN: 7731-UP"]
  29.	TW534470-9200	[1]	LEVER Komatsu China
  			["SN: 7731-UP"]
  30.	TW592055-0900	[1]	CLIP Komatsu China
  			["SN: 7731-UP"]
  31.	TW536160-2100	[1]	ROD Komatsu China
  			["SN: 7731-UP"] analogs:["DK5361602100"]
  32.	TW534104-4300	[1]	BRACKET Komatsu China
  			["SN: 7731-UP"]
  33.	TW534104-4400	[1]	BRACKET Komatsu China
  			["SN: 7731-UP"]
  34.	TW534104-5000	[2]	BRACKET Komatsu China
  			["SN: 7731-UP"]
  37.	TW580521-7700	[3]	CLIP Komatsu China
  			["SN: 7731-UP"]
  38.	TW592024-1800	[1]	CLIP Komatsu China
  			["SN: 7731-UP"]
  39.	TW534190-0300	[1]	LINING Komatsu China
  			["SN: 7731-UP"]
  40.	TW534234-6300	[2]	SEAL Komatsu China
  			["SN: 7731-UP"]
  41.	TW012153-0640	[6]	SCREW Komatsu China
  			["SN: 7731-UP"]
  42.	TW534280-1500	[1]	SHAFT Komatsu China
  			["SN: 7731-UP"]
  43.	TW534104-7300	[1]	BRACKET Komatsu China
  			["SN: 7731-UP"]
  44.	TW534104-7500	[1]	BRACKET Komatsu China
  			["SN: 7731-UP"]
  45.	TW029200-6240	[4]	NUT Komatsu China
  			["SN: 7731-UP"]



• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
