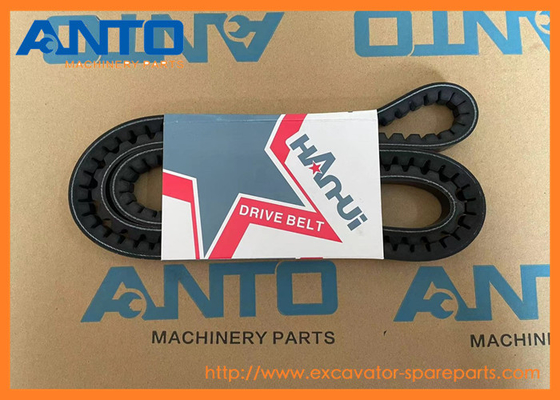

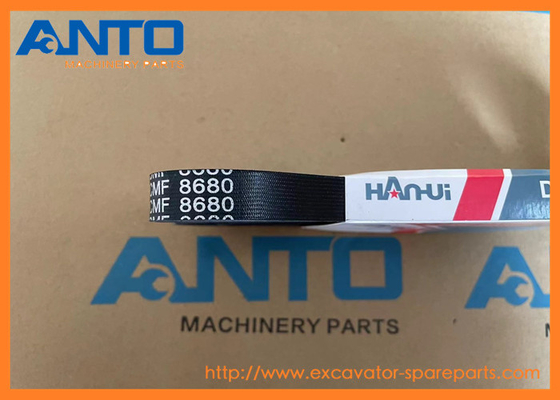

1136715060 Belt Fitting For HITACHI 600C LC JD ZX600 ZX650H ZX800 ZX850H

• 1136715060 Belt Fitting For HITACHI 600C LC JD ZX600 ZX650H ZX800 ZX850H

• Specification

• Compatible models

EXCAVATORS HITACHI

600C LC JD ZX600 ZX650H ZX800 ZX850H

• Diagram parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	1136603311	[1]	FAN; COOLING	OD=1016-6-4HOLE SUCT
  1	8980622920	[1]	FAN; COOLING	OD=1016-6-6HOLE SUCT
  13	911501100	[4]	NUT; COOLING FAN	A M10 FLANGE
  13	911801100	[4]	NUT; COOLING FAN	M10 FLANGE
  13	911801100	[6]	NUT; COOLING FAN	M10 FLANGE
  032(A).	1136420770	[1]	ADAPTER; FAN TO PULLEY
  032(B).	8980302231	[1]	ADAPTER; FAN TO PULLEY
  036(B).	1136714880	[1]	BELT; COOLING FAN	4 PIECES SET L=1780
  036(B).	1136715060	[1]	BELT; COOLING FAN	4 PIECES SET L=1745
  38	1136420793	[2]	SPACER; FAN
  38	8980352350	[2]	SPACER; FAN
  41	9091800320	[1]	RING; SNAP	ID=29.6
  66	281860110	[6]	BOLT; PULLEY	A M10X110 FLANGE
  66	281560110	[6]	BOLT; PULLEY	M10X110 FLANGE
  69	9091605100	[1]	WASHER; PL,ADJ PLATE,GEN	ID=10.5
  69	9091607120	[1]	WASHER; PL,ADJ PLATE,GEN	ID=12
  69	9091607120	[2]	WASHER; PL,ADJ PLATE,GEN	ID=12
  071(A).	281810250	[1]	BOLT; ADJ PLATE,GEN	A M10X25 FLANGE
  071(A).	281510250	[1]	BOLT; ADJ PLATE,GEN	M10X25 FLANGE
  071(B).	281860110	[1]	BOLT; ADJ PLATE,GEN	A M10X110 FLANGE
  071(B).	281560110	[1]	BOLT; ADJ PLATE,GEN	M10X110 FLANGE
  071(C).	1090091131	[1]	BOLT; ADJ PLATE,GEN	M10X135 FLANGE
  075(A).	1136743011	[1]	BRACKET; IDLE PULLEY
  075(B).	8980027990	[1]	BRACKET; IDLE PULLEY
  075(C).	8980117230	[1]	BRACKET; IDLE PULLEY
  79	583106140	[4]	BOLT; PLATE	A M6X14
  79	583306140	[4]	BOLT; PLATE	M6X14
  080(B).	1136742950	[1]	PLATE; ADJ
  081(A).	1136741600	[1]	PIECE; SLIDING	M12X45
  081(B).	1136650262	[1]	PIECE; SLIDING	M18X72.5
  82	911501120	[1]	NUT; ADJ PLATE	A M12 FLANGE
  82	911801120	[1]	NUT; ADJ PLATE	M12 FLANGE
  083(A).	9091646160	[1]	WASHER; PL	ID=17 OD=32
  083(B).	9091646180	[1]	WASHER; PL	A ID=19 OD=36
  083(B).	916146180	[1]	WASHER; PL	ID=19 OD=36
  84	1136660490	[1]	SPACER
  088(B).	1136660211	[1]	WASHER; PL,ADJ PLATE
  103	1136640240	[1]	PLATE; FAN CLU
  103	8980303470	[1]	PLATE; FAN CLU
  111	9043110250	[4]	STUD; FAN DRIVE	A M10X25 L=45
  111	431110250	[4]	STUD; FAN DRIVE	M10X25 L=45
  111	8942072360	[6]	STUD; FAN DRIVE	M10X33 L=53
  112(B).	1136412020	[1]	PULLEY; FAN CENTER
  121	911501100	[2]	NUT; FAN CENTER	A M10 FLANGE
  121	911801100	[2]	NUT; FAN CENTER	M10 FLANGE
  123	1136603390	[1]	PULLEY ASM; CENTER
  125	9091647240	[1]	WASHER
  126(C).	1136631220	[1]	PULLEY; IDLE
  130(C).	1136660500	[1]	SPACER; IDLE PULLEY BRG
  131(C).	1098002920	[1]	BEARING; BALL,FAN PULLEY
  131(D).	1098002930	[3]	BEARING; BALL,FAN PULLEY
  131(E).	1098002940	[1]	BEARING; BALL,FAN PULLEY
  131(F).	1098002950	[1]	BEARING; BALL,FAN PULLEY
  132(C).	1136640270	[2]	COVER; DUST
  133	1136680480	[1]	BRACKET; IDLE PULLEY
  134(A).	1136650540	[1]	SPINDLE; IDLE PULLEY
  137(A).	1090004800	[1]	BOLT; TENSION
  137(B).	1090091690	[1]	BOLT; TENSION
  137(B).	1090091830	[1]	BOLT; TENSION
  140	9991115180	[1]	NUT; IDLE PULLEY	A M18
  140	911115180	[1]	NUT; IDLE PULLEY	M18
  152	1096000122	[1]	CUP; SEALING	OD=32
  157	1136310920	[1]	SHAFT; BRG
  157	8980303460	[1]	SHAFT; BRG
  182(A).	281810500	[2]	BOLT; BRKT	M10X50 FLANGE
  182(A).	281810700	[2]	BOLT; BRKT	A M10X70 FLANGE
  182(A).	287810350	[1]	BOLT; BRKT	A M10X35 FLANGE
  182(A).	281510700	[2]	BOLT; BRKT	M10X70 FLANGE
  182(A).	287510350	[1]	BOLT; BRKT	M10X35 FLANGE
  182(B).	1090201460	[1]	BOLT; BRKT	M14X60
  185	1136714890	[1]	BELT; GEN DRIVE	2 PIECES SET L=1780
  185	1136715070	[1]	BELT; GEN DRIVE	2 PIECES SET L=1745
  216	9991115240	[1]	NUT; PULLEY	A M24
  216	911115240	[1]	NUT; PULLEY	M24
  329	281860120	[4]	BOLT; FAN CENTER	A M10X120 FLANGE
  329	281560120	[4]	BOLT; FAN CENTER	M10X120 FLANGE
  340(A).	1136603400	[1]	CENTER ASM; FAN
  340(A).	8980303450	[1]	CENTER ASM; FAN



• More other belt fit for HITACHI machine

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our Company

Anto Machinery is made up of a professinal engineering team, with high experirence in genuine, OEM and aftermarket parts.

for excavators, bulldozers, forklift, loaders, and crane covering brand Hyundai , Sany , DOOSAN , Vo-lvo , HITACHI , KOBELCO , KOMATSU , KATO , JCB , LIEBHERR , SANY , XCMG , XGMA , LIUGONG , SHANTUI , etc.

We are with full range of data information for the engine parts, hydraulic parts ,seal parts, electrical parts, gear & reducer parts, cylinder parts, bucket parts, cab parts, etc. As exporting about 20 years, we now have customers the whole world including the countries Brazil, Mexico, Colombia, Venezuela, Peru, America, Canada, Russia, Poland, Ireland, Sweden, France, England, Romania, Spain, Portugal, Ukraine, Lithuania, Norway, Italy, Finland, UAE, Saudi Arabia, Israel, Iraq, Sudan, Kenya, Tanzania, Sri Lanka, Kazakhstan, Pakistan, Burma, Thailand, Vitenam, Philippines, Indonesia, Australia, New Zealand, etc.

Thanks very much to our customers support and big trust.

We will keep improving everyday. Any of your encouragement in inquiry and order is our motivation.

We warm welcome your visiting and consulting on your needed parts.
