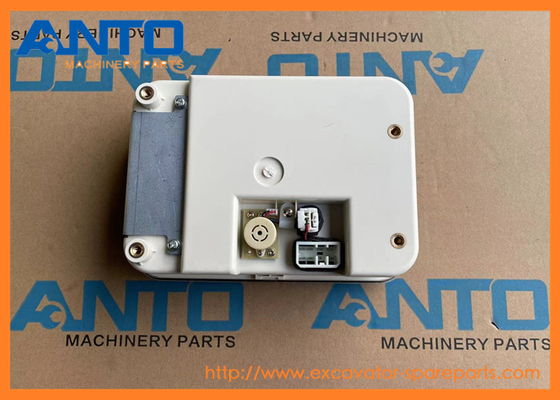

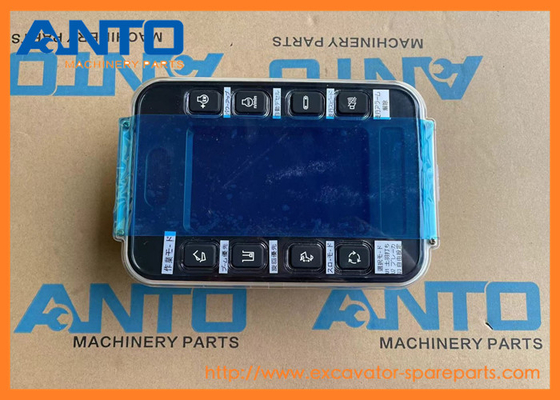

151-9385 106-0172 1519385 1060172 Monitor GP-Operator For C A T Excavator 320B E320B 330B E325B

• 151-9385 106-0172 1519385 1060172 MONITOR GP-OPERATOR Fit For C A T Excavator 320B E320B 330B E325B

• Specification

• Applicable models

311B, 312B L, 315B L, 317B LN, 318B, 320B, 320B FM LL, 321B, 322B L, 322B LN, 325B, 325B L, 330B L, 345B, 345B II, 345B II MH, 345B L, M325B, W330B, W345B II C A T

Wheel Excavator : M325B,W330B,W345B II

• Diagram parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	128-7337	[1]	HARNESS AS-CAB (UPPER)
  	102-8804	[1]	KIT-RECEPTACLE (4-PIN)
  			(INCLUDES RECEPTACLE AS & WEDGE)
  	155-2255	[1]	KIT-CONNECTING PLUG (12-PIN)
  			(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
  	6T-6505	[1]	HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK)
  2	9D-7303	[1]	GROMMET
  3	162-7755 Y	[2]	LAMP GP-DOME (24-VOLT)
  4	9X-2121	[2]	SCREW-PAN HEAD (8-18X0.5-IN)
  5	8L-8413	[7]	STRAP-CABLE (WHITE)
  6	5P-0715 E		HOSE (460-CM)
  7	4D-3100	[2]	GROMMET
  8	128-7336	[1]	HARNESS AS-CAB (LOWER)
  	155-2274	[1]	KIT-CONNECTING PLUG (6-PIN)
  	155-2265	[1]	KIT-CONNECTING PLUG (8-PIN)
  			(EACH CONNECTING PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
  	102-8805	[1]	KIT-RECEPTACLE (6-PIN)
  			(EACH RECEPTACLE AS INCLUDES RECEPTACLE AS & WEDGE)
  	102-8806	[2]	KIT-RECEPTACLE (8-PIN)
  	6T-8047	[2]	HOUSING-RECEPTACLE
  9	8R-6111	[1]	CABLE AS-COAXIAL
  10	031-9195	[3]	CLIP
  11	112-3543	[1]	CONVERTER
  12	9X-2038	[13]	WASHER (7X19X2-MM THK)
  13	9X-2042 M	[11]	SCREW-TRUSS HEAD (M6X1X12-MM)
  14	228-1617	[1]	BRACKET
  15	130-2792 M	[2]	SCREW (M6X1X16-MM)
  16	6V-7419	[1]	BLADE AS-WIPER (700-MM)
  17	126-3705	[1]	ARM-WINDOW WIPER
  18	130-2207	[1]	COVER
  19	130-8377	[1]	COVER
  20	130-2206	[1]	COVER
  21	130-4832	[4]	SCREW (8-18X10-MM)
  22	134-7394	[1]	SUPPORT-MONITOR
  23	9W-0335	[1]	LIGHTER AS-CIGAR (24-VOLT)
  24	128-2162	[1]	SENSOR GP-LIGHT (SUN)
  25	137-7186	[1]	COVER-MONITOR
  26	8Y-5746	[1]	ASHTRAY
  27	156-6346 E	[1]	HOSE
  28	134-7395	[1]	COVER-MONITOR
  29	5C-2890 M	[4]	NUT (M6X1-THD)
  30	9W-1494	[1]	KIT-SERVICE METER (24-VOLT)
  31	110-7817	[1]	LOUVER AS
  32	127-9838	[1]	CONTROL GP-WASHER & WIPER
  33	4B-4276	[4]	WASHER (7X16X1.6-MM THK)
  34	130-8361	[1]	BRACKET
  35	147-7982 CY	[1]	MOTOR GP-WINDOW WIPER (UPPER)
  36	9X-8256	[3]	WASHER (6.6X12X2-MM THK)
  37	7X-2535 M	[1]	BOLT (M6X1X60-MM)
  38	8G-1151	[2]	CONNECTOR-HOSE
  39	101-0742 Y	[1]	WIPER PIVOT GP
  40	130-2794	[1]	GROMMET
  41	5C-9553 M	[4]	BOLT (M6X1X16-MM)
  42	151-9385	[1]	MONITOR GP-OPERATOR
  		[1]	KIT-BACKUP ALARM
  	171-2655	[1]	COVER
  43	6D-6146	[2]	SCREW-MACHINE (10-32X1.25-IN)
  44	4V-4164	[4]	BUSHING-TERMINAL
  45	9F-8125	[6]	LOCKWASHER
  46	4B-2048	[4]	NUT (10-32-THD)
  47	130-2793	[2]	GROMMET
  48	8T-4122	[8]	WASHER-HARD (17X32X3.5-MM THK)
  49	7X-2553 M	[4]	BOLT (M16X2X40-MM)
  50	2D-9535	[2]	GROMMET
  51	130-2211	[2]	HARNESS AS-LIGHTING (FLOODLIGHTS)
  			(EACH INCLUDES)
  	9W-1795	[1]	BOOT
  52	133-6015	[1]	BRACKET (RH)
  53	133-6014	[1]	BRACKET (LH)
  54	126-7487 Y	[2]	LAMP GP-FLOOD (24-VOLT)
  55	6T-7695	[2]	SPEAKER AS-RADIO
  56	8T-4180 M	[8]	SCREW-MACHINE (M5X0.8X20-MM)
  57	8T-4190 M	[4]	BOLT (M16X2X25-MM)
  58	8E-1118	[1]	ANTENNA AS
  	C		CHANGE FROM PREVIOUS TYPE
  	E		ORDER BY THE CENTIMETER
  	M		METRIC PART
  	R		REMANUFACTURED PART MAY BE AVAILABLE
  	Y		SEPARATE ILLUSTRATION



• More other Monitor fit for C A T  machine

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
