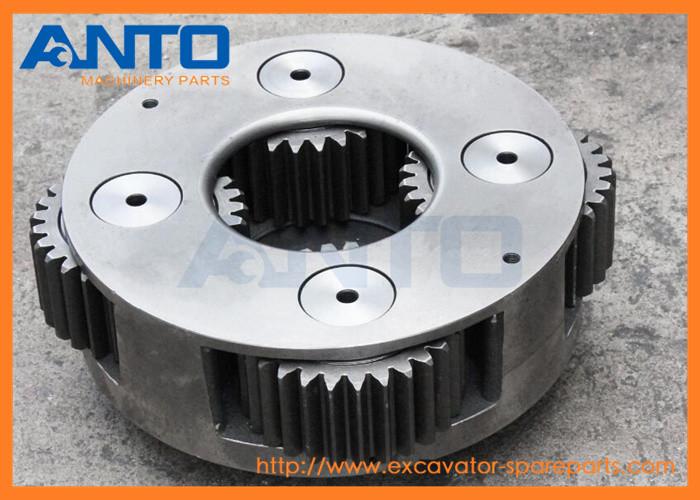

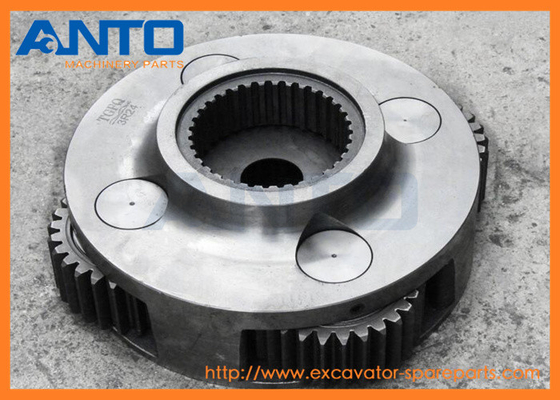

39Q812201 39Q812190 39Q8-12201 39Q8-12190 R300LC-9S Swing Carrier Assy No.2

Large Image : 39Q812201 39Q812190 39Q8-12201 39Q8-12190 R300LC-9S Swing Carrier Assy No.2

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	39Q8-12190

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	568 PCS per week

Contact Now

Detailed Product Description

Category:	HYUNDAI Excavator Swing Reduction Gearbox	Machine Model:	R290LC9 R300LC9
Parts No.:	39Q812201 39Q812190 39Q8-12201 39Q8-12190	Parts Name:	Planet Carrier Assy
Warranty:	6 Months	Package:	Standard Export Carton
Highlight:	R300LC-9S Swing Carrier Assy , 39Q8-12201 Swing Carrier Assy , 39Q812190 Swing Carrier Assy

39Q812201 39Q812190 39Q8-12201 39Q8-12190 R300LC-9S Swing Carrier Assy No.2

Spec Sheet

Product name	Swing reduction carrier assy no.2
Part number	39Q812201 39Q812190 39Q8-12201 39Q8-12190
Model	R290LC9 R300LC9
Category group	HYUNDAI Excavator Swing Reduction Gearbox Parts
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

Application

7-SERIES CRAWLER EXCAVATOR R290LC7A

9-SERIES CRAWLER EXCAVATOR R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH

F-SERIES CRAWLER EXCAVATOR HX300L HX330L Hyundai

More other carrier applied to HYUNDAI equipment

39Q8-42190 CARRIER 2

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42270 CARRIER 1

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42180 CARRIER ASST KIT 1

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42260 CARRIER ASST KIT 2

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

XKDE-00215 CARRIER-SEAL

HL760-9S, HL770-9, HL770-9S, R300LC9S, R330LC9S, R360LC9, R430LC9

XKAQ-00965 CARRIER 3 ASSY

R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00966 CARRIER 3

R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00974 CARRIER ASSY 2

R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00975 CARRIER 2

R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

39Q8-12281 CARRIER NO.1

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12190 CARRIER ASSY NO.2

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12270 CARRIER ASSY NO.1

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

HHI28-WP10 CARRIER

R290LC3H, R320LC3

3550BX000-07A CARRIER 3 SUB ASSY(7,14,

R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

3550BX000-06 CARRIER 2 SUB ASSY(6,13,

R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

3550BX067-05 CARRIER 1 SUB ASSY(5,12,

R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

35050BAA-007A CARRIER NO3

R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

35050BAA-007 CARRIER

R280LC, R290LC

35050BAA-006 CARRIER NO2

R280LC, R290LC, R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

35050BAA-005 CARRIER NO1

R280LC, R290LC, R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

6333700383 CARRIER

R280LC, R290LC, R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3

XKAQ-00975 CARRIER 2

R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00974 CARRIER ASSY 2

R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

39Q7-12200 CARRIER ASSY 1

HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S

39Q8-12281 CARRIER NO.1

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12190 CARRIER ASSY NO.2

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12270 CARRIER ASSY NO.1

HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

21622Z8931301 CARRIER 1

R320LC3

2162220485401 CARRIER 2

R320LC3

3524120-0084 CARRIER-NO1

R360LC3

3521120-0061 CARRIER SUB ASSY 1

R360LC3

3521120-0064 CARRIER SUB ASSY 2

R360LC3

208-26-52220 CARRIER

207-27-52181 CARRIER

208-27-52190 CARRIER

Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
*-2.	39Q8-12100	[1]	SWING REDUCTION GEAR	SEE 4107
*-2.	39Q8-12101	[1]	SWING REDUCTION GEAR	SEE 4107
1	39Q8-12110	[1]	GEAR RING
2	39Q8-12120	[1]	SHAFT-DRIVE
3	39Q8-12130	[1]	BEARING-SPH.ROLLER
4	39Q8-12140	[1]	BEARING-SPH.ROLLER
5	39Q8-12150	[1]	PLATE-THRUST
6	39Q8-12160	[1]	RING-SNAP
7	39Q8-12170	[1]	COVER
8	S017-120306	[12]	BOLT-HEX
9	39Q8-12180	[1]	CASING
10	S632-290001	[1]	O-RING
11	S109-100306	[12]	BOLT-SOCKET
K12.	39Q8-12201	[1]	CARRIER NO.2
K13.	39Q8-12211	[4]	GEAR-PLANETARY NO.2
K14.	39Q8-12220	[4]	BEARING-NEEDLE NO.2
K15.	39Q8-12231	[8]	WASHER-THRUST NO.2
K16.	39Q8-12240	[4]	PIN-CARRIER NO.2
K17.	S472-910404	[4]	PIN-SPRING
K18.	39Q8-12251	[1]	GEAR-SUN NO.2
K19.	39Q8-12261	[1]	PLATE-THRUST NO.2
K20.	39Q8-12281	[1]	CARRIER NO.1
K21.	39Q8-12291	[3]	GEAR-PLANETARY NO.1
K22.	39Q8-12300	[3]	BEARING-NEEDLE NO.1
K23.	39Q8-12311	[6]	WASHER-THRUST NO.1
K24.	39Q8-12320	[3]	PIN-CARRIER NO.1
K25.	S472-800404	[3]	PIN-SPRING NO.1
K26.	39Q8-12331	[1]	GEAR-SUN NO.1
K27.	39Q8-12341	[1]	PLATE-THRUST NO.1
28	39Q8-12350	[1]	SLEEVE
29	S632-140001	[1]	O-RING
30	39Q6-12350	[1]	SEAL-OIL
31	39Q6-41450	[2]	PIN-PARALLEL
32	S109-18050D	[14]	BOLT-SOCKET
33	39Q8-12360	[1]	NAME PLATE
34	39Q6-41800	[2]	RIVET
35	P220-430204	[1]	PLUG-HEX
K.	39Q8-12190	[1]	CARRIER ASSY NO.2	SEE ILLUST
K.	39Q8-12270	[1]	CARRIER ASSY NO.1	SEE ILLUST

39Q812201 39Q812190 39Q8-12201 39Q8-12190 R300LC-9S Swing Carrier Assy No.2 0

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
