Product Details:
Payment & Shipping Terms:
|
| Category: | HYUDNAI Excavator Hydraulic Cylinder Repair | Excavator Model: | R250LC7 R290LC7 R305LC7 |
|---|---|---|---|

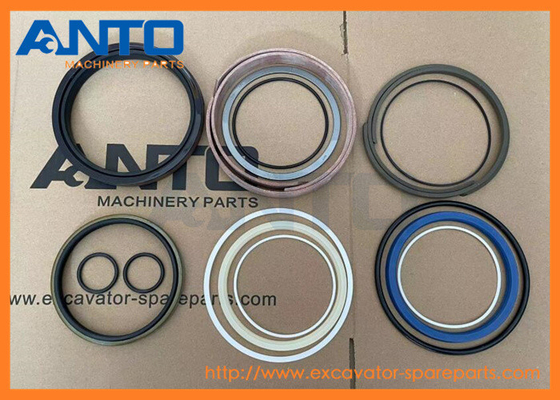

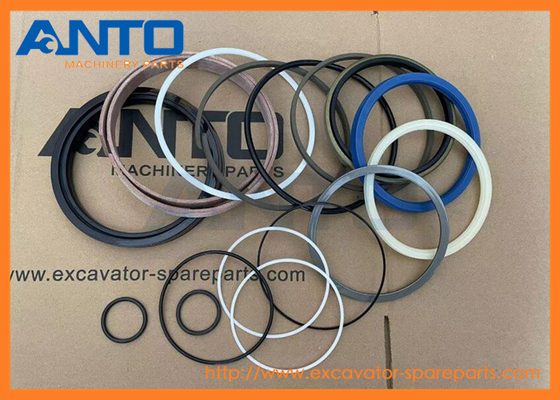

| Parts Number: | 31Y1-18250 | Parts Name: | Arm Cylinder Seal Kit |
| MOQ: | 1 SET | Warranty: | 3/6 Months |
| High Light: | 31Y1-18250 Arm Cylinder Seal Kit,R250LC-7 Arm Cylinder Seal Kit,Excavator Arm Cylinder Seal Kit |
||
| Parts Name | hydraulic arm cylinder seal repair kit |
| Equipment | R250LC7 R290LC7 R305LC7 |
| Category | Excavator Hydraulic cylinder repair parts |
| Installation | Hydraulic system |
| Item Condition | Brand new, OEM quality |
| MOQ | 1 SET |
| 31Y1-09990 SEAL KIT |
| R250LC3, R250LC7, R250LC7A |
| 31Y1-10160 Hyundai |
| 31Y1-10160 SEAL KIT |
| R250LC3, R250LC7, R250LC7A |
| 31Y1-18070 Hyundai |
| 31Y1-18070 SEAL KIT |
| R290LC7 |
| 31Y1-18071 Hyundai |
| 31Y1-18071 SEAL KIT |
| R290LC7, R305LC7 |
| 31Y1-18075 Hyundai |
| 31Y1-18075 SEAL KIT |
| R290LC7, R290LC7A, R305LC7 |
| 31Y1-15390 Hyundai |
| 31Y1-15390 SEAL KIT |
| R290LC7, R290LC7H, R305LC7 |
| 31Y1-15395 Hyundai |
| 31Y1-15395 SEAL KIT |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31Y1-15040 Hyundai |
| 31Y1-15040 SEAL KIT |
| R290LC7, R290LC7H, R305LC7 |
| 31Y1-15047 Hyundai |
| 31Y1-15047 SEAL KIT |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31Y1-15540 Hyundai |
| 31Y1-15540 SEAL KIT |
| R290LC7, R290LC7H, R305LC7 |
| 31Y1-15545 Hyundai |
| 31Y1-15545 SEAL KIT |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31Y1-34340 Hyundai |
| 31Y1-34340 SEAL KIT |
| HX300L, R290LC7A, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R305LC7 |
| 31Y1-20000 SEAL KIT |
| R250LC7, R250LC7A |
| AS568-2 SEAL KIT |
| R250LC7, R250LC7A, R290LC7A, R305LC7, R320LC7, R320LC7A |
| ZTAS-00006 SEAL KIT |
| R250LC7, R250LC7A, R290LC7, R290LC7A, R305LC7, R320LC7, R320LC7A |
| XJDH-03317 SEAL-OIL |
| R22-7, R28-7 |
| XJDH-03658 SEAL-OIL |
| R22-7 |
| XJDH-03650 SEAL RING ASSY |
| R22-7 |
| XJDH-02170 SEAL-DUST |
| R22-7, R28-7, R35-7, R36N-7 |
| XJDH-03604 SEAL-DUST |
| R22-7 |
| XJDH-03591 SEAL RING ASSY |
| R22-7 |
| XJDH-04235 SEAL-OIL |
| R22-7 |
| XJDH-04211 SEAL-RUBBER |
| R22-7 |
| XJDH-04199 SEAL |
| R22-7 |
| XKAH-01060 SEAL KIT |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7A, R300LC7, R305LC7, R320LC7, R320LC7A, R450LC7, R450LC7A, R500LC7, R500LC7A, RB260LC9S, RD340LC-7, RD510LC-7 |
| XKAQ-00119 SEAL-OIL |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R320LC7A, RB260LC9S, RD340LC-7 |
| XKAH-01077 SEAL KIT |
| R250LC7, R250LC7A |
| XJCK-00022 SEAL-PISTON |
| R250LC7, R290LC7, R305LC7, R320LC7 |
| XJCK-00019 SEAL-OIL |
| R250LC7, R290LC7, R290LC9, R305LC7, R320LC7 |
| XKAY-00274 SEAL-OIL |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC... |
| XKAY-00278 SEAL KIT |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC... |
| XJCK-00049 Hyundai |
| XJCK-00049 SEAL-FLOATING |
| R250LC7, R290LC7, R290LC9, R305LC7, R320LC7 |
| XKAQ-00173 Hyundai |
| XKAQ-00173 SEAL-FLOATING |
| R250LC7, R250LC7A, R250LC9, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R300LC7, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 31Y1-09990 Hyundai |
| 31Y1-09990 SEAL KIT |
| R250LC3, R250LC7, R250LC7A |
| Y420-135000 SEAL-PISTON |
| HX260L, R250LC3, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R380LC9DM, R520LC9, RB260LC9S |
| 31Y1-10160 Hyundai |
| 31Y1-10160 SEAL KIT |
| R250LC3, R250LC7, R250LC7A |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N7-50131 | [1] | ARM CYLINDER ASSY | |
| *. | 31N7-50132 | [1] | ARM CYLINDER ASSY | |
| *-1. | 31Y1-19871 | [1] | ARM CYLINDER SUB | WITHOUT PIPE |
| 1 | 31Y1-21780 | [1] | TUBE ASSY | |
| 2 | 31Y1-21830 | [1] | ROD ASSY | |
| N20. | @ | [1] | SPEAR-CUSHION | |
| N21. | @ | [1] | VALVE-CHECK | |
| N22. | @ | [1] | SPRING-COIL | |
| N23. | @ | [1] | RING-STOP | |
| 3 | 31Y1-17120 | [1] | GLAND | |
| 4 | S732-110045 | [1] | BUSHING | |
| 5 | Y191-117000 | [1] | RING-SNAP | |
| K6. | Y220-110011 | [1] | SEAL-ROD | |
| K7. | Y180-110020 | [1] | RING-BACK UP | |
| K8. | Y240-110013 | [1] | RING-BUFFER | |
| K9. | Y110-110011 | [1] | WIPER-DUST | |
| 10 | Y190-126000 | [1] | RING-SNAP | |
| K11. | S631-140004 | [1] | O-RING | |
| K12. | S641-140003 | [1] | RING-BACK UP | |
| 13 | 31YC-23050 | [1] | RING-CUSHION | |
| 14 | 31Y1-15000 | [1] | PISTON | |
| K15. | S632-095004 | [1] | O-RING | |
| K16. | S642-095003 | [2] | RING-BACK UP | |
| K17. | Y420-150000 | [1] | SEAL-PISTON | |
| K18. | Y310-150003 | [2] | RING-WEAR | |
| K19. | Y440-150002 | [2] | RING-DUST | |
| 24 | 31YC-66081 | [1] | WASHER-LOCK | |
| 25 | 31YC-61143 | [1] | NUT-LOCK | |
| 26 | S109-200904 | [12] | BOLT-SOCKET | |
| 34 | 31YC-11161 | [2] | BUSHING-PIN | |
| 35 | Y000-090000 | [4] | SEAL-DUST | |
| 27 | 31Y1-21700 | [1] | BAND ASSY | |
| 27-1. | 31Y1-21710 | [1] | BAND SUB ASSY | |
| 27-2. | 31YC-31420 | [1] | BAND | |
| 27-3. | S015-120452 | [2] | BOLT-HEX | |
| 27-4. | S411-120002 | [2] | WASHER-SPRING | |
| 27-5. | S071-023430 | [1] | U-BOLT | |
| 27-6. | S201-101002 | [2] | NUT-HEX | |
| 27-7. | S411-100002 | [2] | WASHER-SPRING | |
| 28 | 31Y1-21720 | [1] | BAND ASSY-B | |
| 28 | 31Y1-21721 | [1] | BAND ASS'Y-B | |
| 28-1. | 31Y1-21730 | [1] | BAND SUB ASSY | |
| 28-2. | 31YC-32240 | [1] | BAND | |
| 28-3. | S015-120452 | [4] | BOLT-HEX | |
| 28-3. | S015-120452 | [2] | BOLT-HEX | |
| 28-4. | S411-120002 | [4] | WASHER-SPRING | |
| 28-4. | S411-120002 | [2] | WASHER-SPRING | |
| 28-5. | S071-023430 | [2] | U-BOLT | |
| 28-5. | S071-023430 | [1] | U-BOLT | |
| 28-6. | S201-101002 | [4] | NUT-HEX | |
| 28-6. | S201-101002 | [2] | NUT-HEX | |
| 28-7. | S411-100002 | [4] | WASHER-SPRING | |
| 28-7. | S411-100002 | [2] | WASHER-SPRING | |
| 29 | 31Y1-21760 | [1] | PIPE ASSY-R | |
| 29 | 31Y1-21761 | [1] | PIPE ASS'Y-R | |
| 30 | 31Y1-21750 | [1] | PIPE ASSY-B | |
| K31. | Y171-024004 | [2] | O-RING | |
| K31. | Y171-024004 | [1] | O-RING | |
| 32 | S107-120554 | [4] | BOLT-SOCKET | |
| 33 | S107-100554 | [4] | BOLT-SOCKET | |
| K. | 31Y1-18250 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT INDIVIDUALLY SUPPLIED |
| TRADE TERMS | EXW, FOB, CFR, CIF |
| PAYMENT TERMS | T/T, Western Union, Escrow, Money Gram |
| PORT | Guangzhou Port, negotiable |
| LEAD TIME |
|
| DELIVERY | By Sea, Air, Truck |
|
ORDER FLOW |
2. We quote the best price according to the requirement of customers.
3. Confirm the purchase order and pay the deposit.
4.We prepare and pack the goods.
5.Customers make the payment according to the Proforma Invoice once the goods get ready for delivery.
6. We delivery the goods with the packing list, commercial invoice, B/L and other documents requested.
7.Track the transport and arrival about the goods.
8.Welcome to give us suggestion and feedback once arrival. |
1. Warranty Type:
We will replace the product that have quality problem.
2. Warranty Period:
Supply 3, 6, 12 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival. Contact with us and offer the data, photos of the problem items.
3. You need to pay for the replacement charge for following condition:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation.
* The machine and the parts work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
4. Others
They are the product easy to be rust away, please wrap them well. If there is any problem about the products, installation or maintenance, please contact with us any time. We reserve the rights of final interpretation.
