| Category: | Excavator Swing Reduction Gear | Machine Model: | Newholland E175B E215B |
|---|---|---|---|

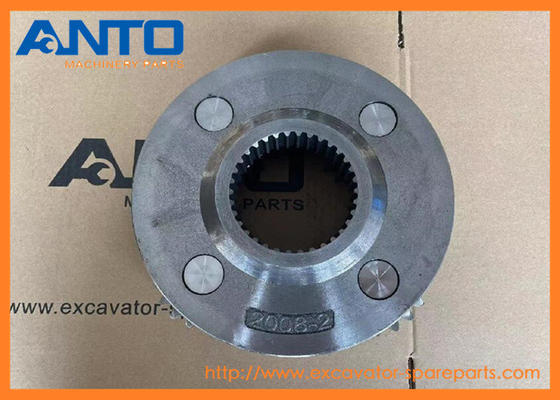

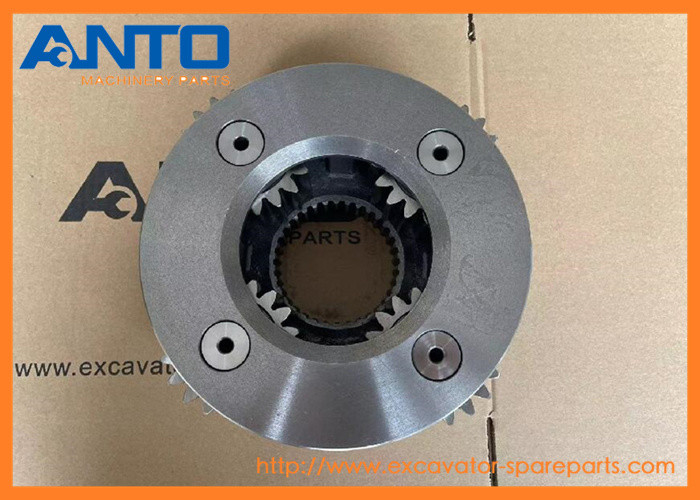

| Parts No.: | YN32W01058P1 | Parts Name: | Carrier Assy |
| Warranty: | 6/12 Months | Package: | Standard Export Carton |
| High Light: | YN32W01058P1 Carrier Assy,Excavator E175B Carrier Assy,E215B Carrier Assy |
||
| Product name | Carrier assy |
| Part number | YN32W01058P1 |
| Model | Holland E215B E175B |
| Category group | Holland Excavator Swing Reduction Gear |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
| Pos. | Part No | Qty | Parts name | Comments |
| . . | YN32W00019F1 | [1] | GEAR REDUCTION UNIT | SM Assembly, Swing Superseded by part number: YN32W00022F2 |
| 1 | YN32W01051P1 | [1] | SHAFT | SM |
| 2 | YN32W01052P1 | [1] | GEAR | SM Sun |
| 3 | YN32W01053P1 | [3] | GEAR | SM Pinion |
| 4 | YN32W01054P1 | [1] | GEAR | SM Sun |
| 5 | YN32W01055P1 | [4] | GEAR | SM Pinion |
| 6 | YN32W01056P1 | [1] | RING GEAR | SM |
| 7 | YN32W01057F1 | [1] | CARRIER | SM Spider Assembly |
| 7-1. | YN32W01009P1 | [1] | Spider | |
| 7-2. | YN32W01066P1 | [3] | SHAFT | KOB |
| 8 | YN32W01058P1 | [1] | CARRIER,Housing, Spider | SM Spider |
| 9 | YN32W01067P1 | [4] | SHAFT | SM |
| 10 | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 11 | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 12 | YN32W01060P1 | [1] | OIL SEAL | SM Oil Seal |
| 13 | YN32W01104P1 | [1] | BOX | SM Housing Superseded by part number: YN32W00022F2 |
| 15 | YN32W01071P1 | [6] | WASHER | SM Washer,Thrust |
| 16 | YN32W01073P1 | [3] | NEEDLE BEARING | SM Needle Superseded by part number: YN32W00022F3 |
| 17 | YN32W01072P1 | [4] | NEEDLE BEARING | SM Needle |
| 18 | YN32W01063P1 | [8] | WASHER | SM Washer,Thrust |
| 19 | ZR16X03500 | [1] | RING | KOB Reatining -- ID 32.20 x OD 35 x Th 1.6mm |
| 20 | ZR16X09000 | [1] | RING | KOB Retaining -- ID 84.50 x OD 108 x Th 3.0mm |
| 21 | YN32W01082P1 | [1] | SLEEVE | SM |
| 22 | ZP26D08025 | [4] | PIN | KOB Roll -- OD 08 x 25mm Long |
| 23 | HS23C14135G1 | [11] | SCREW,M14 x 135mm | SM M14x2.0x135mm |
| 24 | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
| 25 | YN32W01080D1 | [1] | RIGID TUBE | SM 1/2" PT x 112mm Long |
| 26 | ZG31U08000 | [1] | HYD CONNECTOR | SM 1/2" PT |
| 27 | ZE82T08000 | [1] | PLUG | KOB 1/2" PT |
| 28 | ZR16X04000 | [3] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 30 | YN32W01081P1 | [1] | OIL SEAL | SM Oil Seal |
| 31 | ZG91V02000 | [1] | LUBE NIPPLE | KOB 67°x1/8" PT |
| 32 | 2444Z3305 | [1] | BREATHER | KOB |
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
