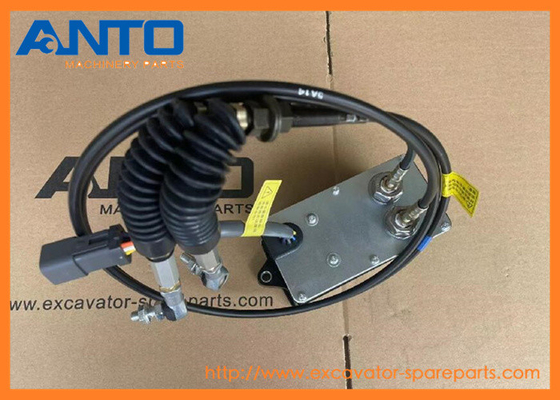

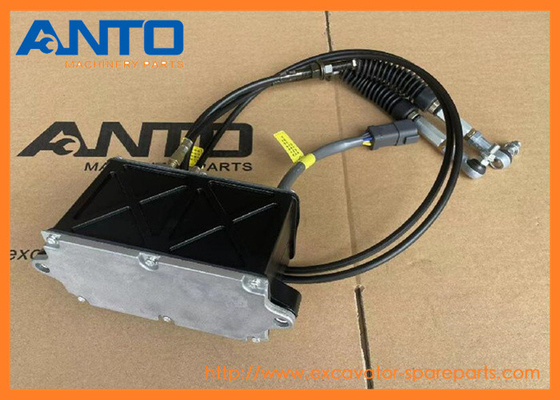

Category: | C A T Excavator Governor Motor | Product Name: | MOTOR AS-GOVERNOR |
---|---|---|---|
Part Number: | 2475231 247-5231 119-0633 1190633 | Model Number: | 320B |
Packing: | Standard Export Carton | Warranty: | 6/12 Months |
High Light: | 1190633 Governor Motor,2475231 Governor Motor |
Product name | Governor motor |
Part number | 2475231 247-5231 119-0633 1190633 |
Model | 320B |
Category group | C A T Excavator Spare Parts |
MOQ | 1 PCS |
Warranty | 6 months |
Payment term | T/T, Western Union, PAYPAL |
Delivery time | 1-3 days after receiving the payment |
Packing | As request or standard packing |
Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
Excavators typically use hydraulic systems for various functions, including the operation of the governor motor. The governor motor plays a crucial role in controlling the engine speed and ensuring that it operates within a specified range, maintaining optimal performance and efficiency.
Here's a simplified explanation of how the governor motor works in an excavator:
Control System:
The excavator's engine is equipped with a control system that includes a governor. The governor is a device that regulates the speed of the engine.
Engine Speed Sensing:
The governor motor monitors the speed of the engine. It does this by receiving signals from speed sensors that measure the engine's revolutions per minute (RPM).
Reference Speed Setting:
The excavator's operator sets a reference speed or a target RPM, which represents the desired speed for the engine to operate. This setting is based on the requirements of the specific task and the optimal operating conditions for the engine.
Comparison and Adjustment:
The governor motor continuously compares the actual engine speed (sensed by the speed sensors) with the reference speed set by the operator.
If the actual speed is below the reference speed, the governor motor adjusts the fuel flow to the engine to increase power and speed.
Conversely, if the actual speed is above the reference speed, the governor motor reduces the fuel flow to the engine to decrease power and bring the speed back to the desired level.
Stability and Response:
The governor motor ensures that these adjustments happen smoothly and quickly, maintaining stability in engine speed. This is crucial for the excavator's overall performance and efficiency, especially during different operational conditions and loads.
Feedback Loop:
The process is continuous and forms a feedback loop where the governor motor constantly monitors, adjusts, and stabilizes the engine speed based on the operator's settings and the actual operating conditions.
EXCAVATOR 320B C A T
Pos. | Part No | Qty | Parts name | Comments |
1 | 119-0633 | [1] | MOTOR AS-GOVERNOR | |
157-3160 | [2] | JOINT | ||

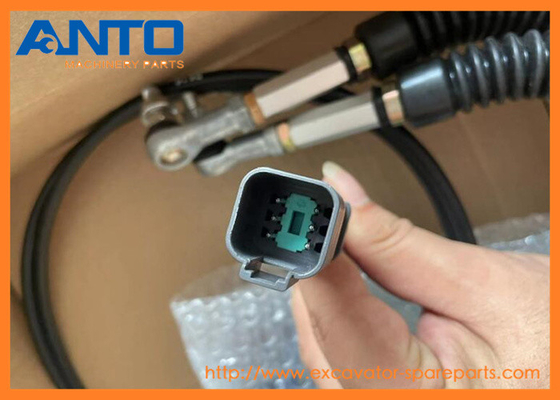

102-8805 | [1] | KIT-RECEPTACLE (6-PIN) | ||
3E-3383 | [1] | WEDGE-RECEPTACLE LOCK (6-PIN) | ||
9W-0852 | [6] | PIN-CONNECTOR (14-GA TO 16-GA) | ||
2 | 126-2987 | [1] | BRACKET AS | |
3 | 4K-6177 | [2] | CLIP | |
4 | 8T-4121 | [6] | WASHER-HARD (11X21X2.5-MM THK) | |
5 | 8T-4137 M | [6] | BOLT (M10X1.5X20-MM) | |
6 | 119-0627 | [1] | BRACKET AS | |
7 | 7X-2537 M | [2] | BOLT (M8X1.25X35-MM) | |
8 | 8T-4224 | [6] | WASHER-HARD (8.8X16X2-MM THK) | |
9 | 119-0629 | [1] | LEVER AS | |
10 | 5C-7261 M | [2] | NUT (M8X1.25-THD) | |
11 | 9X-8256 | [2] | WASHER (6.6X12X2-MM THK) | |
12 | 8C-8451 M | [2] | BOLT (M6X1X40-MM) | |
319-4242 AFY | [1] | CABLE GP-GOVERNOR CONTROL | ||
(REFER TO REHS2358 FIELD REPAIR OF GOVERNOR MOTOR CABLES) | ||||
A | NOT PART OF THIS GROUP | |||
F | NOT SHOWN | |||
M | METRIC PART | |||
Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
