Product Details:
Payment & Shipping Terms:
|
| Category: | C A T Excavator Swing Gearbox Parts | Machine Model: | M312 M313 M315 M316 M317 |
|---|---|---|---|
| Parts No.: | 1550830 155-0830 | Parts Name: | Pinion Shaft |
| Warranty: | 6 Months | Package: | Standard Export Carton |
| High Light: | 155-0830 Pinion Shaft,M313C Pinion Shaft,M315D Pinion Shaft |
||

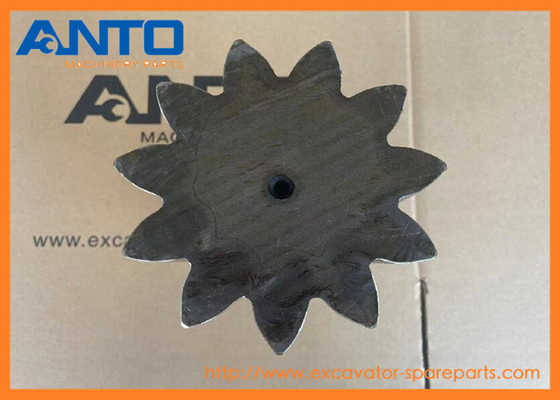

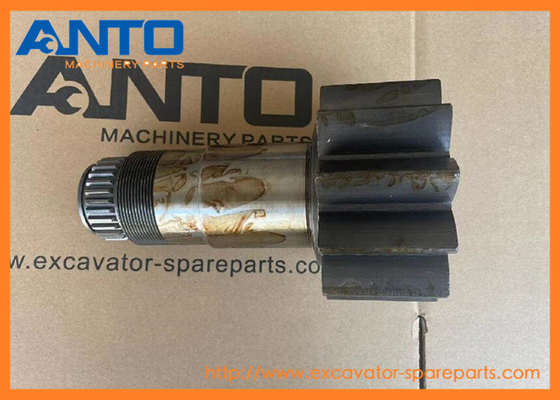

| Product name | Pinion shaft |
| Part number | 1550830 155-0830 |
| Model | M312 M313 M315 M316 M317 |
| Category group | Excavator Swing gearbox gear parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
WHEELED EXCAVATOR M312 M313C M313D M315 M315C M315D M315D2 M316C M316D M317D2 Caterpillar
| 9R6950 PINION-PLANETARY |
| 446, 446B, 446D, M312, M313C, M315, M315C, M316C, M318 |
| 2900297 PINION |
| M315C, M315D, M316C, M316D, M318C, M318D |
| 2919451 PINION-PLANETARY |
| M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH, M325C MH, M325D L MH, M325D MH, M330D, MH3037 |
| 2384728 PINION-GEAR |
| M315C, M316C, M318C |
| 3754478 PINION-GEAR |
| M315C, M315D, M316C, M316D, M317D 2, M318C, M318D, M318D MH |
| 2679173 PINION-PLANETARY |
| M313C, M313D |
| 2886903 PINION |
| M313C, M313D |
| 2702432 PINION-GEAR |
| M313C |
| 3961178 PINION |
| M313C, M313D, M315D 2 |
| 3311377 PINION |
| M315D, M316D, M318D |
| 3724122 PINION |
| M315D, M316D, M317D 2, M318D, M318D MH |
| 3311376 PINION |
| M313D |
| 1275945 PINION AS |
| 315, 315B, 315C, 317B LN, 318B, 904B, 904H |
| 1183748 PINION |
| 315, 315B, 315B FM L, 315C, 317B LN, 318B, 933, 933C, 939C, D3C III, D3G, D4C III, D4G, D5C III, D5G |
| 1550867 PINION |
| M318, M318C, M318C MH, M318D, M318D MH, M320, M322C, M322D, M322D MH |
| 5L2104 PINION (25 AND 16 TEETH) |
| D379 |
| 1M9956 PINION (11 Teeth) |
| D320A |
| 4L8016 PINION (15 TEETH) |
| D320A |
| 1352365 PINION SET |
| 311B, 311C, 312C, 312C L, 314C, 318C, 319C, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 0969503 PINION |
| 311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN, E110, E110B, E120B, E200B |
| 1938430 PINION |
| 304.5 |
| 0992191 PINION |
| 305.5, 306, 307B, 307C, 307D, 308C |
| 1358468 PINION |
| 313B |
| 0968752 PINION |
| 313B |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 155-0821 | [1] | SHAFT | |
| 2 | 155-0822 | [3] | GEAR-PLANETARY | |
| 3 | 155-0823 | [1] | CARRIER | |
| 4 | 155-0824 | [3] | PIN | |
| 5 | 082-3084 | [6] | WASHER | |
| 6 | 082-3085 | [6] | WASHER | |
| 7 | 132-4292 | [63] | BEARING AS-NEEDLE | |
| 8 | 095-0919 | [3] | RING-RETAINING | |
| 9 | 155-0827 | [1] | HOUSING AS-SWING | |
| 10 | 155-0828 | [1] | SEAL-LIP TYPE | |
| 11 | 155-0829 | [1] | SEAL | |
| 12 | 155-0830 | [1] | PINION | |
| 13 | 155-0831 | [1] | WASHER-SPECIAL | |
| 14 | 155-0832 | [1] | BEARING AS-ROLLER | |
| 15 | 155-0833 | [1] | BEARING AS-ROLLER | |
| 16 | 155-0835 | [2] | NUT-SLOTTED | |
| 17 | 155-0834 | [1] | RING | |
| 19 | 155-0836 | [1] | CARRIER-PLANETARY | |
| 20 | 155-0837 | [4] | GEAR-PLANETARY | |
| 21 | 155-0838 | [4] | BEARING AS-ROLLER | |
| 22 | 1H-8647 | [4] | RING-SNAP | |
| 23 | 098-2981 | [3] | SHIM (2-MM THK) | |
| 24 | 110-4737 | [1] | RING-RETAINING | |
| 25 | 121-8088 | [2] | BALL BEARING | |
| 26 | 155-0839 | [1] | GEAR-SUN | |
| 27 | 179-3153 | [2] | SHIM (2.5-MM THK) | |
| 28 | 6V-5201 | [2] | RING-RETAINING | |
| 29 | 155-0848 | [1] | HOUSING-BRAKE | |
| 30 | 155-0849 | [1] | ORIFICE | |
| 31 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 32 | 201-7396 | [1] | SEAL-O-RING | |
| 33 | 155-0850 | [1] | PISTON | |
| 34 | 155-0851 | [1] | SEAL-LIP TYPE | |
| 35 | 155-0852 | [1] | SEAL-LIP TYPE | |
| 36 | 179-3151 | [1] | SPRING | |
| 37 | 179-3154 | [1] | SHIM (3.5-MM THK) | |
| 38 | 132-4268 | [4] | DISC-CLUTCH (1.7-MM THK) | |
| 39 | 132-4262 B | [5] | DISC-CLUTCH (1.4-MM THK) | |
| 40 | 132-4263 B | [1] | DISC-CLUTCH (1.2-MM THK) | |
| 41 | 132-4265 B | [1] | DISC-CLUTCH (1.6-MM THK) | |
| 42 | 132-4266 B | [1] | DISC-CLUTCH (1.8-MM THK) | |
| 43 | 9X-6574 | [1] | RING-RETAINING | |
| 44 | 155-0855 | [1] | SLEEVE | |
| 45 | 8T-0707 | [1] | RING-RETAINING (INTERNAL) | |
| 46 | 179-3560 | [1] | SEAL-O-RING | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
