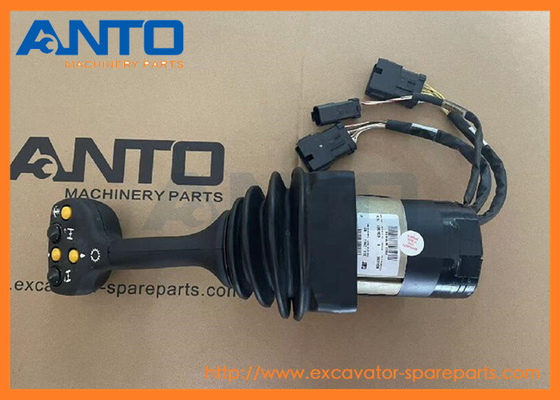

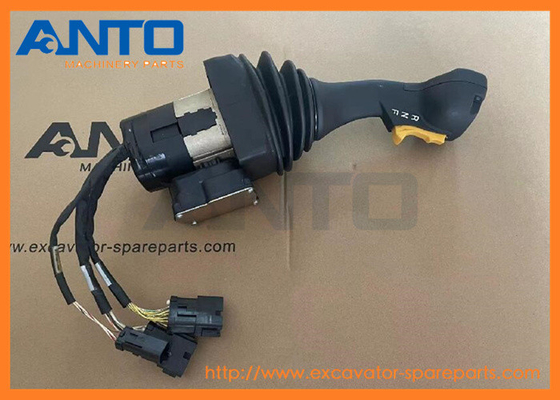

Joystick Control 3602987 3085204 3085203 3563607 3563608 360-2987 308-5204 356-3607 356-3608

• 3602987 3085204 3563607 3563608 360-2987 308-5204 356-3607 356-3608 120M 140M 160M Joystick Control

• Specification

A joystick control system for a motor grader is a user interface that allows the operator to manipulate and control the various functions of the grader using a joystick. Motor graders are heavy equipment machines commonly used in construction and road maintenance to shape and level surfaces. The joystick control system is a modern and ergonomic way to manage the grader's operations efficiently.

Here's a description of how joystick controls are typically used on a motor grader:

Main Joystick: The primary joystick, often positioned to the right of the operator's seat, is the most important control. It usually has a grip that fits comfortably in the operator's hand. The primary joystick is responsible for controlling the blade's movement, which includes raising, lowering, tilting, and angling it. By moving the joystick forward and backward, left and right, and by pushing it forward and pulling it backward, the operator can control the blade's position and angle.

Secondary Joystick: In some modern motor graders, a secondary joystick is used to control additional functions, such as scarifying, a rear ripper or compactor, and other attachments or functions specific to the grader model. The operator can switch between functions and control them with the secondary joystick.

Finger Controls: Some joysticks have finger controls or buttons on their surface to activate specific functions or adjustments. These controls can include things like controlling the blade float, adjusting blade pitch or slope, or even engaging cruise control.

Ergonomics: Joystick controls are designed with ergonomics in mind to reduce operator fatigue during long hours of operation. They have a comfortable grip and are usually positioned at the operator's armrest height for easy reach.

Control Displays: In addition to the physical joystick, motor graders often have digital displays or screens that provide real-time feedback on various parameters, including blade position, slope, and machine performance. The operator can access and adjust settings through these displays.

Safety Features: Joystick controls may also incorporate safety features such as lockout mechanisms to prevent accidental activation of certain functions or overextension of the blade.

Customization: Some joystick control systems are customizable, allowing the operator to adjust sensitivity and response settings to suit their preferences and the specific job requirements.

• Compatible equipment models

MOTOR GRADER 120M 12M 140M 14M 160M 16M 24M Caterpillar
