Product Details:
Payment & Shipping Terms:
|

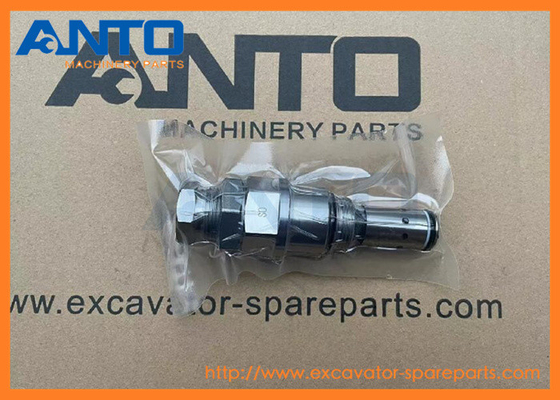

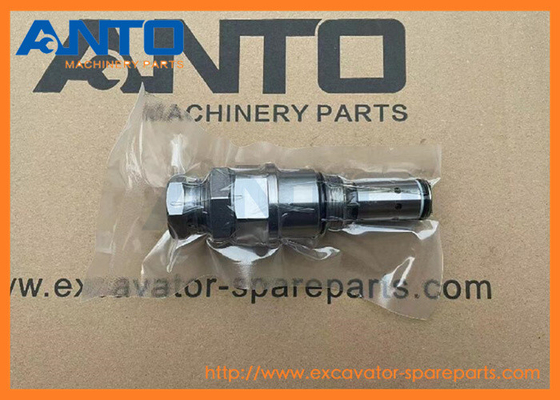

| Category: | Excavator Hydraulic Main Control Valve Parts | Machine Model: | PC300-8 PC350-8 PC360-10 |
|---|---|---|---|
| Parts No.: | 723-40-93801 723-40-93800 | Parts Name: | Relief Valve |
| Warranty: | 6/12 Months | Package: | Standard Export Carton |
| High Light: | 723-40-93800 Relief Valve,723-40-93801 Relief Valve,PC300-8M0 Excavator Main Control Valve |
||
| Excavator spare parts name | Main control relief valve |
| Equipment Model | PC300-8 PC350-8 PC360-10 |
| Parts Category | Excavator Main Control Valve Parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
EXCAVATORS PC300 PC350 PC350HD PC350LL PC360 Komatsu
Main Control Valve: The primary function of the main control valve is to actively manage and regulate the flow rate or pressure of fluid within the system. It is responsible for controlling the desired system operation, such as adjusting fluid flow to a specific level.
Relief Valve: In contrast, the relief valve is a safety device that activates only when system pressure exceeds a pre-set limit. Its sole purpose is to protect the system from overpressure conditions.
Operation:
Main Control Valve: This valve is operated manually by a user or automatically by a control system to achieve specific tasks. It allows for fine-tuning and control over flow rates, pressure, or other system parameters.
Relief Valve: A relief valve operates passively, remaining closed during normal operating conditions. It automatically opens when system pressure becomes excessive, facilitating the escape of surplus fluid and restoring the system to a safe pressure level.
Setting and Adjustment:
Main Control Valve: Users or automated control systems can adjust the main control valve to fine-tune system parameters within defined operational ranges.
Relief Valve: Relief valves are typically pre-set to open at a specific pressure limit, determined based on system requirements and safety standards. They are not meant to be actively adjusted during normal operation.
Placement in the System:
Main Control Valve: Positioned within the system to actively manage fluid flow or pressure, typically closer to the points where fluid is utilized or distributed.
Relief Valve: The relief valve is strategically located downstream of the main control valve and closer to the system's pressure source. It serves as a protective barrier to prevent overpressure situations and safeguard the system's integrity.
| Pos. | Part No | Qty | Parts name | Comments |
| 723-47-25600 | [1] | Valve, Control Komatsu China | ||
| ["SN: 80001-UP"] |$0. | ||||
| 1. | 723-40-93801 | [2] | Valve, Relief Komatsu | 0.5 kg. |
| ["SN: 80001-UP"] analogs:["7234093800"] | ||||
| 2 | 700-22-11410 | [1] | O-ring Komatsu OEM | 0.001 kg. |
| ["SN: 80001-UP"] | ||||
| 3 | 700-80-64220 | [1] | Ring, Back-up Komatsu | 0.001 kg. |
| ["SN: 80001-UP"] | ||||
| 4 | 07002-12434 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 80001-UP"] analogs:["0700202434", "0700213434"] | ||||
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
