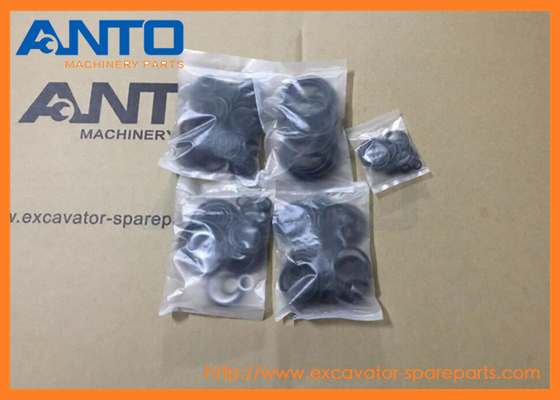

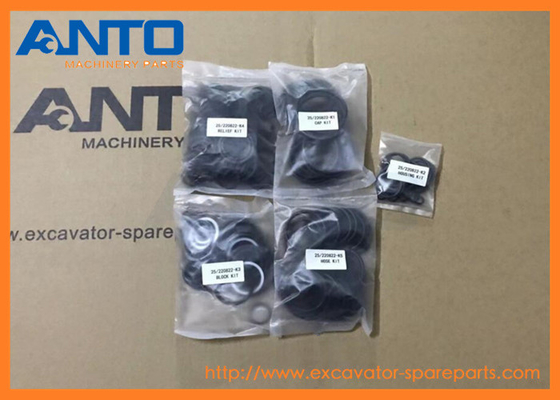

Main Control Valve Seal Kit 25/220822 For JCB JS220 Excavator Hydraulic Control Valve

• Main Control Valve Seal Kit 25/220822 For JCB JS220 Excavator Hydraulic Control Valve

• Spec Sheet

The seal kit for a JS200 excavator's main control valve consists of a set of specialized seals and gaskets that are designed to maintain hydraulic fluid integrity and prevent leaks within the control valve assembly. These seals play a crucial role in ensuring the efficient and smooth operation of the hydraulic system by preventing the loss of hydraulic fluid and maintaining proper pressure levels.

The main components typically included in a seal kit for the main control valve of a JS200 excavator might be:

O-Rings: These are circular seals that fit into grooves and provide a reliable seal between two mating surfaces. O-rings are commonly used in hydraulic systems to prevent leakage at joints and connections.

Gaskets: Gaskets are flat seals made of materials like rubber, metal, or composite materials. They are used to create a seal between two flat surfaces to prevent fluid from escaping.

U-Cups: U-shaped seals that are used in hydraulic applications to provide sealing around piston rods and prevent fluid leakage in dynamic applications.

Wear Rings: These are usually made of materials like nylon or Teflon and are used to guide and support moving parts within the control valve while minimizing friction and fluid leakage.

Backup Rings: Backup rings are often used in conjunction with O-rings to enhance their sealing capabilities, especially in high-pressure environments.

Seal Retainers or Retaining Rings: These components help secure seals in place and prevent them from dislodging during operation.

Sealant or Lubricant: Some seal kits might include a small amount of hydraulic sealant or lubricant, which can aid in the installation of seals and ensure proper functioning.

The specific components and their designs can vary based on the manufacturer's specifications, the excavator model, and the requirements of the hydraulic system.





• Parts Diagram







• Description


Hydraulic valve are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


• Advantage



1. The valve parts are built to fit to the genuine drive gearbox system.

2. The valve parts are supplied strictly according to the genuine parts catalog.

3. All the valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB





• Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
