| Category: | Arm Cylinder Repair Seal Kit | Machine Model: | 320C |
|---|---|---|---|
| Parts No.: | 204-3626 214-4502 137-3767 | MOQ: | 1 Set |
| Item Condition: | Brand New, OEM Quality | Warranty: | 6 Months |
| High Light: | 204-3626 Arm Cylinder Seal Kit,137-3767 Arm Cylinder Seal Kit,2144502 Arm Cylinder Seal Kit |
||

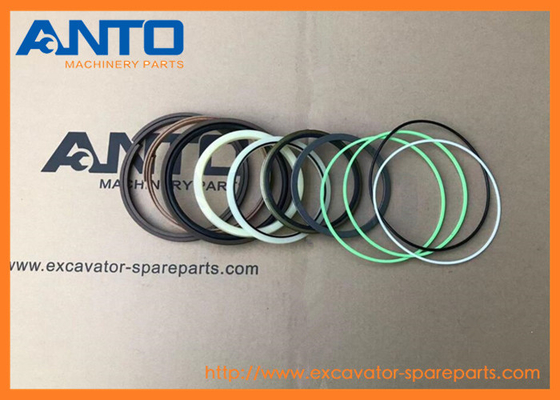

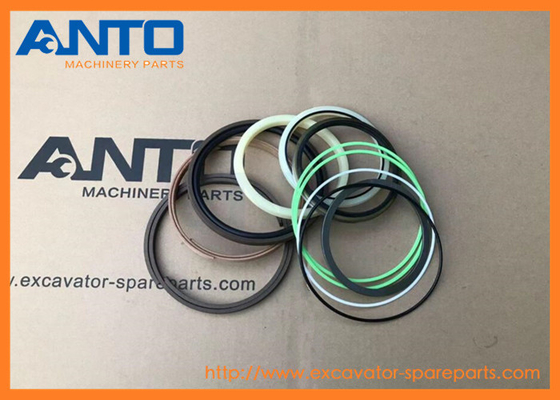

| spare parts name | Arm cylinder seal kit |
| Equipment Model | 320C |
| Parts Category | excavator hydraulic cylinder repair kit |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 SET |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
EXCAVATOR 320C Caterpillar
| 2478998 KIT-SEAL |
| 318C, 320C, 320C FM, 320C L, 321C |
| 1373767 KIT-SEAL |
| 320B FM LL, 320C, 320C FM, 322B L, 322C, 322C FM, 324D FM, 324D FM LL, 325B |
| 1764935 KIT-SEAL |
| 320B, 320C, 322B L, 322C, 322C FM, 325B L, 325C |
| 1232043 KIT-SEAL |
| 320B, 320B U, 321B, 322B, 322B L, 322B LN, 325B, 325B L |
| 2479000 KIT-SEAL |
| 320C, 322C |
| 2590719 KIT-SEAL |
| 320C, 322C, 325C |
| 2590631 KIT-SEAL |
| 320C, 322C |
| 2590637 KIT-SEAL |
| 320C, 325C |
| 2590635 KIT-SEAL |
| 320C, 320C FM, 320C L |
| 1184024 KIT-SEAL |
| 320 L, 322 LN |
| 1372155 KIT-SEAL |
| 325 L, 330 FM L |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 133-6904 J | [1] | SEAL-LIP TYPE | |
| 2 | 121-1372 J | [1] | RING-BACKUP | |
| 3 | 121-1371 J | [1] | SEAL-U-CUP | |
| 4 | 204-3623 J | [1] | SEAL-BUFFER | |
| 5 | 096-5625 | [1] | BUSHING | |
| 6 | 094-1931 | [1] | RING-RETAINING | |
| 7 | 185-0335 | [1] | HEAD | |
| 8 | 4I-3628 M | [12] | BOLT-SOCKET HEAD (M18X2.5X80-MM) | |
| 9 | 4I-3627 J | [1] | RING-BACKUP | |
| 10 | 095-1721 J | [1] | SEAL-O-RING | |
| 11 | 177-2610 | [1] | ROD AS | |
| 11A. | 163-3747 | [1] | BUSHING | |
| 12 | 177-2609 | [1] | CYLINDER AS | |
| 12A. | 163-3747 | [1] | BUSHING | |
| 13 | 4I-8869 | [1] | STOP | |
| 14 | 126-1876 J | [1] | RING-SEAL | |
| 15 | 105-2593 | [1] | PISTON | |
| 16 | 4I-3631 J | [2] | RING-BACKUP | |
| 17 | 096-1570 J | [1] | SEAL AS | |
| 18 | 126-1877 J | [2] | RING | |
| 19 | 096-1571 J | [2] | RING | |
| 20 | 096-5741 J | [1] | SHIM (0.3-MM THK) | |
| 21 | 096-6210 M | [1] | SETSCREW-SOCKET (M14X2X14-MM) | |
| 22 | 096-6211 | [1] | BALL | |
| 23 | 177-2596 M | [1] | LOCKNUT-SPECIAL | |
| 24 | 096-4461 | [1] | RING-RETAINING | |
| 25 | 126-1879 J | [1] | RING-SEAL | |
| 26 | 126-1878 | [1] | STOP | |
| 27 | 6I-6971 | [2] | RING-RETAINING | |
| 28 | 177-2573 | [4] | SEAL-LIP TYPE | |
| 29 | 3B-8489 | [1] | FITTING-GREASE (1/8-27 PTF) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 204-3626 J | [1] | KIT-SEAL (STICK CYLINDER) | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART |
