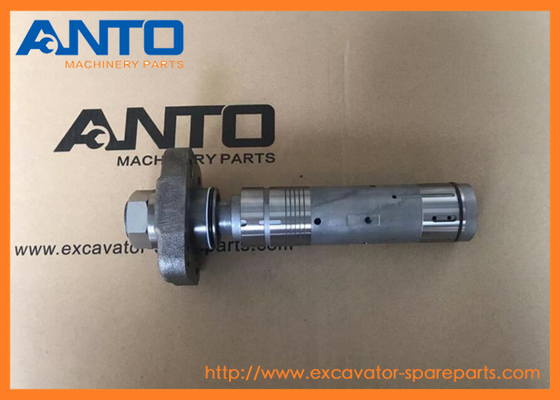

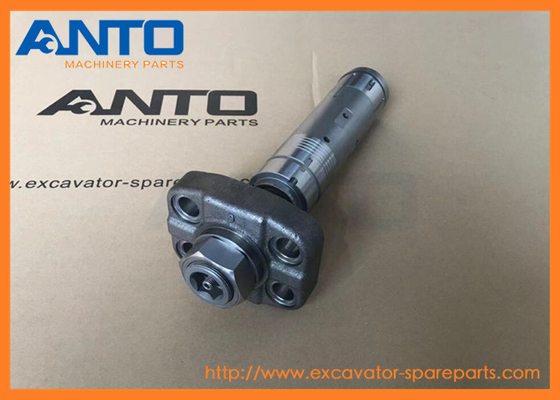

708-2H-03411 7082H03411 PC Valve Assy For KOMATSU PC500LC-8 Excavator Parts

• Application

EXCAVATORS PC400 PC450 PC550
MOBILE CRUSHERS AND RECYCLERS BR580JG Komatsu

• Parts list Diagram

Pos.	Part No	Qty	Parts name	Comments
	708-2H-00450	[1]	Pump Assembly Komatsu	212 kg.
	["SN: 70458-UP"] |$0.
	708-2H-01450	[1]	Pump Subassembly Komatsu China
	["SN: 70458-UP"] |$1.
1	708-2H-34150	[1]	Slider Komatsu	0.453 kg.
	["SN: 70458-UP", "SCC: C2"]
1	708-2H-03411	[1]	Valve Assembly, Pc Komatsu	6.132 kg.
	["SN: 70458-UP", "SCC: C2"]
1	708-2H-03022	[1]	Piston Assembly, Servo Komatsu	2.91 kg.
	["SN: 70458-UP", "SCC: C2"]
4	708-2G-15320	[1]	Seal Komatsu	0.002 kg.
	["SN: 70458-UP", "SCC: C2"]
5	708-2H-15310	[1]	Plug Komatsu	0.115 kg.
	["SN: 70458-UP", "SCC: C2"] analogs:["7082H15311"]
6	708-2L-35760	[1]	Ball Komatsu	0.001 kg.
	["SN: 70458-UP", "SCC: C2"]
7	708-2L-35770	[1]	Plug Komatsu	0.005 kg.
	["SN: 70458-UP", "SCC: C2"]
8	708-2L-35690	[3]	Seal Komatsu	0.003 kg.
	["SN: 70458-UP", "SCC: C2"]
9	708-2L-35170	[1]	Pin Komatsu	0.01 kg.
	["SN: 70458-UP", "SCC: C2"]
10	708-3M-15670	[1]	Spool Komatsu	0.03 kg.
	["SN: 70458-UP", "SCC: C2"]
11	708-2G-15290	[1]	Retainer Komatsu	0.05 kg.
	["SN: 70458-UP", "SCC: C2"]
12	708-2G-15140	[1]	Seat Komatsu	0.01 kg.
	["SN: 70458-UP", "SCC: C2"]
13	708-2H-15330	[1]	Spring Komatsu	0.15 kg.
	["SN: 70458-UP", "SCC: C2"]
14	708-2H-15320	[1]	Spring Komatsu	0.03 kg.
	["SN: 70458-UP", "SCC: C2"]
15	708-2G-15151	[1]	Seat Komatsu	0.01 kg.
	["SN: 70458-UP", "SCC: C2"]
16	708-2H-15340	[1]	Spring Komatsu	0.01 kg.
	["SN: 70458-UP", "SCC: C2"]
17	708-2G-14340	[1]	Screw Komatsu	0.622 kg.
	["SN: 70458-UP", "SCC: C2"]
18	07000-B3038	[1]	O-ring Komatsu	0.002 kg.
	["SN: 70458-UP", "SCC: C2"]
19	708-2G-15230	[1]	Ring, Back-up Komatsu	0.001 kg.
	["SN: 70458-UP", "SCC: C2"]
20	708-2G-15260	[1]	Seal Komatsu	0.003 kg.
	["SN: 70458-UP", "SCC: C2"]
21	708-2G-15240	[1]	Plug Komatsu	0.08 kg.
	["SN: 70458-UP", "SCC: C2"]
22	07000-B2012	[1]	O-ring Komatsu China	0.001 kg.
	["SN: 70458-UP", "SCC: C2"]
23	07000-B2050	[1]	O-ring Komatsu	0.002 kg.
	["SN: 70458-UP", "SCC: C2"]
24	708-2G-15310	[1]	Ring, Back-up Komatsu	0.001 kg.
	["SN: 70458-UP", "SCC: C2"]
25	708-2L-44161	[1]	Cover Komatsu	1.502 kg.
	["SN: 70458-UP", "SCC: C2"]
26	01580-10806	[1]	Nut Komatsu	0.005 kg.
	["SN: 70458-UP", "SCC: C2"] analogs:["801920104"]
27	708-2L-35540	[1]	Nut Komatsu	0.12 kg.
	["SN: 70458-UP", "SCC: C2"] analogs:["7082L35290"]
28	708-2G-15330	[1]	Ring, Wear Komatsu	0.005 kg.
	["SN: 70458-UP", "SCC: C2"]
29	01252-61645	[4]	Bolt, Hexagon Socket Head Komatsu	0.119 kg.
	["SN: 70458-UP", "SCC: C2"]





• More other valve applicable for KOMATSU heavy equipments

723-40-91600 VALVE ASS'Y,RELIEF

AIR, PC130, PC160, PC190, PC240, PC290, PC300, PC350, PC400, PC450, PRESSURE, RAIN

ND092121-0011 KOMATSU

ND092121-0011 VALVE,CHECK

2D94, 3D94, 4D105, 4D120, 6D125, SAA12V140E, SAA6D125E, SAA6D140E, SAA6D170E

723-46-42800 KOMATSU

723-46-42800 VALVE ASS'Y

AIR, PC300, PC350, PC360, PC400, PC450, PC490, PC550, PRESSURE, RAIN

702-21-07311 KOMATSU

702-21-07311 VALVE ASS'Y,EPC

BR380JG, BR480RG, BR580JG, CARRIER, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, D51EX/PX, D61EX, D61EXI, D61PX, D61PXI, D85MS, PC118MR, PC128US, PC128UU, PC130, PC138US, PC160, PC190, PC210, PC228, PC24...

723-90-61400 KOMATSU

723-90-61400 VALVE ASS'Y,SUCTION AND SAFETY

BP500, PC130, PC138, PC138US, PC160, PC190, PC200, PC400, WINDOW

723-90-76201 KOMATSU

723-90-76201 VALVE ASS'Y,SUCTION AND SAFETY

AIR, PC300, PC350, PC360, PC400, PC450, PC490, PC550, PRESSURE, RAIN

07700-50240 KOMATSU

07700-50240 VALVE

AIR, BOOM,, CARRIER, FRONT, HM250, HM300, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PC45MR, PC55MR, PC78US, PC78UU, PC88MR, PRESSURE, RAIN, WA...

ND447500-1482 KOMATSU

ND447500-1482 VALVE,EXPANSION

PC130, PC160, PC180, PC200, PC2000, PC210, PC220, PC270, PC290, PC300, PC300HD, PC300LL, PC340, PC350, TRAVEL, WA600, WD600

07959-20001 KOMATSU

07959-20001 VALVE

AIR, PC1250, PC1250SP, PC160, PC190, PC200, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PC600, PC650, PRESSURE, RAIN

723-41-00100 VALVE SUB ASS'Y

PC200, PC220

KHV0201250672 VALVE

FB10/14EX, FB10/14EXF, FB15/18EX, FB15/18EXF, FB15/18EXG, FB15/18EXGF, FB20/25EX, FB20/25EXF, FB20/25EXG, FB20/25EXGF, FB20HB/25HB, FB30

723-40-56900 KOMATSU

723-40-56900 VALVE ASS'Y,UNLOAD

PC200, PC200LL, PC210, PC220, PC228, PC228US, PC230, PC300, PC360

22L-62-24700 VALVE ASS'Y,(SEE FIG.Y1680-01A0)

PC20MR, PC27MR, PC30MR, PC35MR, PC40MR, PC50MR

23W-60-14250 VALVE ASS'Y

LW100, LW250

709-95-93104 VALVE ASS'Y

PC300, PC300HD, PC310

22T-65-21760 VALVE,COUNTER

LW100

702-16-53001 VALVE ASS'Y

PC200, PC220, PC240, PF3, PF5, PW210

711-28-00051 VALVE ASS'Y

HD785

702-16-58000 VALVE ASS'Y,R.H.

BP500, PC200, PC220, PF5, PW200

723-40-82400 VALVE ASS'Y

PC300, PC300HD, PC300LL, PC340, PC350, PC360, PC380, PC400, PC450

20Y-60-X1320 VALVE GROUP

PC200, PC220









• Description

Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


• Advantage

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
