Product Details:
Payment & Shipping Terms:
|

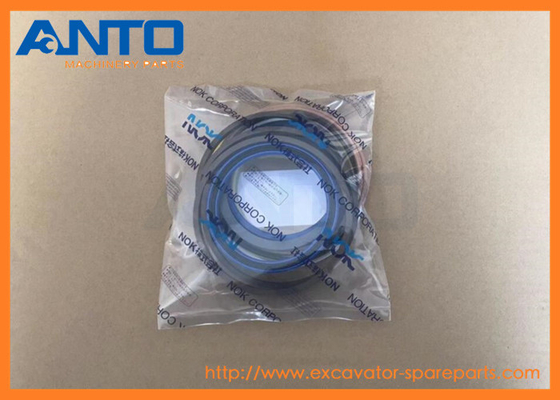

| Category: | Excavator Hydraulic Cylinder Repair Kit | Machine Model: | JCB JS220 |
|---|---|---|---|

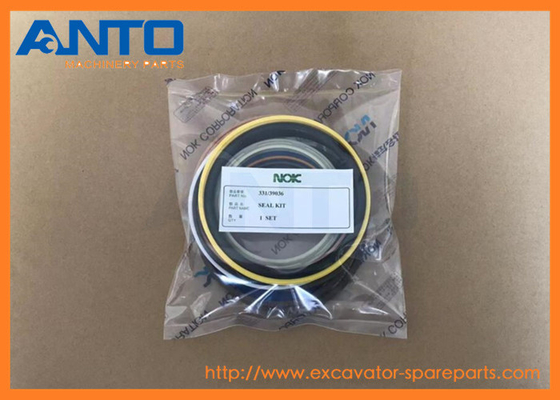

| Parts No.: | 331/39036 | Parts Name: | Boom Cylinder Ram Seal Kit |
| MOQ: | 1 Set | Item Condition: | Brand New, OEM Quality |
| High Light: | JS220 Boom Cylinder Seal Kit,331/39036 Boom Cylinder Seal Kit |
||
| spare parts name | Boom cylinder seal kit |
| Equipment Model | JCB JS220 |
| Parts Category | excavator hydraulic cylinder repair kit |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 SET |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
| 25/987606 Kit seal, end cover |
| JCB |
| 25/202001 Kit section sealing |
| JCB |
| 998/10404 Kit sealing lift section |
| JCB |
| 25/987605 Kit sealing inlet |
| JCB |
| 998/10403 Kit seal between sections |
| JCB |
| 25/976601 Kit-seal |
| JCB |
| 340/00582 Kit Pins [250mm Buckets] Bolt-On (3CX) |
| JCB |
| 210/68600 Kit-latch door retainer |
| JCB |
| 991/00112 JCB |
| 991/00112 Kit-seal 70mm rod x 110mm cyl |
| JCB |
| 594/14006 Kit End Cap |
| JCB |
| 903/20895 Kit Seal |
| JCB |
| 903/21071 Kit-seal bucket ram |
| JCB |
| Pos. | Part No | Qty | Parts name | Comments |
| A. | 331/32714 | [2] | Ram boom 125mm cyl x 85mm rod | For boom ram pipwork see E1-24-1 |
| 1 | 903/20735 | [1] | Cylinder boom ram | |
| 1-1. | 331/11849 | [1] | Bush pin bushing | |
| 2 | 331/36620 | [1] | Rod piston, boom ram | |
| 2-1. | 331/11841 | [1] | Bush pin bushing | |
| 3 | 331/36623 | [1] | Head assembly, boom ram | |
| 4 | LMU0135 | [1] | Ring snap | |
| 5 | LKU0087 | [1] | Bush | |
| 6 | 331/39036 | [1] | Kit-ram seal 125 x 85 | |
| 7 | LAU0102 | [1] | Ring u | |
| 8 | LBU0042 | [1] | Ring back-up | |
| 9 | LAU0172 | [1] | Seal wiper | |
| 10 | LBQ1203 | [1] | O Ring | |
| 11 | LBU0053 | [1] | Ring back-up | |
| 12 | 331/37590 | [1] | Seal cushion | |
| 13 | LEU0019 | [1] | Kit-seal piston head | |
| 13 | LAU0187 | [1] | Ring wiper | |
| 14 | LBU0100 | [2] | Ring back-up | |
| 15 | 331/36625 | [1] | Ring buffer | |
| 16 | 903/20736 | [2] | Ring slide | |
| 17 | LEU0005 | [2] | Ring slide | |
| 18 | LMU0234 | [1] | Shim | |
| 19 | 6004/3715Z | [12] | Capscrew | |
| 20 | 331/36626 | [1] | Ring cushion | |
| 21 | 983/10619 | [1] | Nut | |
| 22 | LUU0100 | [1] | Screw set | |
| 23 | LPU0074 | [1] | Ball steel | |
| 24 | LPU0099 | [1] | Piston | |
| 25 | LAU0130 | [2] | Seal wiper | Dump end seal |
| 25 | LAU0085 | [2] | Ring wiper | Eye end seal |
| 26 | M01X0812 | [1] | Nipple grease | |
| 26 | JHP0037 | [1] | Nipple Grease Straight |
