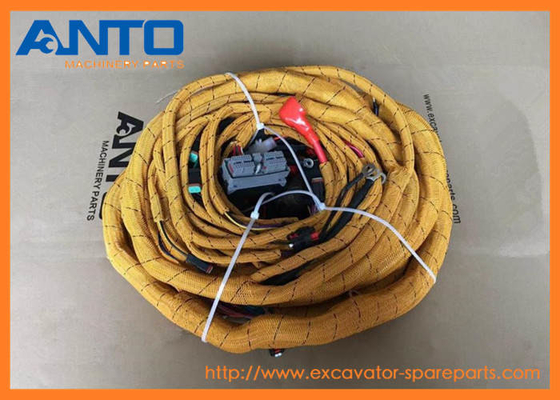

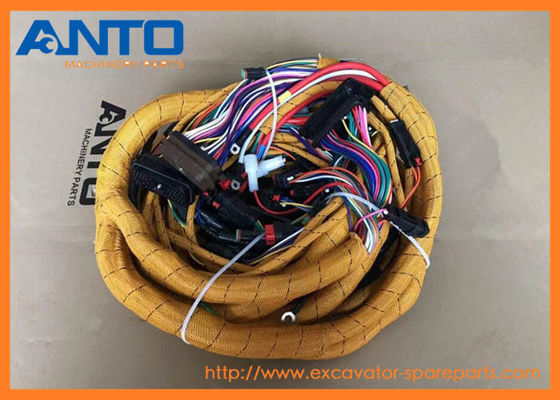

Large Image :  2917590 3068610 291-7590 306-8610 320D Chassis Harness For Excavator Electric Parts

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 320D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100-2000
Detailed Product Description
Category: Excavator Electrical Harness Parts Name: Chassis Harness
Parts Number: 2917590 3068610 291-7590 306-8610 Model: 320D 323D
Engine Model: C6.4 Warranty: 6/12 Months
High Light:

2917590 Excavator Electric Parts

,

3068610 Excavator Electric Parts

,

320D Excavator Chassis Harness

  • 2917590 3068610 291-7590 306-8610 320D Chassis Harness For Excavator Electric Part











  • Specification



spare parts name Chassis harness
Equipment Model 320D 323D
Parts Category excavator electrical harness
Spare parts Condition Brand new, OEM quality
MOQ of order(PCS, SET) 1 PCS
Parts Availability In stock
Delivery Lead time 1-3 days









  • More other harness for C A T heavy equipments



3669313 HARNESS AS-SENSOR
311D LRR, 311F LRR, 312D, 312D L, 312D2, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L, 324D LN, 325D,...

2457821 HARNESS AS-HEATER & AIR COND
320D L, 323D L, 324D, 324D L, 324D LN, 325D, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 345C, 345...

3068610 HARNESS AS-CHASSIS
320D, 323D L

2964617 HARNESS AS-ENGINE
320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA

3365889 HARNESS AS-LIGHTING
320D

3640229 HARNESS AS-CONTROL
320D, 320D L, 323D L

3068469 HARNESS AS-SOLENOID
320D

3068471 HARNESS AS-SOLENOID
320D

3886817 HARNESS AS-PLATFORM
320D, 320D GC, 320D L, 320D LN, 323D L

3068362 HARNESS AS-CONTROL
320D, 345C

3068502 HARNESS AS-SENSOR
320D, 320D L

2757004 HARNESS AS-PLATFORM
320D, 320D FM, 320D GC, 320D L, 320D LRR, 320D RR, 323D L

2849646 HARNESS AS-ALARM
324D L, 325D L, 329D L, 330D L, 336D L, M330D

4174690 HARNESS AS-SOLENOID
324D L, 325D L, 330D L, 336E, 336E L

2756840 HARNESS AS-CONTROL
320D, 324D L, 325D L, 330D L, 345C, 345C L

3080159 HARNESS AS-SOLENOID
1190, 1190T, 511, 521, 522, 532

2800551 HARNESS AS-CONSOLE
1090

2646105 HARNESS AS-SOLENOID
345C, 345C MH, W345C MH

2992963 HARNESS AS-CONTROL
320D, 320D L, 323D L

2847460 HARNESS AS-CAB
323D L, 323D LN

2833016 HARNESS AS-SENSOR
323D L

2992853 HARNESS AS-AUXILIARY
323D L, 323D LN

2757198 HARNESS AS-VALVE
323D L, 323D LN

3068610 HARNESS AS-CHASSIS
320D, 323D L









  • parts list diagram



Pos. Part No Qty Parts name Comments
1 2G-8767 [2] WASHER (10.5X60X3-MM THK)
2 3S-2093 [39] STRAP-CABLE
3 3T-5760 [2] BATTERY GP (12-VOLT, 750-CCA)
4 306-8401 [1] GROMMET (85-MM ID)
5 5I-8270 [1] COVER-BATTERY
6 5I-9368 [1] SPACER (9.24X13.72X20.5-MM THK)
7 6W-6005 [1] HOLD-DOWN-BATTERY
8 7I-2673 [4] STRAP-CABLE
9 7K-1181 [15] STRAP-CABLE
10 7Y-5456 [2] GROMMET
11 111-4836 [11] CLIP
12 111-4837 [12] CLIP
13 111-4838 [13] CLIP
14 111-4839 [13] STRAP
15 116-0118 [10] CLIP
16 132-1805 [1] STRAP AS-GROUND
17 132-1806 [1] STRAP AS-GROUND
18 170-6929 [1] CABLE AS
  5P-0761 E   CABLE (00-GA, RED)(31-CM)
  9G-0002 [1] COVER AS-TERMINAL (RED)
  9G-0005 [1] COVER AS-TERMINAL (BLACK)
  8T-9756 [1] TERMINAL AS-BATTERY (POSITIVE)
  8C-5918 [1] TERMINAL AS-BATTERY (NEGATIVE)
      (EACH TERMINAL AS INCLUDES)
  1M-6119 [1] BOLT (5/16-18X1.375-IN)
  1M-6120 [1] NUT (5/16-18-THD)
19 170-9336 [1] BRACKET AS
20 183-1049 [1] BRACKET
21 231-1827 [1] CABLE AS
  1S-7252 [1] TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
  5P-0747 E   CABLE (00-GA, BLACK)(23-CM)
  9G-0003 [1] COVER AS-TERMINAL (BLACK)
  9G-8909 [1] COVER-TERMINAL (BLACK)
  8T-9757 [1] TERMINAL AS-BATTERY (NEGATIVE)
  1M-6119 [1] BOLT (5/16-18X1.375-IN)
  1M-6120 [1] NUT (5/16-18-THD)
22 238-2501 [1] KNOB
23 238-2528 [1] ROD
24 251-0467 [1] BRACKET AS
25 259-5267 [1] BRACKET AS
26 259-5317 [1] BRACKET AS
27 291-7590 [1] HARNESS AS-CHASSIS
  121-1038 [1] HOUSING-RECEPTACLE
  103-2529 E [1] HOSE (80-CM)
  102-8802 [4] KIT-RECEPTACLE (2-PIN)
  102-8803 [2] KIT-RECEPTACLE (3-PIN)
  102-8804 [1] KIT-RECEPTACLE (4-PIN)
      (EACH RECPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
  3S-2093 [17] STRAP-CABLE
  8T-8799 [2] BOOT (RED)
  7Y-3820 E [1] HOUSING-RECEPTACLE
  116-0128 [2] SEAL
  119-3662 E   TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM)
  125-7874 E   TUBE-HEAT SHRINK (5.72-MM DIA)(95-CM)
  125-7875 E   TUBE-HEAT SHRINK (7.44-MM DIA)(50-CM)
  134-3297 [1] SEAL
  153-2620 [1] PLUG AS-CONNECTOR (54-PIN, BLACK)
  163-6759 [1] SEAL
  153-2630 [1] PLUG AS-CONNECTOR (54-PIN, BROWN)
  163-6759 [1] SEAL
  155-2260 [2] KIT-CONNECTING PLUG (3-PIN)
  155-2270 [16] KIT-CONNECTING PLUG (2-PIN)
  155-2271 [1] KIT-CONNECTING PLUG (4-PIN)
      (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
  163-6637 [1] RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)
  174-3016 [2] PLUG AS-CONNECTOR (3-PIN)
  230-4009 [3] PLUG AS-CONNECTOR (12-PIN)
  230-4011 [7] PLUG AS-CONNECTOR (2-PIN)
  230-4013 [1] PLUG AS-CONNECTOR (3-PIN)
  230-5010 [3] PLUG AS-CONNECTOR (6-PIN)
  231-2295 [2] PLUG AS-CONNECTOR (8-PIN)
  243-4505 [6] RECEPTACLE AS-CONNECTOR (2-PIN)
  243-4506 [1] RECEPTACLE AS-CONNECTOR (3-PIN)
  243-4508 [3] RECEPTACLE AS-CONNECTOR (6-PIN)
  243-4509 [2] RECEPTACLE AS-CONNECTOR (8-PIN)
  243-4510 [3] RECEPTACLE AS-CONNECTOR (12-PIN)
  245-1042 [1] PLUG AS-CONNECTOR (64-PIN)
  267-7207 M [1] BOLT-SPECIAL (M6X1-THD)
  267-7208 [1] RING-RETAINING
  274-4990 [1] SEAL
  245-1045 [1] COVER
28 291-7591 [1] CABLE AS
  1S-7252 [1] TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
  5P-0761 E   CABLE (00-GA, RED)(327-CM)
  9G-0004 [1] COVER AS-TERMINAL (RED)
  8N-0869 [1] COVER-TERMINAL (RED)
  8C-5917 [1] TERMINAL AS-BATTERY (POSITIVE)
  1M-6119 [1] BOLT (5/16-18X1.375-IN)
  1M-6120 [1] NUT (5/16-18-THD)
29 291-7593 [1] BRACKET AS
30 085-7329 [2] SPACER (9X19X30-MM THK)
31 091-9035 [1] SPACER (11X25X20-MM THK)
32 9X-8256 [6] WASHER (6.6X12X2-MM THK)
33 132-5789 [2] CLIP
34 4K-8864 [1] CLIP
35 4P-7428 [1] CLIP
36 4P-7581 [4] CLIP (LADDER)
37 5C-7261 M [1] NUT (M8X1.25-THD)
38 5C-7883 M [4] BOLT-SOCKET HEAD (M6X1X16-MM)
39 5I-3878 [1] GROMMET (50-MM ID)
40 5P-4116 [5] WASHER-HARD (8.8X20.5X2-MM THK)
41 6G-2256 [2] CLAMP
42 6G-2263 [4] SPACER (10.5X19X28.5-MM THK)
43 6K-8178 [4] CLIP
44 7X-0818 M [2] BOLT (M8X1.25X45-MM)
45 7X-2533 M [1] BOLT (M6X1X35-MM)
46 7X-2619 M [1] BOLT (M6X1X10-MM)
47 7X-2621 M [2] BOLT (M10X1.5X12-MM)
48 7Y-1924 [2] SPACER (9X19X23-MM THK)
49 7Y-5226 M [1] NUT (M5X0.8-THD)
50 7Y-8165 [1] GROMMET
51 7Y-8167 [1] GROMMET (50-MM ID)
52 8J-1256 [1] CLIP
53 8M-2770 [1] CLIP (LOOP)
54 8T-0286 M [1] BOLT (M5X0.8X8-MM)
55 8T-0328 [2] WASHER-HARD (5.5X10X1-MM THK)
56 8T-4121 [60] WASHER-HARD (11X21X2.5-MM THK)
57 8T-4133 M [1] NUT (M10X1.5-THD)
58 8T-4136 M [10] BOLT (M10X1.5X25-MM)
59 8T-4137 M [36] BOLT (M10X1.5X20-MM)
60 8T-4182 M [2] BOLT (M10X1.5X45-MM)
61 8T-4185 M [2] BOLT (M10X1.5X50-MM)
62 8T-4191 M [3] BOLT (M10X1.5X16-MM)
63 8T-4195 M [5] BOLT (M10X1.5X30-MM)
64 8T-4196 M [1] BOLT (M10X1.5X35-MM)
65 8T-4199 M [1] BOLT (M8X1.25X12-MM)
66 8T-4226 [1] WASHER-PLATED (10.5X45X3-MM THK)
67 8T-6466 M [1] BOLT (M10X1.5X60-MM)
68 8T-6912 M [2] BOLT (M8X1.25X50-MM)
  E   ORDER BY THE CENTIMETER
  M   METRIC PART
