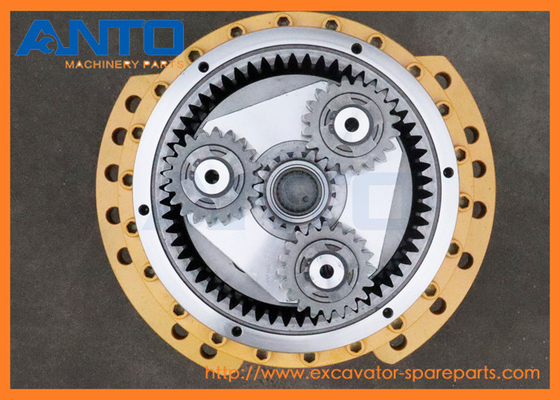

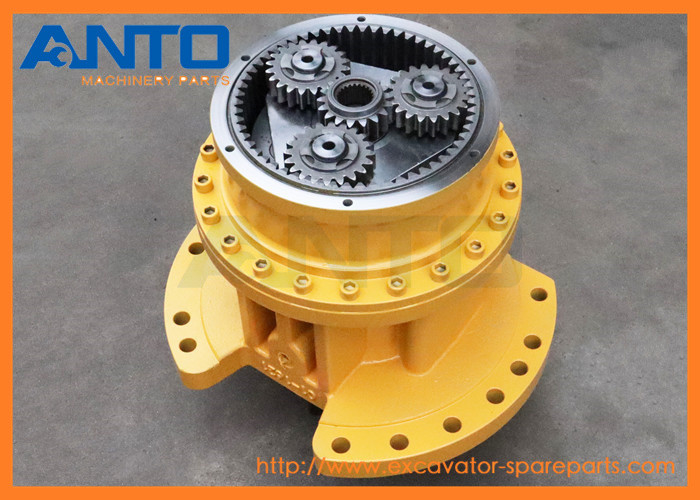

206-26-00501 206-26-00500 2062600501 2062600500 KOMATSU PC270-7 Swing Gearbox

Large Image : 206-26-00501 206-26-00500 2062600501 2062600500 KOMATSU PC270-7 Swing Gearbox

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	PC270-7

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	568 PCS per week

Contact Now

Detailed Product Description

Category:	KOMATSU Excavator Swing Gearbox	Machine Model:	PC270-7
Parts No.:	206-26-00501 206-26-00500 2062600501 2062600500	Parts Name:	Swing Gearbox Without Motor
Warranty:	6 Months	Package:	Standard Export Carton
Highlight:	PC270-7 Swing Gearbox , 2062600501 Swing Gearbox , 2062600500 Swing Gearbox

206-26-00501 206-26-00500 2062600501 2062600500 KOMATSU PC270-7 Swing Gearbox

Spec Sheet

Product name	Swing reduction gearbox without motor
Part number	206-26-00501 206-26-00500 2062600501 2062600500
Model	PC270-7
Category group	KOMATSU Excavator Swing Reduction Gearbox
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

Application

KOMATSU PC270-7 PC290LC-7K

Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
	206-26-00501	[1]	SWING MACHINERY A. Komatsu China
	["SN: 10035-@"] analogs:["RM2062600501", "2062600500"] \|1.
	206-26-00500	[1]	SWING MACHINERY A. Komatsu China
	["SN: 10001-10034"] analogs:["RM2062600500", "2062600501"] \|1.
1	206-26-71490	[1]	Komatsu	105.42 kg.
	["SN: 10001-10034"]
2	07029-00000	[1]	VALVE Komatsu	0.09 kg.
	["SN: 10001-10034"] analogs:["6127613890"]
3	20Y-26-22330	[1]	BEARING Komatsu China	3.28 kg.
	["SN: 10001-10034"] analogs:["20Y2622331", "20Y2622430"]
4	206-26-71240	[1]	BEARING Komatsu	12.83 kg.
	["SN: 10001-10034"]
5	206-26-72120	[1]	SHAFT Komatsu China
	["SN: 10001-10034"]
6	07012-00115	[1]	SEAL Komatsu	0.127 kg.
	["SN: 10001-10034"]
7	206-26-71310	[1]	SPACER Komatsu	0.81 kg.
	["SN: 10001-10034"]
8	07000-15310	[1]	O-RING Komatsu China	0.035 kg.
	["SN: 10001-@"] analogs:["0700005310"]
9	206-26-71480	[1]	CARRIER Komatsu	10.88 kg.
	["SN: 10001-@"]
10	206-26-71440	[4]	GEAR Komatsu	1.91 kg.
	["SN: 10001-@"]
11	22U-26-21320	[8]	BEARING Komatsu	1.1 kg.
	["SN: 10001-@"]
12	206-26-71520	[8]	THRUST WASHER Komatsu	0.1 kg.
	["SN: 10001-@"]
13	206-26-71510	[4]	PIN Komatsu	0.97 kg.
	["SN: 10001-@"]
14	20Y-26-21330	[4]	PIN Komatsu China	0.1 kg.
	["SN: 10001-@"]
15	20Y-26-21240	[1]	PLATE Komatsu	5.1 kg.
	["SN: 10001-@"]
16	112-32-11211	[1]	BOLT¤ SHOE Komatsu	0.09 kg.
	["SN: 10001-@"]
17	206-26-71452	[1]	GEAR Komatsu	28.79 kg.
	["SN: 10001-@"]
18	20K-22-11190	[1]	O-RING Komatsu	0.02 kg.
	["SN: 10001-@"] analogs:["20G2211190"]
19	01010-81440	[22]	BOLT Komatsu	0.073 kg.
	["SN: 10001-@"] analogs:["0101061440", "0101031440", "0101051440", "0104031440"]
20	01643-31445	[22]	WASHER Komatsu	0.019 kg.
	["SN: 10001-@"] analogs:["0164301432"]
21	206-26-71430	[1]	GEAR Komatsu	2.33 kg.
	["SN: 10001-@"]
22	04260-01270	[1]	BALL Komatsu OEM	0.009 kg.
	["SN: 10001-@"]
23	206-26-71470	[1]	CARRIER Komatsu	3.9 kg.
	["SN: 10001-@"]
24	206-26-71420	[3]	GEAR Komatsu	0.83 kg.
	["SN: 10001-@"]
25	20Y-27-22210	[3]	BEARING Komatsu China	0.12 kg.
	["SN: 10001-@"] analogs:["20Y2721260"]
26	22U-26-21230	[6]	WASHER Komatsu	1 kg.
	["SN: 10001-@"]
27	206-26-71210	[3]	PIN Komatsu	0.42 kg.
	["SN: 10001-@"]
28	04064-03515	[6]	RING Komatsu	0.005 kg.
	["SN: 10001-@"]
29	206-26-71350	[1]	HOLDER Komatsu	0.21 kg.
	["SN: 10001-@"]
30	206-26-71410	[1]	GEAR Komatsu	0.83 kg.
	["SN: 10001-@"]
31	206-26-71340	[1]	PLATE Komatsu	0.09 kg.
	["SN: 10001-@"]
32	20Y-26-31510	[1]	COVER Komatsu	7.3 kg.
	["SN: 10001-@"]
33	01010-81035	[6]	BOLT Komatsu	0.033 kg.
	["SN: 10001-@"] analogs:["801015556", "01010D1035", "0101051035"]
34	01643-51032	[6]	WASHER Komatsu	0.17 kg.
	["SN: 10001-@"] analogs:["R0164351032"]
35	07042-30617	[1]	PLUG Komatsu China
	["SN: 10001-@"]
36	07042-30108	[1]	PLUG Komatsu	0.008 kg.
	["SN: 10001-@"] analogs:["0704220108"]
37	07042-30415	[1]	PLUG Komatsu	0.056 kg.
	["SN: 10001-@"]

206-26-00501 206-26-00500 2062600501 2062600500 KOMATSU PC270-7 Swing Gearbox 0

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
