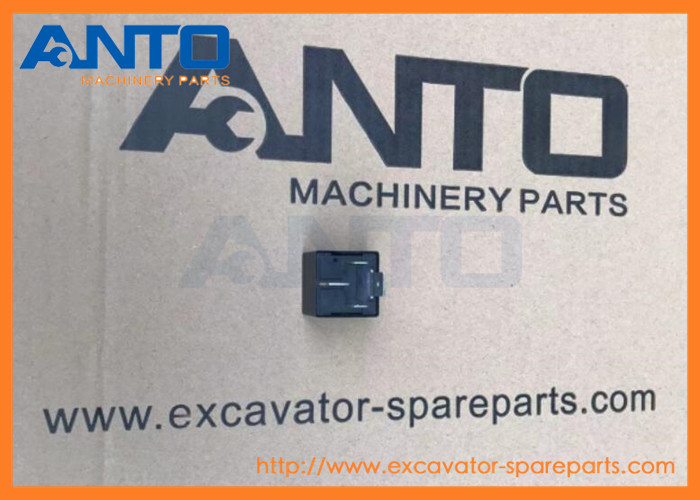

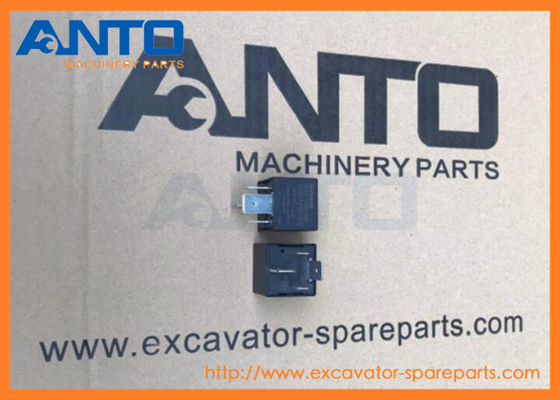

301202-00042 Relay For DOOSAN DX255LC-3 Excavator Electric Parts

Large Image : 301202-00042 Relay For DOOSAN DX255LC-3 Excavator Electric Parts

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	301202-00042

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	DOOSAN Excavator Electric Parts	Parts Name:	Relay
Parts Number:	301202-00042	Models:	DX140 DX225 DX255 DL250 DL300
Engine Model:	DOOSAN Full Range	Warranty:	6/12 Months
Highlight:	DX255LC-3 Excavator Electric Parts , 301202-00042 Excavator Electric Parts , Relay Excavator Electric Parts

301202-00042 Relay For DOOSAN DX255LC-3 Excavator Electric Parts

Specification

spare parts name	Relay
Equipment Model	DX140 DX225 DX255 DL250 DL300
Parts Category	DOOSAN excavator electric spare parts
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

More coil for DOOSAN equipments

301202-00067 RELAY,PRE HEATER

Doosan

K1053575 RELAY 70A

Doosan

301202-00153 Doosan

301202-00153 RELAY,BATTERY

Doosan

K1053324 RELAY

Doosan

301204-00009 RELAY,PREHEAT

Doosan

2544-1005A Doosan

2544-1005A RELAY;BATTERY

Doosan

2544-1011 RELAY;PREHEAT

Doosan

301202-00010 RELAY

Doosan

301202-00154 RELAY;BATTERY(12V)

Doosan

301206-00009 . RELAY,STARTER

Doosan

301206-00010 . RELAY,STARTER

Doosan

K1053326 RELAY

Doosan

parts list diagram

Pos.	Part No	Qty	Parts name	Comments
-.	300619-01085H	[-]
-.	300619-01085K	[-]
-.	300619-01085L	[-]
-.	300619-01085E	[-]
-.	300619-01085M	[-]
-.	300619-01085P	[-]
-.	300619-01085N	[-]
1	DS0025056	[4]	BOLT
10	S5102303	[14]	. WASHER
101	300611-00282A	[1]		300611-00282B
101	300611-00282B	[1]
101	300611-00282	[1]
101	300611-00282C	[1]
101	300611-00282E	[1]
101-1.	970306-00080	[1]
102	300619-01179A	[1]
11	S3450983	[4]	SCREW
12	S5100003	[4]	WASHER
13	S3450343	[4]	SCREW
14	549-00090A	[1]	SWITCH,TOGGLE
15	K1001702A	[1]	SWITCH;TOGGLE
16	K1004427	[1]	PLATE,NAME
17	K1004425	[1]	PLATE;NAME
18	K1004426	[1]	PLATE,NAME
19	300611-00271	[1]	CONTROLLER;WIPER MOTOR
19	300611-00271A	[1]	CONTROLLER,WIPER
2	547-00023	[1]	SENSOR
20	300612-00001A	[1]		300612-00001B
20	300612-00001B	[1]
21	2543-9015	[1]	CONTROLLER;STARTER
22	S3450953	[8]	SCREW
22	S3450953	[6]	SCREW
23	K1052850D31	[1]
24	310207-00708	[1]	HARNESS
25	S3450863	[2]	SCREW
26	545-00011	[1]	RESISTOR,AUXILIARY
27	K1052850D21	[1]
28	DS0025033	[7]	BOLT
29	310207-00972G	[1]		310207-00972H
29	310207-00972E	[1]		310207-00972G
29	310207-00972H	[1]
29	310207-00972K	[1]
29	310207-00972L	[1]
29A.	2527-1016	[16]	FUSE,BLADE 10A
29B.	2527-1017	[6]	FUSE,BLADE 15A
29C.	2527-1018	[4]	FUSE,BLADE 20A
29D.	2527-1025	[2]	FUSE,BLADE 30A
3	301202-00042	[2]	RELAY
31	124-00208D4	[4]	CLIP
32	124-00208D2	[2]	CLAMP
33	124-00208D3	[6]	CLIP
34	124-00208D5	[1]	CLIP
35	124-00208D6	[2]	CLIP
36	124-00208D11	[2]	CLIP
37	K1001029	[12]	BOLT
38	2120-2196D12	[2]	BOLT;SET
4	D913109	[4]
40	K1052850D30	[1]
41	110433-00005	[1]
42	S3641563	[4]	SCREW
43	2121-1305	[4]	NUT
44	2120-2166D53	[5]	. SCREW
45	300426-00089	[1]		300426-00089A
45	300426-00089A	[1]		300426-00089B
45	300426-00089B	[1]
45-1.	970304-00007	[1]
47	2528-9040	[1]	METER;HOUR	800224-00011
47	800224-00011	[1]	METER,HOUR
48	530-00434B	[1]	HARNESS,HOUR METER
48	110420-00330	[1]	BRACKET
49	310101-00035	[1]	TIE,CABLE
5	K1053326	[6]	RELAY
50	DS0025049	[1]	BOLT M8x1.25x25
51	S3450973	[2]	SCREW M6X1.0X16
6	S3450833	[4]	BOLT
7	S5100203	[6]	WASHER
8	2516-1116	[1]	BUZZER
9	S3450943	[2]	SCREW

301202-00042 Relay For DOOSAN DX255LC-3 Excavator Electric Parts 0

All spare parts are produced as per genuine standard system

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
