280BA400 Angular Contact Ball Bearing 280x400x47 mm MM Deep Grove Ball Bearing

280BA400 Angular Contact Ball Bearing 280x400x47 mm MM Deep Grove Ball Bearing
280BA400 Angular Contact Ball Bearing 280x400x47 mm MM Deep Grove Ball Bearing

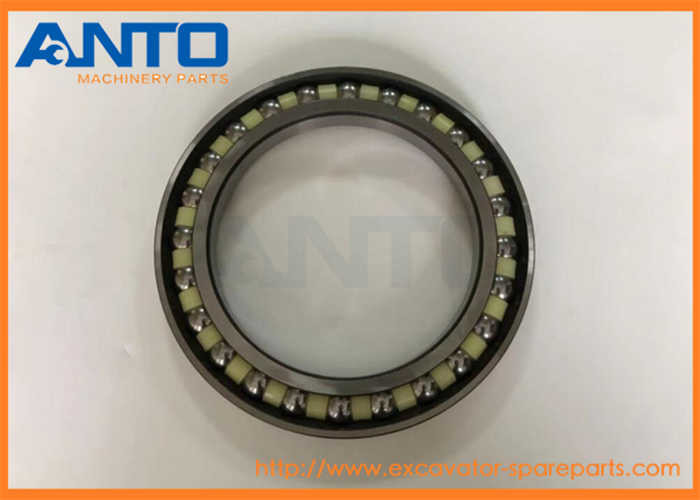

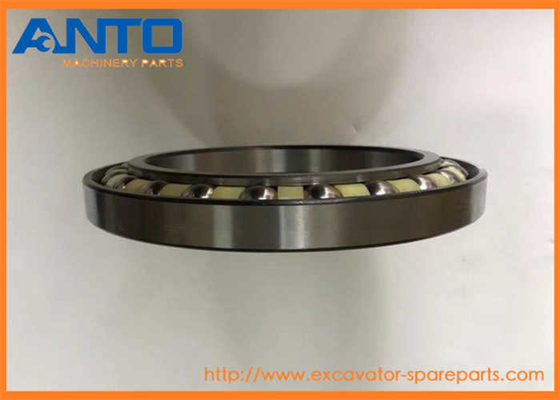

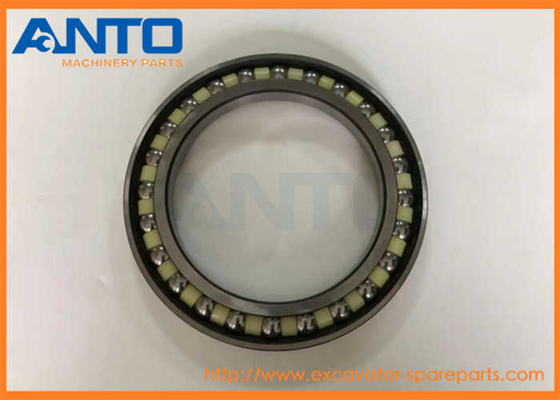

Large Image :  280BA400 Angular Contact Ball Bearing 280x400x47 mm MM Deep Grove Ball Bearing

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Model Number: 280BA400
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 1-3 working days
Payment Terms: L/C, T/T, Western Union, PAYPAL
Supply Ability: 9999 SETS
Detailed Product Description
Bearing Number: 280BA400 Size: 280x400x47 MM
Bore Diameter: 280 (mm) Outer Diameter: 400 (mm)
Width: 47 (mm) Weight: 14.0 Kg
High Light:

280BA400 Angular Contact Ball Bearing

,

280x400x47mm Angular Contact Ball Bearing

  • 280BA400 Angular Contact Ball Bearing 280x400x47 mm MM Deep Grove Ball Bearing
Angular contact ball bearings 280BA400
Bearing number : 280BA400

Size (mm) : 280x400x47mm

Bore Diameter (mm) : 280

Outer Diameter (mm) : 400

Width (mm) : 47

d - 280 mm

D - 400 mm

T - 47.0mm

B - 36.0 mm

C - 36.0 mm





Angular contact ball bearings are especially suitable for bearing combined loads, that is, loads acting at the same time in radial and axial directions. The axial load bearing capacity increases with the increase of the contact angle α. The contact angle is defined as: the angle between the common normal of the contact point of the rolling element and the raceway or the midpoint of the contact line and the radial plane of the bearing is called the bearing contact angle, and the load is transmitted from one raceway to the other along this connection line. , For single-row bearings, the contact angle can be identified by different code suffixes.                                                                                                                         280BA400 Angular Contact Ball Bearing 280x400x47 mm MM Deep Grove Ball Bearing 0


  • Our ability

We can produce many categories and more than 6000 specifications of high-quality bearing products for various purposes and performances, which are sold well in various provinces, municipalities, autonomous regions and more than 50 countries and regions in the world. Many bearing products have won national silver medals and provincial and municipal high-quality bearings.
1. According to the application field, the bearings are divided into: automotive bearings, agricultural machinery bearings, machine tool bearings, motor bearings, fan bearings, textile machinery bearings, mining machinery bearings, paper machinery bearings, chemical machinery bearings, cement plant bearing maintenance, power plant bearings, etc.
2. According to the bearing type, it is divided into: deep groove ball bearing, self-aligning ball bearing, angular contact ball bearing, cylindrical roller bearing, tapered roller bearing, spherical ball bearing with seat, thrust ball bearing, self-aligning roller bearing, Combined rolling bearings such as thrust angular contact ball bearings and thrust spherical roller bearings.
3. According to the characteristics of use: stainless steel bearings, high temperature bearings, low temperature bearings, corrosion-resistant bearings, high-speed bearings, insulating bearings, silent bearings, chemical fiber bearings, vacuum bearings, fitness equipment bearings, self-lubricating bearings, anti-magnetic bearings, anti-sulfur bearings.






  • Factory operation workshop

280BA400 Angular Contact Ball Bearing 280x400x47 mm MM Deep Grove Ball Bearing 1




  • Lead time and delivery

We stock most of popular models of bearing, and delivery can be arranged in short time for your urgent request.

We can arrange delivery by express, for example DHL, FEDEX, TNT, UPS, EMS, ShunFeng. Or by air cargo to local airport. For any large amount of bearing request, we are able to arrange delivery by sea/boat.
