Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Swing Reduction Gear | Machine Model: | ZX130-3 ZX120-3 ZX110-3 ZX135-3 |
|---|---|---|---|
| Parts No.: | 9262017 9277217 | Parts Name: | Swing Reduction Gearbox |
| Warranty: | 6 Months | Package: | Standard Export Carton |
| High Light: | ZX130-3 Swing Reduction,9262017 Swing Reduction,ZX120-3 Excavator Swing Gear |
||
| Product name | Swing reduction gearbox |
| Part number | 9262017 9277217 |
| Model | ZX130-3 ZX120-3 ZX110-3 ZX135-3 |
| Category group | HITACHI Excavator Reduction |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
ZX110-3 ZX110-3-AMS ZX110-3-HCME ZX110M-3 ZX110M-3-HCME ZX120-3 ZX130-3 ZX130-3-AMS ZX130-3-HCME ZX130K-3 ZX130LCN-3F-AMS ZX130LCN-3FHCME ZX135US-3 ZX135US-3-HCME ZX135US-3F-AMS ZX135US-3F-HCME ZX135USK-3 ZX140W-3 ZX140W-3-AMS ZX140W-3DARUMA Hitachi
| 4654431 T.MISSION (6/8) |
| ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA, ZX145W-3-AMS |
| (9277217) T.MISSION (SWING) |
| ZX110-3, ZX110-3-AMS, ZX110-3-HCME, ZX110M-3, ZX110M-3-HCME, ZX120-3, ZX130-3, ZX130-3-AMS, ZX130-3-HCME, ZX130K-3, ZX130LCN-3F-AMS, ZX130LCN-3FHCME |
| 9255175 T.MISSION (SWING) |
| ZX135US-3, ZX135US-3-HCME, ZX135US-3F-AMS, ZX135US-3F-HCME, ZX135USK-3, ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA, ZX145W-3, ZX145W-3-AMS |
| 9277217 T.MISSION (SWING) |
| ZX135US-3, ZX135US-3-HCME, ZX135US-3F-AMS, ZX135US-3F-HCME, ZX135USK-3, ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA |
| 9298829 T.MISSION (SWING) |
| ZX135US-3, ZX135US-3-HCME, ZX135US-3F-AMS, ZX135US-3F-HCME, ZX135USK-3, ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA, ZX145W-3, ZX145W-3-AMS |
| 4654432 T.MISSION |
| ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA, ZX145W-3-AMS |
| 9311584 T.MISSION (SWING) |
| ZX240-5G, ZX240LC-5G, ZX250H-5G, ZX250K-5G, ZX250LC-5B, ZX250LCH-5G, ZX250LCK-5G, ZX250LCN-5B |
| 9248351 T.MISSION |
| ZX55UR-2, ZX55UR-3, ZX55UR-3D |
| 3043989 T.MISSION |
| LX100 |
| 9211625 T.MISSION |
| EX3500, EX3600-5 |
| 9174830 T. MISSION (TRAVEL) |
| EX5600-6BH, EX5600-6LD |
| 4620675 T.MISSION |
| SCX700-2, SCX800-2, SCX800HD-2 |
| 4393907 T.MISSION |
| CX1000, CX1100 |
| 4198395 T.MISSION |
| KH180-3, KH230-3 |
| 4167652 T.MISSION |
| KH180-3, KH300 |
| 9258608 T.MISSION (SWING) |
| ZX240-3, ZX240-3-HCMC, ZX240-3G, ZX240LC-3G, ZX250H-3, ZX250H-3G, ZX250K-3, ZX250K-3G, ZX250LC-3-HCMC, ZX250LC-3-HCME, ZX250LC-3G, ZX250W-3, ZX260LCH-3G |
| 1185401 Hitachi |
| 1185401 T.MISSION |
| ZX40U-3, ZX40U-3U, ZX40U-5A, ZX48U-3, ZX48U-3F, ZX50U-3, ZX50U-3F, ZX50U-3U, ZX50U-5A, ZX50U-5N, ZX52U-3, ZX52U-3F, ZX55UR-3, ZX55UR-3D, ZX60USB-3, ZX60USB-3F, ZX60USBNA-3, ZX65USB-3F |
| 4153248 T.MISSION |
| KH180-3 |
| Pos. | Part No | Qty | Parts name | Comments |
| 9262017 | [1] | T.MISSION (SWING) | I 9298829 <for assembly of machine> | |
| 9277217 | [1] | T.MISSION (SWING) | I 9298829 <for transportation> | |
| 0 | 2053848 | [1] | SHAFT;PROP. | |
| 1 | 3083710 | [1] | SLEEVE | |
| 2 | A811095 | [1] | O-RING | |
| 3 | 4430041 | [1] | BRG.;ROL. | |
| 4 | 4411143 | [1] | SEAL;OIL | |
| 5 | 1033421 | [1] | HOUSING | |
| 6 | 4408119 | [1] | BRG.;ROL. | |
| 7 | 3083674 | [1] | NUT | |
| 8 | 4407745 | [1] | PLATE;LOCK | |
| 11 | 2042965 | [1] | CARRIER | |
| 12 | 4176070 | [1] | PLATE;THRUST | |
| 13 | 4408102 | [3] | PIN | |
| 14 | 4414855 | [3] | BRG.;NEEDLE | |
| 15 | 3084940 | [3] | GEAR;PLANETARY | |
| 16 | 4414833 | [6] | PLATE;THRUST | |
| 17 | 4116308 | [6] | PIN;SPRING | |
| 19 | 3092035 | [1] | GEAR;SUN | |
| 20 | 2045146 | [1] | GEAR;RING | |
| 21 | M341440 | [12] | BOLT;SOCKET | |
| 22 | J901016 | [2] | BOLT | |
| 23 | 2042964 | [1] | CARRIER | |
| 24 | 4244904 | [1] | PLATE;THRUST | |
| 25 | 4408122 | [3] | PIN | |
| 26 | 4430040 | [3] | BRG.;NEEDLE | |
| 27 | 3083741 | [3] | GEAR;PLANETARY | |
| 28 | 4408002 | [3] | PLATE;THRUST | |
| 29 | 3083740 | [1] | GEAR;SUN | |
| 31 | 3087949 | [1] | PIPE | |
| 33 | 94-2012 | [1] | PLUG | |
| 34 | 4445352 | [1] | PLUG |

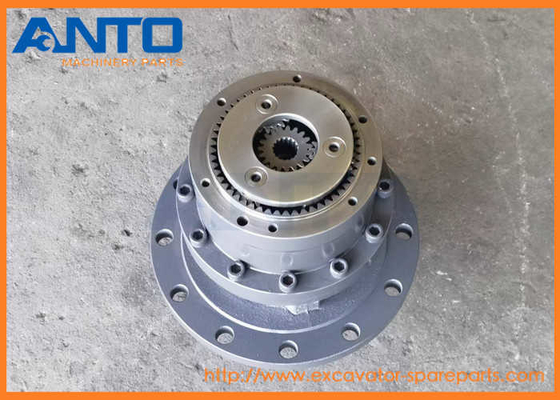

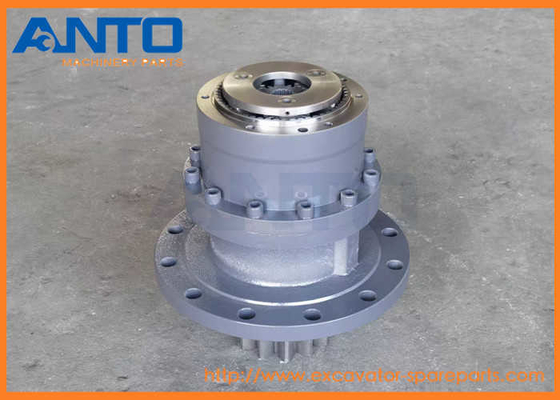

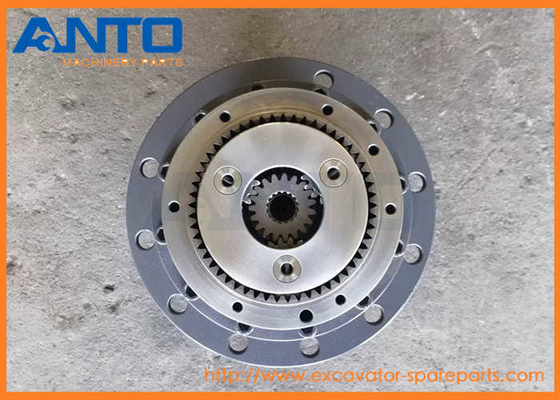

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
