Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Swing Reduction Gear | Machine Model: | DOOSAN SOLAR 130-V 140-V 150-V 140W 130W |
|---|---|---|---|
| Parts No.: | 104-00019 | Parts Name: | Ring Gear |
| Warranty: | 6/12 Months | Package: | Standard Export Carton |

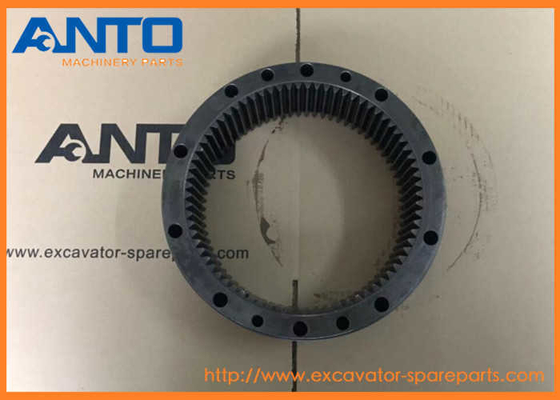

| Product name | Ring gear |
| Part number | 104-00019 |
| Model | DOOSAN SOLAR 130-V 140-V 150-V 140W-V 130W-V 160W-V |
| Category group | DOOSAN Excavator Swing Reduction Gear |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
DOOSAN DX140W
DOOSAN SOLAR 130LC-V 140LC-V 150LC-V 155LC-V 130W-V 140W-V 160W-V

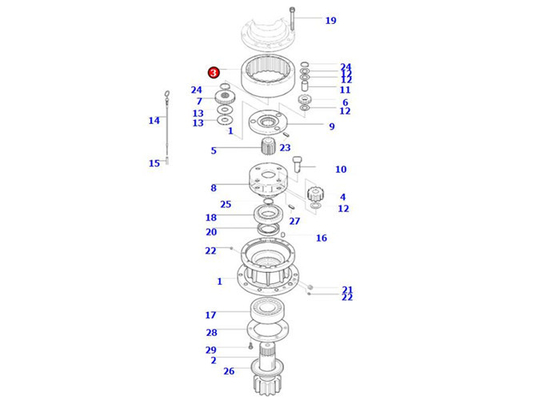

| Pos. | Part No | Qty | Parts name | Comments |
| -. | 2404-1066A | [1] | SWING REDUCTION GEAR Komatsu China | |
| ["SERIAL: 261-1004", "SERIAL_NO: 261~1004", "desc: REDEUTEUR D'ORIENTATION"] | ||||
| -. | 404-00062 | [1] | SWING REDUCTION GEAR Komatsu China | |
| ["SERIAL: 1005", "SERIAL_NO: 1005~", "desc: REDEUTEUR D'ORIENTATION"] | ||||
| 1 | 402-00017 | [1] | CASING Komatsu China | |
| ["desc: CARTER"] | ||||
| 2 | 405-00006 | [1] | SHAFT;DRIVE Komatsu China | |
| ["desc: ARBRE"] | ||||
| 3 | 104-00019 | [1] | GEAR;RING Komatsu China | |
| ["desc: PIGNON"] | ||||
| 4 | 404-00063 | [4] | GEAR;PLANET NO.2 Komatsu China | |
| ["desc: PIGNON"] | ||||
| 5 | 404-00064 | [1] | GEAR;SUN NO.2 Komatsu China | |
| ["desc: PIGNON"] | ||||
| 6 | 404-00065 | [3] | GEAR;PLANET NO.1 Komatsu China | |
| ["desc: PIGNON"] | ||||
| 7 | 404-00066 | [1] | GEAR;SUN NO.1 Komatsu China | |
| ["desc: PIGNON"] | ||||
| 8 | 230-00017 | [1] | CARRIER NO.2 Komatsu China | |
| ["desc: SUPPORT"] | ||||
| 9 | 230-00018 | [1] | CARRIER NO.1 Komatsu China | |
| ["desc: SUPPORT"] | ||||
| 10 | 123-00094 | [4] | PIN ASS'Y NO.2 Komatsu China | |
| ["desc: BROUCHE"] | ||||
| 11 | 123-00095 | [3] | PIN ASS'Y NO.1 Komatsu China | |
| ["desc: BROUCHE"] | ||||
| 12 | 2114-1594 | [13] | WASHER;THUST(B) Komatsu China | |
| ["desc: RONDELLE"] | ||||
| 13 | 2114-1592 | [2] | WASHER;THUST(A) Komatsu China | |
| ["desc: RONDELLE"] | ||||
| 14 | 119-00003 | [1] | BAR;LEVEL Komatsu China | |
| ["desc: CONDUITE"] | ||||
| 15 | 182-00009 | [1] | PIPE;LEVEL GAUGE Komatsu China | |
| ["desc: CONDUITE"] | ||||
| 16 | 123-00096 | [2] | PIN;KNOCK Komatsu China | |
| ["desc: BROUCHE"] | ||||
| 17 | 2109-1041 | [1] | BEARING;ROLLER Komatsu China | |
| ["desc: PALIER"] | ||||
| 18 | 2109-1042 | [1] | BEARING;ROLLER Komatsu China | |
| ["desc: PALIER"] | ||||
| 19 | S2216873 | [10] | BOLT;SOCKET Komatsu China | |
| ["desc: BOULON A 6 PANS CREUX"] | ||||
| 20 | 180-00179 | [1] | SEAL;OIL Komatsu China | |
| ["desc: BAGUE DE HUILE"] | ||||
| 21 | 2181-1116D4 | [1] | PLUG(B) Komatsu China | |
| ["desc: BOUCHON"] | ||||
| 22 | 2181-1116D2 | [2] | PLUG(A) Komatsu China | |
| ["desc: BOUCHON"] | ||||
| 23 | S5740890 | [3] | PIN;SPRING Komatsu China | |
| ["desc: BROUCHE"] | ||||
| 24 | S6500300 | [4] | RING;RETAINER Komatsu China | |
| ["desc: BAGUE"] | ||||
| 25 | S6500650 | [1] | RING;RETAINER Komatsu China | |
| ["desc: BAGUE"] | ||||
| 26 | 115-00037 | [1] | RING;NILOS Komatsu China | |
| ["desc: BAGUE"] | ||||
| 27 | S5740900 | [4] | PIN;SPRING Komatsu China | |
| ["desc: GOUPILLE ELASTIQUE"] | ||||
| 28 | 191-00167 | [2] | PLATE;SUPPORT Komatsu China | |
| ["desc: PLAQUE"] | ||||
| 29 | S3453116 | [6] | BOLT;SCREW Komatsu China | |
| ["desc: BOULON"] |
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
