Product Details:
Payment & Shipping Terms:
|

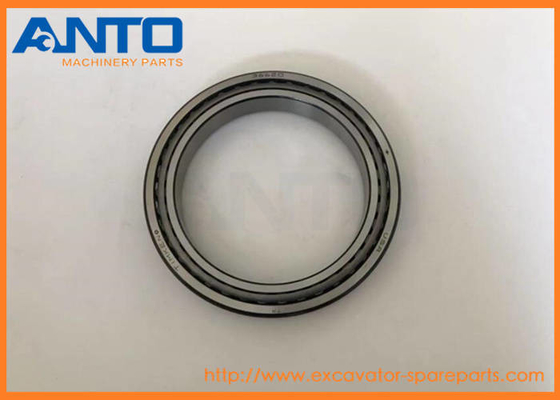

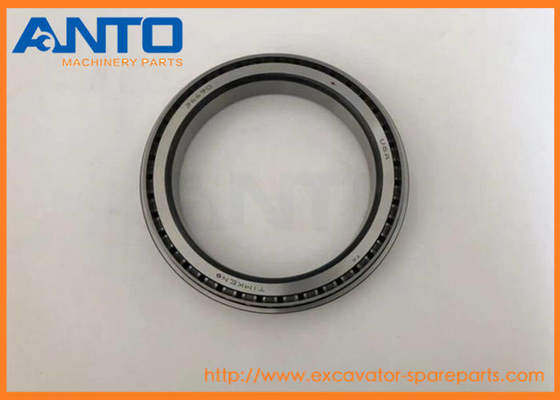

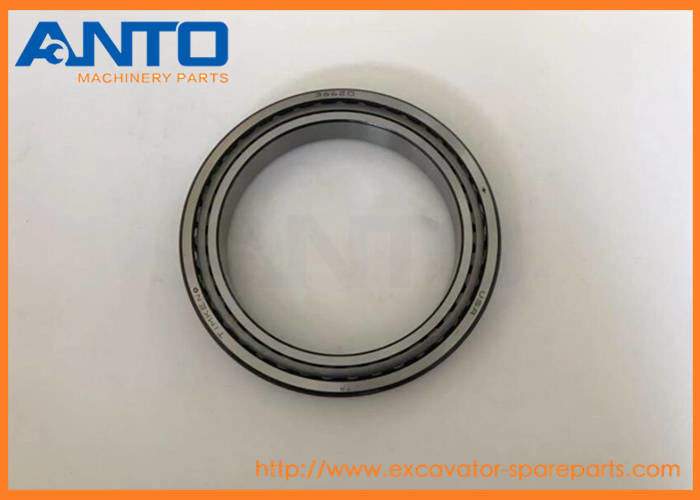

| Bearing Number: | 36690/36620 | Size: | 146.05x193.675x28.575 MM |
|---|---|---|---|
| Bore Diameter: | 146.05 (mm) | Outer Diameter: | 193.675 (mm) |
| Width: | 28.575 (mm) | Weight: | 2.4 Kg |
| d - 146,05 mm |
| D - 193,675 mm |
| T - 28,575 mm |
| B - 28,575 mm |
| C - 23,02 mm |
| ra1 max. - 1,5 mm |
| a - 33,5 mm |
| r min. - 1,5 mm |
| r1 min. - 1,5 mm |
| Da - 182 mm |
| db - 154 mm |
| ra max. - 1,5 mm |
| da - 155 mm |
| Db - 188 mm |
| Weight - 2,365 Kg |
| Basic dynamic load rating (C) - 170 kN |
| Basic static load rating (C0) - 355 kN |
| (Grease) Lubrication Speed - 1600 r/min |
| (Oil) Lubrication Speed - 2200 r/min |
| Calculation factor (e) - 0,37 |
| Calculation factor (Y0) - 0,9 |
| Calculation factor (Y1) - 1,6 |
Tapered Roller Bearings
When the tapered roller bearing is designed, the three extension lines of the inner and outer raceway generatrix and the roller center line intersect at one point on the bearing center line. Therefore, the rollers achieve pure rolling on the raceway.
Tapered roller bearings are especially suitable for bearing radial loads and unidirectional axial loads and their combined loads. The larger the contact angle, the larger the axial load capacity. Even if it is used to bear pure radial load, there will be an axial component force, so it is usually used in pairs with two sets of bearings.
Tapered roller bearings are divided into three types: single row, double row and four row.
We can produce many categories and more than 6000 specifications of high-quality bearing products for various purposes and performances, which are sold well in various provinces, municipalities, autonomous regions and more than 50 countries and regions in the world. Many bearing products have won national silver medals and provincial and municipal high-quality bearings.
1. According to the application field, the bearings are divided into: automotive bearings, agricultural machinery bearings, machine tool bearings, motor bearings, fan bearings, textile machinery bearings, mining machinery bearings, paper machinery bearings, chemical machinery bearings, cement plant bearing maintenance, power plant bearings, etc.
2. According to the bearing type, it is divided into: deep groove ball bearing, self-aligning ball bearing, angular contact ball bearing, cylindrical roller bearing, tapered roller bearing, spherical ball bearing with seat, thrust ball bearing, self-aligning roller bearing, Combined rolling bearings such as thrust angular contact ball bearings and thrust spherical roller bearings.
3. According to the characteristics of use: stainless steel bearings, high temperature bearings, low temperature bearings, corrosion-resistant bearings, high-speed bearings, insulating bearings, silent bearings, chemical fiber bearings, vacuum bearings, fitness equipment bearings, self-lubricating bearings, anti-magnetic bearings, anti-sulfur bearings.
We stock most of popular models of bearing, and delivery can be arranged in short time for your urgent request.
We can arrange delivery by express, for example DHL, FEDEX, TNT, UPS, EMS, ShunFeng. Or by air cargo to local airport. For any large amount of bearing request, we are able to arrange delivery by sea/boat.
