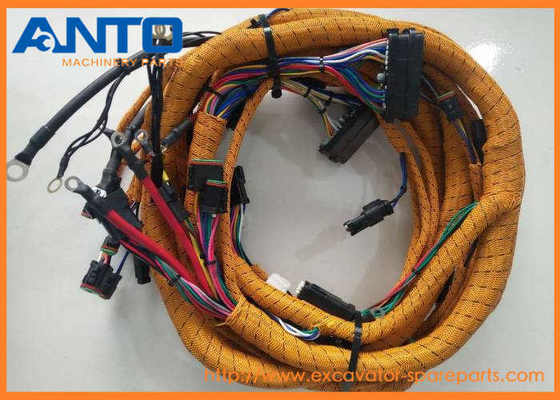

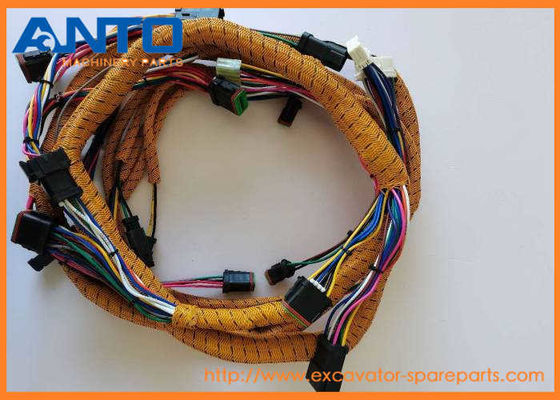

271-3511 2713511 Direct Injection Main Wiring Harness for 312C Excavator Parts

271-3511 2713511 Direct Injection Main Wiring Harness for 312C Excavator Parts
271-3511 2713511 Direct Injection Main Wiring Harness for 312C Excavator Parts 271-3511 2713511 Direct Injection Main Wiring Harness for 312C Excavator Parts

Large Image :  271-3511 2713511 Direct Injection Main Wiring Harness for 312C Excavator Parts

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 271-3511
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100-2000
Detailed Product Description
Category: Electrical Spare Parts Model: 312C
Parts No.: 271-3511 Parts Name: Main Wire Harness
Warranty: 3/6/12 Months Package: Standard Box Package



  • 271-3511 2713511 Direct Injection Main Wiring Harness for 312C Excavator Parts




  • Specification



Excavator spare parts name Main wiring harness
Equipment Model 312C
Parts Category Excavator electrical spare parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Application

EXCAVATORS 312C




Pos. Part No Qty Parts name Comments
1. 3S-2093 [34] STRAP-CABLE
2. 4I-5426 [1] GROMMET
3. 4I-5399 [2] GROMMET
4. 8T-4137 M [33] BOLT (M10X1.5X20-MM)
5. 8T-4121 [58] WASHER-HARD (11X21X2.5-MM THK)
6. 111-4836 [19] CLIP
7. 8T-4133 M [2] NUT (M10X1.5-THD)
8. 5I-8304 [1] ROD
9. 8T-4226 [1] WASHER-PLATED (10.5X45X3-MM THK)
10. 5C-7261 M [2] NUT (M8X1.25-THD)
11. 7X-2621 M [8] BOLT (M10X1.5X12-MM)
12. 116-0118 [17] CLIP
13. 267-8350 [1] HARNESS AS-CHASSIS
  3S-2093 [12] STRAP-CABLE
  102-8802 [4] KIT-RECEPTACLE (2-PIN)
  102-8803 [1] KIT-RECEPTACLE (3-PIN)
  102-8804 [1] KIT-RECEPTACLE (4-PIN)
  102-8806 [1] KIT-RECEPTACLE (8-PIN)
  102-8801 [3] KIT-RECEPTACLE (12-PIN)
        (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
  155-2255 [3] KIT-CONNECTING PLUG (12-PIN)
  155-2265 [1] KIT-CONNECTING PLUG (8-PIN)
  155-2260 [3] KIT-CONNECTING PLUG (3-PIN)
  155-2270 [6] KIT-CONNECTING PLUG (2-PIN)
  155-2274 [1] KIT-CONNECTING PLUG (6-PIN)
        (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
14. 8T-4191 M [9] BOLT (M10X1.5X16-MM)
15. 7G-1060 [1] STRAP AS-GROUND
16. 7Y-5456 [2] GROMMET
17. 111-4838 [7] CLIP
18. 111-4839 [7] STRAP
19. 132-1805 [2] STRAP AS-GROUND
20. 212-3880 Y [1] PANEL GP-CIRCUIT BREAKER
21. 8T-4195 M [2] BOLT (M10X1.5X30-MM)
22. 7K-1181 [11] STRAP-CABLE
23. 170-6930 [1] CABLE AS
  1S-7252 [1] TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
  5P-0747 E   CABLE (00-GA, BLACK)(96-CM)
  7N-5274 [1] COVER AS-TERMINAL (BLACK)(BATTERY)
  9G-8909 [1] COVER-TERMINAL (BLACK)(RING)
  3S-6050 [1] TERMINAL AS-BATTERY (NEGATIVE)
  1M-6119 [1] BOLT (5/16-18X1.375-IN)
  1M-6120 [1] NUT (5/16-18-THD)
24. 6K-8178 [1] CLIP
25. 204-1763 [1] CABLE AS
  1S-7252 [1] TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
  5P-0761 E   CABLE (00-GA, RED)(199-CM)
  8N-0869 [1] COVER-TERMINAL (RED)(RING)
  9G-0004 [1] COVER AS-TERMINAL (RED)(BATTERY)
  8C-5917 [1] TERMINAL AS-BATTERY (POSITIVE)
  1M-6119 [1] BOLT (5/16-18X1.375-IN)
  1M-6120 [1] NUT (5/16-18-THD)
26. 093-2068 [1] GROMMET
27. 111-4837 [4] CLIP
28. 271-3511 C [1] HARNESS AS-CHASSIS
  7Y-3820 [1] HOUSING-RECEPTACLE
  8T-8799 [1] BOOT (RED)
  3S-2093 [11] STRAP-CABLE
  102-8802 [10] KIT-RECEPTACLE (2-PIN)
  102-8803 [4] KIT-RECEPTACLE (3-PIN)
  102-8804 [1] KIT-RECEPTACLE (4-PIN)
  102-8805 [1] KIT-RECEPTACLE (6-PIN)
  102-8806 [2] KIT-RECEPTACLE (8-PIN)
  102-8801 [2] KIT-RECEPTACLE (12-PIN)
        (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
  127-5483 [1] PLUG AS-CONNECTOR (1-PIN)
  153-2620 [1] PLUG AS-CONNECTOR (54-PIN, BLACK)
  163-6759 [1] SEAL
  153-2630 [1] PLUG AS-CONNECTOR (54-PIN, BROWN)
  163-6759 [1] SEAL
  155-2255 [1] KIT-CONNECTING PLUG (12-PIN)
  155-2265 [3] KIT-CONNECTING PLUG (8-PIN)
  155-2260 [6] KIT-CONNECTING PLUG (3-PIN)
  155-2270 [20] KIT-CONNECTING PLUG (2-PIN)
  155-2271 [1] KIT-CONNECTING PLUG (4-PIN)
  155-2274 [2] KIT-CONNECTING PLUG (6-PIN)
        (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
29. 267-7579 [2] LINER
30. 5I-4365 [1] GROMMET
31. 170-6929 [1] CABLE AS
  5P-0761 E   CABLE (00-GA, RED)(31-CM)
  9G-0002 [1] COVER AS-TERMINAL (RED)
  9G-0005 [1] COVER AS-TERMINAL (BLACK)
  8C-5918   TERMINAL AS-BATTERY (NEGATIVE)
  8T-9756 [1] TERMINAL AS-BATTERY (POSITIVE)
        (EACH TERMINAL AS INCLUDES)
  1M-6119 [1] BOLT (5/16-18X1.375-IN)
  1M-6120 [1] NUT (5/16-18-THD)
32. 7Y-8169 [1] GROMMET
33. 3T-5760 [2] BATTERY GP (12-VOLT, 750-CCA)
        (EACH INCLUDES)
  123-1373 [6] CAP AS-FILLER (7/8-9-THD)
34. 6W-6005 [1] HOLD-DOWN-BATTERY
35. 5I-8270 [1] COVER-BATTERY
36. 5P-4116 [1] WASHER-HARD (8.8X20.5X2-MM THK)
37. 4P-7581 [2] CLIP (LADDER)
38. 6G-2263 [4] SPACER (10.5X19X28.5-MM THK)
39. 7X-0818 M [1] BOLT (M8X1.25X45-MM)
40. 7I-2673 [5] STRAP-CABLE
41. 8T-4136 M [2] BOLT (M10X1.5X25-MM)
42. 8T-0328 [2] WASHER-HARD (5.5X10X1-MM THK)
43. 7Y-5226 M [1] NUT (M5X0.8-THD)
44. 7X-2619 M [1] BOLT (M6X1X10-MM)
45. 9X-8256 [1] WASHER (6.6X12X2-MM THK)
46. 204-1901 [1] BRACKET AS
47. 7X-2533 M [1] BOLT (M6X1X35-MM)
48. 5I-9368 [1] SPACER (9.24X13.72X20.5-MM THK)
49. 9M-8406 [1] CLIP (LOOP)
50. 8T-4224 [1] WASHER-HARD (8.8X16X2-MM THK)
51. 8T-0286 M [1] BOLT (M5X0.8X8-MM)
52. 4I-5480 [2] WASHER (11X72X3-MM THK)
53. 4I-5479 [1] CLAMP
54. 8T-4172 M [1] BOLT (M10X1.5X80-MM)
55. 5P-4115 [1] WASHER-HARD (7.2X19X2-MM THK)
56. 102-7886 [1] SPACER (11X20X80-MM THK)
57. 8T-4198 M [1] BOLT (M10X1.5X100-MM)
58. 4P-8134 [6] CLIP (LADDER)
59. 8T-4185 M [1] BOLT (M10X1.5X50-MM)
60. 227-7153 [1] SHEET AS
61. 8T-4192 M [1] BOLT (M12X1.75X25-MM)
62. 8T-4223 [1] WASHER-HARD (13.5X25.5X3-MM THK)
63. 4D-1836 [1] SWITCH-TOGGLE (ENGINE SHUTDOWN)
64. 3E-5169 [1] GUARD-SWITCH
65. 204-1868 [1] INSULATOR
66. 238-1497 [1] HARNESS AS-SWITCH (SHUTDOWN)
  102-8802 [1] KIT-RECEPTACLE (2-PIN)
        (INCLUDES RECEPTACLE AS & WEDGE)
67. 136-0344 [1] GROMMET
  C     CHANGE FROM PREVIOUS TYPE
  E     ORDER BY THE CENTIMETER
  M     METRIC PART
  Y     SEPARATE ILLUSTRATION







  • Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.



  • Advantage



1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
