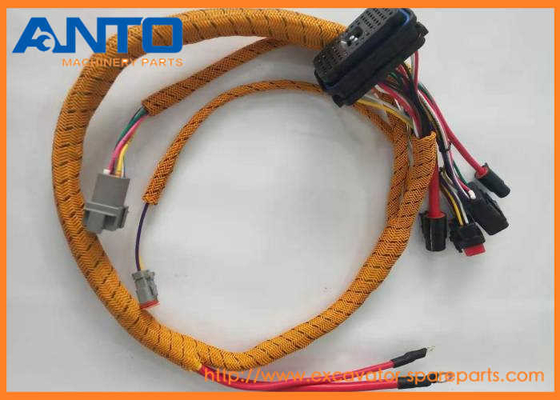

385-2664 3852664 C13 Engine Wiring Harness for 345D 349D Excavator parts

Large Image : 385-2664 3852664 C13 Engine Wiring Harness for 345D 349D Excavator parts

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	385-2664

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Electrical Spare Parts	Model:	345D 349D
Parts No.:	385-2664	Parts Name:	Engine Wire Harness
Warranty:	3/6/12 Months	Package:	Standard Box Package

385-2664 3852664 C13 Engine Wiring Harness for 345D 349D Excavator parts

Specification

Excavator spare parts name	Engine wiring harness
Equipment Model	345D 349D
Parts Category	Excavator electrical spare parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

ENGINES C13
EXCAVATORS 345D 349D

Part No	Qty	Parts name
211-6807	[1]	COVER-CONNECTOR
105-1797	[1]	MOUNT
155-2255	[1]	KIT-CONNECTING PLUG (12-PIN)
155-2270	[1]	KIT-CONNECTING PLUG (2-PIN)
155-2265	[1]	KIT-CONNECTING PLUG (8-PIN)
		(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
230-4011	[4]	PLUG AS-CONNECTOR (2-PIN)
		(EACH INCLUDES)
264-7029	[1]	SEAL-CONNECTOR
230-4013	[1]	PLUG AS-CONNECTOR (3-PIN)
264-7030	[1]	SEAL-CONNECTOR
237-0227	[2]	PLUG AS-CONNECTOR (3-PIN)
		(EACH INCLUDES)
264-7030	[1]	SEAL-CONNECTOR
264-5732	[1]	PLUG AS-CONNECTOR (120-PIN)
288-7324	[1]	SEAL-CONNECTOR
8T-8737	[93]	PLUG-SEAL
102-8802	[1]	KIT-RECEPTACLE (2-PIN)
		(RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
9X-3402	[68]	SOCKET-CONNECTOR (16-GA TO 18-GA)
		-OR-
126-1768	[68]	SOCKET-CONNECTOR (14-GA TO 16-GA)
3S-2093	[2]	STRAP-CABLE
125-7875 E		TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM)
1P-0810 B	[1]	TAPE-ELECTRICAL
155-2258	[1]	WEDGE-PLUG LOCK (12-PIN)
155-2259	[1]	WEDGE-PLUG LOCK (8-PIN)
B		USE AS REQUIRED
E		ORDER BY THE CENTIMETER

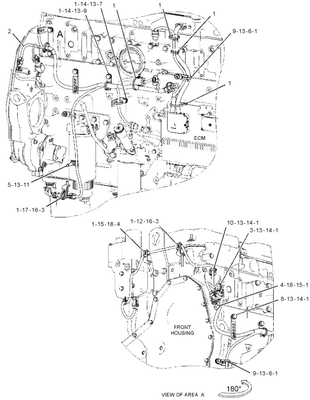

parts diagram

385-2664 3852664 C13 Engine Wiring Harness for 345D 349D Excavator parts 0

Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
