Product Details:
Payment & Shipping Terms:
|
| Category: | Electrical Spare Parts | Model: | E325C 3126B |
|---|---|---|---|

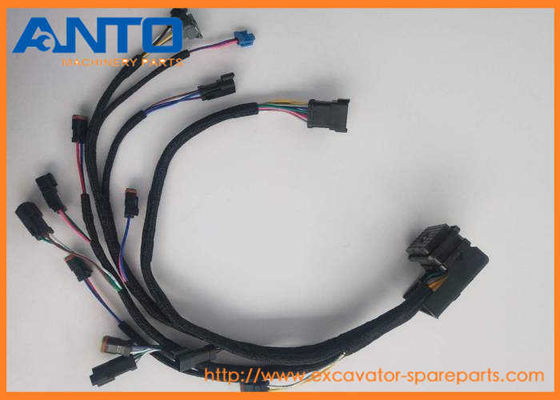

| Parts No.: | 195-7336 | Parts Name: | Engine Wire Harness |
| Warranty: | 3/6/12 Months | Package: | Standard Box Package |
| Excavator spare parts name | Engine wiring harness |
| Equipment Model | E325C 3126B |
| Parts Category | Excavator electrical spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |

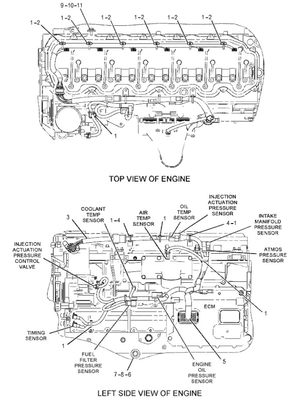

ENGINES C-7
EXCAVATORS E325C 3126B
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 126-1774 | [1] | COVER-CONNECTOR | ||
| 155-2260 | [1] | KIT-CONNECTING PLUG (3-PIN) | ||
| 155-2270 | [1] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS & WEDGE) | ||||
| 102-8802 | [3] | KIT-RECEPTACLE (2-PIN) | ||
| 102-8803 | [4] | KIT-RECEPTACLE (3-PIN) | ||
| (EACH INCLUDES RECEPTACLE, WEDGE AS, & INTERFACE SEALS) | ||||
| 9X-3401 | [26] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1767 | [26] | PIN-CONNECTOR (14-GA TO 16-GA) | ||
| 100-3320 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 126-5011 | [1] | SEAL-CONNECTOR | ||
| 111-2416 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 126-5011 | [1] | SEAL-CONNECTOR | ||
| 160-7690 | [1] | PLUG AS-CONNECTOR (70-PIN) | ||
| 159-9322 | [1] | SEAL-O-RING | ||
| 140-7339 | [1] | PLUG-CONNECTOR | ||
| 8T-8737 | [44] | PLUG-SEAL | ||
| 123-1200 | [1] | SEAL-CABLE (CABLE) | ||
| 123-1199 | [1] | SEAL-CONNECTOR | ||
| 114-8843 E | SLEEVE-PLASTIC (220-CM) | |||
| 123-1198 | [2] | SOCKET-TERMINAL | ||
| 3S-2093 | [2] | STRAP-CABLE | ||
| 305-5362 | [4] | TERMINAL AS (18-GA) | ||
| 125-7874 E | TUBE-HEAT SHRINK (5.72-MM DIA)(27-CM) | |||
| 125-7875 E | TUBE-HEAT SHRINK (7.44-MM DIA)(17-CM) | |||
| 194-5226 | [43] | WIRE AS (16-GA) | ||
| -OR- | ||||
| 194-5227 | [43] | WIRE AS (14-GA) | ||
| E | ORDER BY THE CENTIMETER | |||
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
