Product Details:
Payment & Shipping Terms:
|
| Type: | Excavator Cab | Parts Name: | Operation Station Cabin |
|---|---|---|---|
| Part Number: | 139-7092 164-0556 171-7346 185-82778 | Model No.: | 320C |
| Warranty: | 6/12 Months | Volume: | 4 CBM |
| High Light: | 330C Excavator Cab,312C Excavator Cab |
||

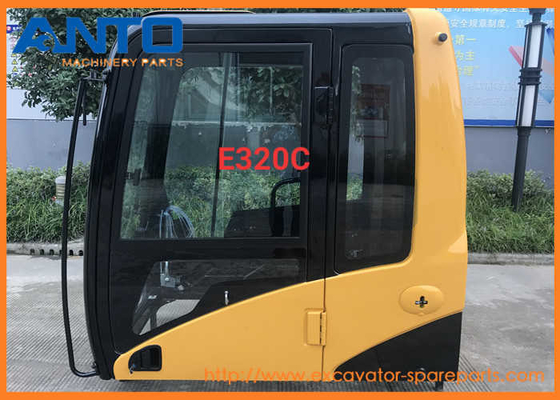

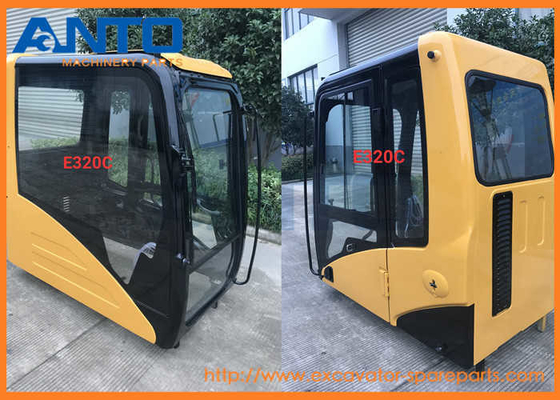

312C 315C 320C 322C 325C 330C Excavator Cab For Excavator Operator Station Cabin
Specification
| Application | C A TExcavator Operation station |
| Name | Cab |
| Parts No | 139-7092 164-0556 171-7346 185-8277 |
| Model | 312C 315C 320C 322C 325C 330C |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| 1858277 CAB GP |
| 312C L, 315C, 318C, 320C, 320C FM, 320C L, 322C, 325C, 330C, 330C L, 330C MH |
| 1761981 CAB GP |
| 320C, 325C, 330C L |
| 1893446 CAB GP |
| 320C, 325C, 330C L |
| 1717345 CAB GP |
| 320C, 325C, 330C L |
| 1717346 CAB GP |
| 320C, 325C, 330C L |
| 1613739 CAB GP |
| 320C |
| 1640555 CAB GP |
| 320C |
| 1893442 CAB GP |
| 320C |
| 1893445 CAB GP |
| 320C |
| 1640556 CAB GP |
| 320C |
| 1858278 CAB GP-INTERIOR |
| 320C |
| 1761969 CAB GP-INTERIOR |
| 320C |
| 1893445 CAB GP |
| 320C |
| 1893442 CAB GP |
| 320C |
| 1640555 CAB GP |
| 320C |
| 1613739 CAB GP |
| 320C |
| 1764965 CAB GP |
| 320B |
| 1481566 CAB GP (BASIC) |
| 350, 375 |
| 2615987 CAB GP |
| 320C |
| 2536460 CAB GP |
| 314C |
| 2371033 CAB GP |
| 320C, 325C L, 330C L |
| 1761969 CAB GP-INTERIOR |
| 320C |
| 1858278 CAB GP-INTERIOR |
| 320C |
| 1640556 CAB GP |
| 320C |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1R-5998 | [4] | LOCKWASHER | |
| 2 | 3B-4510 | [1] | LOCKWASHER | |
| 3 | 4B-4278 | [3] | WASHER (10.2X20.5X1.6-MM THK) | |
| 4 | 4I-1205 | [2] | BUMPER | |
| 5 | 4I-1206 | [2] | GUIDE | |
| 6 | 185-8196 | [1] | GROMMET (FRESH AIR) | |
| 7 | 4I-3063 | [1] | SPRING | |
| 8 | 4I-3144 | [2] | WASHER-HARD (10.2X22X3.2-MM THK) | |
| 9 | 4I-4270 | [1] | HOLDER-GLASS | |
| 10 | 4I-4392 | [3] | CLIP | |
| 11 | 5C-7793 | [1] | HOOK-COAT | |
| 12 | 6I-5470 E | SEAL (150-CM) | ||
| 13 | 6V-7636 | [4] | PIN AS-SPRING | |
| 14 | 189-3396 M | [5] | NUT (M10X1.5-THD) | |
| 15 | 099-0823 M | [3] | SCREW-MACHINE (M6X1X6-MM) | |
| 16 | 095-0755 M | [2] | SCREW-MACHINE (M4X0.7X12-MM) | |
| 17 | 105-2169 | [3] | BOLT AS | |
| 18 | 127-0580 M | [2] | SCREW-FLAT HEAD (M8X1.25X20-MM) | |
| 19 | 139-7126 | [1] | HOLDER | |
| 20 | 139-7127 | [1] | HOLDER | |
| 21 | 196-1675 | [1] | HANDLE AS | |
| 22 | 156-6599 | [1] | STRIKER | |
| 23 | 156-6617 | [1] | MIRROR | |
| 24 | 156-6618 | [1] | SUPPORT AS | |
| 25 | 161-3660 | [1] | BRACKET AS | |
| 26 | 161-3685 | [1] | ROD | |
| 27 | 161-3690 | [1] | HANDLE AS | |
| 28 | 161-3697 | [1] | GUARD | |
| 29 | 164-0523 | [1] | LEVER AS | |
| 30 | 164-0527 | [1] | ROD | |
| 31 | 164-0528 Y | [1] | LEVER GP-CAB DOOR | |
| 32 | 167-7042 | [2] | SEAL | |
| 33 | 171-7396 | [1] | COVER AS | |
| 34 | 171-7426 | [1] | CABLE AS | |
| 35 | 176-1939 | [1] | LEVER AS | |
| 9X-2044 M | [1] | SCREW-TRUSS HEAD (M6X1X16-MM) | ||
| 176-1937 | [1] | BRACKET AS | ||
| 176-1938 | [1] | LEVER | ||
| 36 | 176-1942 | [1] | COVER | |
| 37 | 176-1973 | [1] | LATCH AS | |
| 38 | 189-2864 M | [2] | SCREW-FLAT HEAD (M8X1.25X30-MM) | |
| 39 | 176-1986 | [1] | LAMP AS-DOME | |
| 201-4417 | [1] | LAMP (24-VOLT, 10-WATT) | ||
| 40 | 178-5570 | [2] | GROMMET | |
| 41 | 133-8016 | [1] | PACKING | |
| 42 | 3E-8020 M | [2] | SCREW-TRUSS HEAD (M6X1X25-MM) | |
| 43 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) | |
| 44 | 7X-0578 | [2] | WASHER-HARD (10.2X32X2.5-MM THK) | |
| 45 | 8T-4193 M | [1] | BOLT (M16X2X50-MM) | |
| 46 | 9X-2041 M | [3] | SCREW-TRUSS HEAD (M10X1.5X20-MM) | |
| 47 | 9X-2042 M | [5] | SCREW-TRUSS HEAD (M6X1X12-MM) | |
| 48 | 9X-2044 M | [5] | SCREW-TRUSS HEAD (M6X1X16-MM) | |
| 49 | 9X-2045 M | [2] | SCREW-TRUSS HEAD (M6X1X20-MM) | |
| 50 | 9X-2046 M | [4] | SCREW-TRUSS HEAD (M6X1X35-MM) | |
| 51 | 9X-8257 | [1] | WASHER (17.5X30X3.5-MM THK) | |
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
