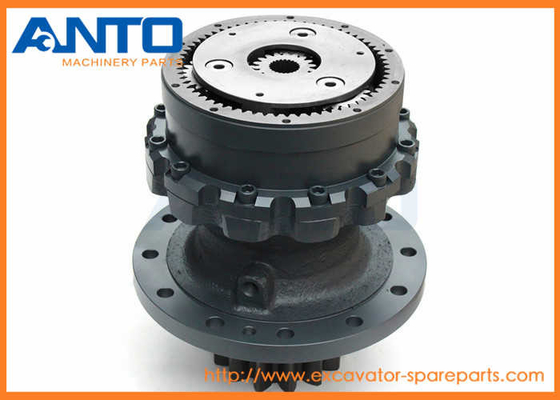

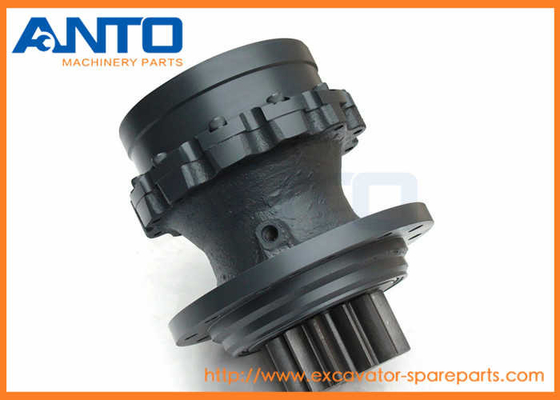

39Q6-12100 39Q6-12101 39Q6-12102 HYUNDAI R220LC-9S Excavator Swing Reduction Gear

Large Image : 39Q6-12100 39Q6-12101 39Q6-12102 HYUNDAI R220LC-9S Excavator Swing Reduction Gear

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	R220LC-9S

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	568 PCS per week

Contact Now

Detailed Product Description

Category:	Excavator Swing Gearbox	Machine Model:	R210LC9 R220LC9 R235LC9
Parts No.:	39Q6-12100 39Q6-12101 39Q6-12102	Parts Name:	Swing Reduction Gear
Warranty:	3/6 Months	Package:	Standard Export Carton
Highlight:	R220LC-9S Excavator Swing Gearbox , 39Q6-12102 Excavator Swing Gearbox

39Q6-12100 39Q6-12101 39Q6-12102 HYUNDAI R220LC-9S Excavator Swing Reduction Gear

Spec Sheet

spare parts name	Swing reduction gear
Equipment Model	R210LC9 R220LC9 R235LC9
Parts Category	Excavator reduction gear
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R210W-9 R210W9A R210W9MH R210W9S Hyundai

More swing drive parts for HYUNDAI machines

39Q6-10161 SWING MOTOR UNIT

R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S

39Q6-12101 SWING REDUCTION GEAR

R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A

81Q6-01080BG SWING BEARING

R215LC7, RD210-7, RD210-7V, RD220-7, RD220LC9

31Q6-10120AR SWING MOTOR

R235LCR9

31Q6-10161AR SWING REDUCTION GEAR

R235LCR9

81Q6-00021BG SWING BEARING

RD210-7V, RD220-7, RD220LC9

39Q6-12102 SWING REDUCTION GEAR

HW210, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RD210-7

31Q6-10151 SWING MOTOR ASSY

R210LC9

31Q6-10151SG8 SWING MOTOR ASSY

R210LC9

39Q6-10152 SWING MOTOR ASSY

R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A

38Q6-10152 SWING MOTOR ASSY

R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A

38Q6-10172 SWING MOTOR ASSY

R210W-9, R210W9MH, R210W9S

39Q6-11100 SWING MOTOR

R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9

39Q6-10150 SWING MOTOR ASSY

R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A

31Q6-10150 SWING MOTOR ASSY

R210LC9

31Q5-12160 SWING MOTOR UNIT

R170W9, R170W9S, R180W9A, R180W9S

31Q4-11132 SWING MOTOR UNIT

R140W9, R140W9A, R140W9S

31Q4-10170 SWING MOTOR UNIT

R140W9, R140W9A, R140W9S

31Q4-12121 SWING MOTOR ASSY

R140W9, R140W9S

31Q4-11142 SWING REDUCTION GEAR

R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9

31Q4-11141 SWING REDUCTION GEAR

R140LC9, R140LC9S, R140W9, R140W9S, R145CR9, RD140LC9

31Q4-11131 SWING MOTOR UNIT

R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9

81QE-01021 SWING BEARING

R1200-9

31QE-10141 SWING REDUCTION GEAR

R1200-9

38Q6-10150 SWING MOTOR

R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R235LCR9, R235LCR9A, RB220LC9S

38Q6-11100 SWING MOTOR

R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9

81Q6-01080 SWING BEARING

HX220L, R210LC9, R210LC9BH, R220LC9A, RB220LC9S

31Q6-10141 SWING REDUCTION GEAR

HX160L, HX180L, R160LC9, R160LC9A, R160LC9S, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9S, R220LC9A, R220NLC9A, RB160LC9S, ...

31Q6-10161 SWING REDUCTION GEAR

R235LCR9, R235LCR9A

31N7-10180 SWING MOTOR ASSY

R250LC7, R250LC7A

31N7-11160 SWING MOTOR

R250LC7, R250LC7A

81EN-00053BG SWING BEARING

R250LC7, R250LC7A

31Q7-10160 SWING MOTOR

R250LC9, R250LC9A, R260LC9S, RB260LC9S

81EN-00053GG SWING BEARING

HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S

31Q8-10200 SWING MOTOR ASSY

R290LC9, R300LC9A, R300LC9S, R300LC9SH

31Q8-10170 SWING MOTOR

R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	SWING MOTOR ASSY	SEE 4115
*-2.	39Q6-12100	[1]	SWING REDUCTION GEAR	HYMS
*-2.	39Q6-12101	[1]	SWING REDUCTION GEAR	HYMS
*-2.	39Q6-12102	[1]	SWING REDUCTION GEAR	HYMS
1	39Q6-12110	[1]	GEAR-RING
2	39Q6-12121	[1]	SHAFT-DRIVE
3	39Q6-12130	[1]	BEARING-TAPER.MAIN
4	39Q6-12140	[1]	BEARING-TAPER
5	39Q6-12150	[1]	NUT-RING
6	39Q6-12161	[1]	PLATE-LOCK
7	S017-120166	[4]	BOLT-HEX
8	39Q6-12171	[1]	CASING
8	39Q6-12172	[1]	CASING
9	S109-100306	[10]	BOLT-SOCKET
10	39Q6-12190	[1]	CARRIER 2
11	39Q6-12200	[3]	GEAR-PLANETARY 2
12	39Q6-12210	[6]	BEARING-NEEDLE 2
13	39Q6-12220	[6]	WASHER-THRUST 2
14	39Q6-12230	[3]	PIN-CARRIER 2
15	S472-800364	[3]	PIN-SPRING
16	39Q6-12240	[1]	GEAR-SUN 2
17	39Q6-12260	[1]	CARRIER 1
18	39Q6-12271	[3]	GEAR-PLANETARY 1
19	39Q6-12280	[3]	BEARING-NEEDLE 1
20	39Q6-12290	[3]	WASHER-THRUST 1,UPP
21	39Q6-12300	[3]	WASHER-THRUST 1,LOW
22	39Q6-12310	[3]	PIN-CARRIER 1
23	S472-600364	[3]	PIN-SPRING
24	39Q6-12320	[1]	GEAR-SUN 1
25	39Q6-12330	[2]	PLATE-THRUST
26	39Q6-12340	[1]	SLEEVE
27	S631-120001	[1]	O-RING
28	39Q6-12350	[1]	SEAL-OIL
29	39Q6-41450	[2]	PIN-PARALLEL
30	S109-16045D	[12]	BOLT-SOCKET
31	39Q6-12360	[1]	NAME PLATE
31	39Q6-12361	[1]	NAME PLATE
31	39Q6-12362	[1]	NAME PLATE
32	39Q6-41800	[2]	RIVET
33	P220-430204	[1]	PLUG-HEX
*-1.	@	[1]	SWING MOTOR UNIT	SEE 4115
K1.	39Q6-12180	[1]	CARRIER ASSY KIT 1	SEE ILLUST
K2.	39Q6-12250	[1]	CARRIER ASSY KIT 2	SEE ILLUST

39Q6-12100 39Q6-12101 39Q6-12102 HYUNDAI R220LC-9S Excavator Swing Reduction Gear 0

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
