Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Swing Gearbox Parts | Machine Model: | 320C 320D 320E 323D 320D2 323D2 |
|---|---|---|---|
| Parts No.: | 148-4637 1484637 | Parts Name: | Planet Carrier NO.2 |
| Warranty: | 6/12 Months | Package: | Standard Export Carton |
| Highlight: | 1484637 Planetary Carrier No.2,Excavator 320E Planetary Carrier No.2 |
||

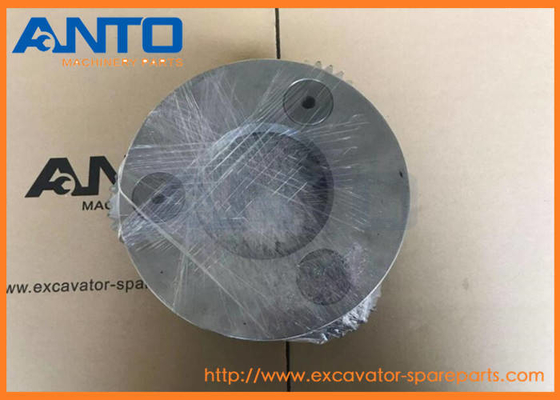

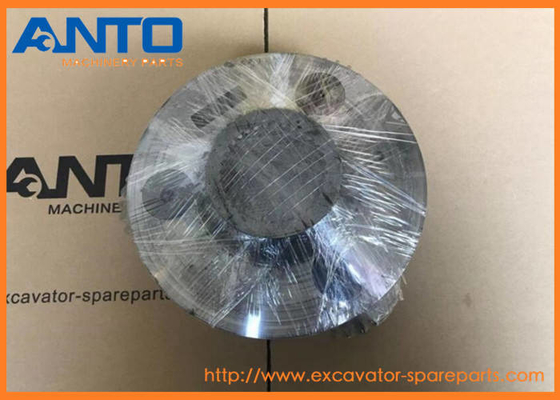

| Product name | Swing gearbox planet carrier no.2 |
| Part number | 148-4637 1484637 |
| Model | 320C 320D 320E 323D 320D2 323D2 |
| Category group | Excavator Swing Reduction Gear Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
EXCAVATOR 318C 318E L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321C 321D LCR 323D L 323D LN 323D SA 323D2 L 323E L
MOBILE HYD POWER UNIT 323D L 323D LN Caterpillar
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 1912578 CARRIER-PLANETARY |
| 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320... |
| 1695599 CARRIER-PLANETARY |
| 320C, 320C FM, 322C, 322C FM, 325C, 325C FM |
| 1912571 CARRIER-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32... |
| 1912686 CARRIER AS |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 325C, 325C FM, 325D, 325D L, 325D MH, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS |
| 2276119 CARRIER-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 322C, 322C FM, 323D LN, 324D, 324D L, 324D LN, 325C, 325D, 325D L, 325D MH |
| 2676799 CARRIER-PLANETARY |
| 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS |
| 1912578 CARRIER-PLANETARY |
| 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320... |
| 3079371 CARRIER |
| 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D LCR |
| 1655863 CARRIER |
| 311C |
| 2460151 CARRIER AS |
| 304, 305 |
| 2307020 CARRIER AS |
| 304, 305 |
| 8U9510 CARRIER-PLANETARY |
| M318C |
| 2791320 CARRIER |
| 304C CR, 305.5, 305.5D, 305.5E, 305C CR, 306 |
| 3756310 CARRIER-PLANETARY |
| M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH |
| 3327484 CARRIER |
| 311D LRR, 311F LRR, 312C, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 314D CR, 314D LCR, 314E CR, 314E LCR |
| 2241670 CARRIER |
| 312C |
| 2671799 CARRIER AS |
| 303 |
| 2304283 CARRIER AS |
| 303, 303.5 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 2 | 094-1509 | [3] | SHAFT-PLANETARY | |
| 3 | 148-4733 | [3] | GEAR-PLANETARY (26-TEETH) | |
| 4 | 114-1581 | [1] | SPACER (57.5X74X6-MM THK) | |
| 5 | 148-4732 | [1] | GEAR-SUN (20-TEETH) | |
| 6 | 093-1729 | [2] | RING-RETAINING | |
| 7 | 148-4632 | [1] | GEAR-SUN (23-TEETH) | |
| 8 | 191-2578 | [1] | CARRIER-PLANETARY | |
| 9 | 7Y-1434 | [1] | SPACER (40X69.5X6-MM THK) | |
| 10 | 148-4637 | [1] | CARRIER-PLANETARY | |
| 11 | 148-4640 | [1] | RING-RETAINING | |
| 12 | 148-4643 | [1] | BEARING | |
| 13 | 095-1022 | [1] | BEARING-ROLLER | |
| 14 | 148-4642 | [1] | SEAL-O-RING | |
| 15 | 227-6228 | [1] | CAGE | |
| 16 | 453-3447 M | [6] | BOLT (M12X1.75X40-MM) | |
| 17 | 451-2182 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 18 | 199-4561 | [2] | SEAL-LIP TYPE | |
| 19 | 148-4636 | [1] | SHAFT-PINION | |
| 20 | 148-4638 | [1] | HOUSING | |
| 21 | 3K-0360 | [1] | SEAL-O-RING | |
| 22 | 6V-7238 | [1] | VALVE-SHUTOFF (SWING DRIVE) | |
| 23 | 148-4634 | [3] | SHAFT-PLANETARY | |
| 24 | 095-0891 | [3] | PIN-SPRING | |
| 25 | 148-4635 | [1] | GEAR-RING (73-TEETH) | |
| 26 | 148-4633 | [3] | GEAR-PLANETARY (25-TEETH) | |
| 27 | 7Y-0252 | [6] | BEARING AS-ROLLER | |
| 28 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 29 | 095-0886 | [3] | PIN-SPRING | |
| 30 | 094-1516 | [3] | BEARING-ROLLER | |
| 31 | 171-9383 | [1] | SPACER | |
| 1U-8846 BF | SEALANT-GASKET | |||
| B | USE AS REQUIRED | |||
| F | NOT SHOWN | |||
| M | METRIC PART |
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
